Kingtech TFT LCD display We have over 200 models of standard display modulefrom small to middle size TFT LCD module . Such as some classic model for 1.44 inch 180×128 resolution , 1.54 inch 240×240 / 320×320 resolution , 1.77 inch 128×160 resolution , 2.0 inch 240×320 / 176×220 resolution , 2.4 inch 320×240 resolution
Kingtech professional TFT touch panel OEM/ODM expert Since 2003 We have our own LCD panel cutting factory to cut mother glass into small sizes. You see, when original manufacturer produce LCD panels, it is big mother glass. Our cutting factory help to cut into small pieces like 4.3 inch, 3.5 inch. We have our own LCD
Kingtech TFT LCD — PV033400AR17A Resolution : 320*320 Outline : 66.20*69.30*2.66 AA : Diameter 60mm Brightness : 750nits Interface : MIPI Driver IC : ST7796SI The picture as bleow : This model with rare size ( The AA size is round size ) very popular in the market . Mainly application for Thermostat . If you want to l
Kingtech TFT LCD display –PV028000YX50D Resolution : 240*320 Interface : 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit MPU 6-/16-/18-bit RGB IC : ILI9341 Outline : 50.0*69.2*2.5 AA : 57.6*43.2 The picture as below : This model is the classic 2.8 inch lcd display in the market . And it with large requirement . Main
Kingtech TFT LCD — PV0241F2CZ0 Resolution : 240×320 View angle : IPS (All view angle) Interface : 16-bits MPU Driver IC : ILI9341V PIN : 34 The picture as below : This model mainly application for handheld device . It with Full view angle , better display effect . Welcome to contact us to learn more ! Summer Wei 2nd F
Kingtech TFT LCD display –DW0240A2BZ Resolution : 240×320 Interface : 8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4 Wire SPI. Outline size : 60.26*42.72*2.5 AA : 48.96*36.72 IC : ILI9341 This is our customized 2.4 ” TFT LCD display , with high quality , stable supply , support Small MOQ . It with Classic size and struc
Kingtech TFT LCD display — PV02004LZR35G Resolution : 240×320 Outsize : 35.9*51.66*2.75 AA : 30.60*40.80 Interface : 4SPI+16-bit RGB interface IC : ST7789V Brightness : 1000nits It support Sunlight Resdable .Mainly application for outdoor handheld device . If you want to learn more , please kindly contact us to learn
Kingtech reliablity test . For some potential problem, the regular test can not find. It may happen after customer use the products for some time So, for every new project, when we do trial order, we always produce extra quantity to do reliablity test. This can help to make sure that our material and production process

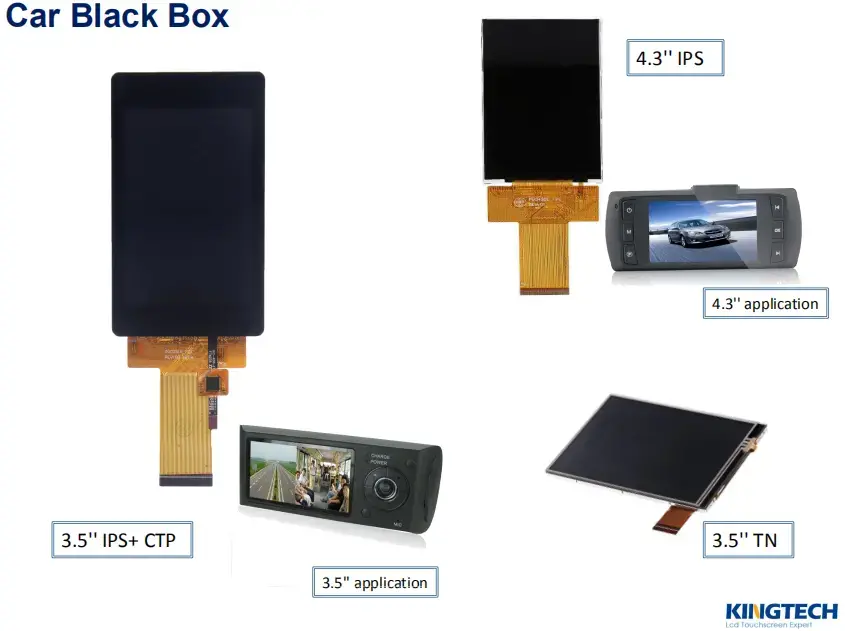

About Kingtech . Kingtech Group Co.Ltd has been specializing in TFT LCD since 2003. We have good resource; strong R & D team and high level managment production base with ISO9001, ISO14001 and TS16949/ IATF16949 3.5 inch and 4.3 inch lcd display for Car Black Box . Size Model No Resolution Outline(mm) AA(mm) Brigh
