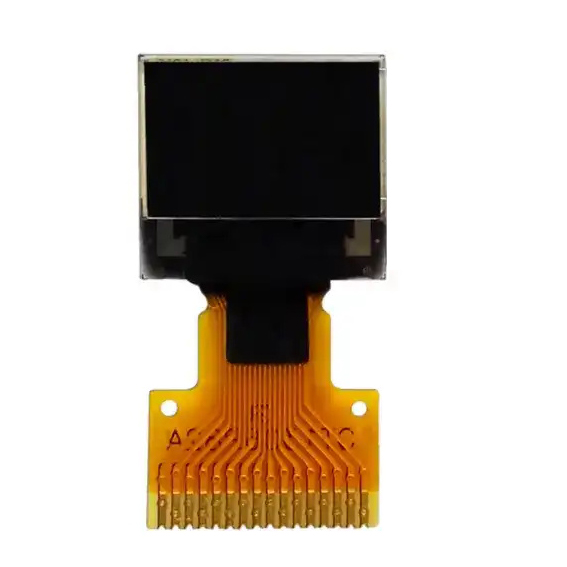

0.42 inch Monochrome 72×40 resolution oled micro display

Main Features

• High-Quality OLED Display: Sharp, high-contrast monochrome white output

• Compact Size: Only 12.0 × 11.0 × 1.25 mm – perfect for space-sensitive applications

• Low Power Design: 1.65V to 3.3V supply voltage; internal DC/DC supported

• Fast Refresh Rate: Up to 180 FPS, ideal for dynamic displays

• Wide Operating Temperature: From -30°C to +70°C, suitable for industrial use

• Driver IC Compatibility: Supports SSD1306 and SSD1315, widely used in embedded systems

• Dual Interface Options: Works with 4-wire SPI or I2C communication protocols

• Stable Soldering Connection: For secure and permanent integration

Technical Specifications

• Display Size: 0.42 inch OLED

• Resolution: 72 × 40 pixels

• Display Color: Monochrome (White)

• Pixel Size: 0.108 × 0.11 mm

• Pixel Pitch: 0.128 × 0.13 mm

• Active Area: 9.196 × 5.18 mm

• Panel Size: 12.0 × 11.0 × 1.25 mm

• Duty Cycle: 1/40

• Frame Rate: 180 frames/sec

• Brightness: 120 cd/m² (min)

• Power Supply: 1.65V ~ 3.3V

• Driving Voltage (with internal DC/DC): 3.5V ~ 4.2V

• External Power Option: 9V

• Interface Type: 4-wire SPI / I2C

• Driver IC: SSD1306 or SSD1315

• Connection: Soldering

• Operating Temperature: -30°C ~ 70°C

• Storage Temperature: -40°C ~ 80°C

• Pin Count: 16
