0.95 inch AMOLED
0.95 inch AMOLED
0.95 inch AMOLED
0.95 inch AMOLED

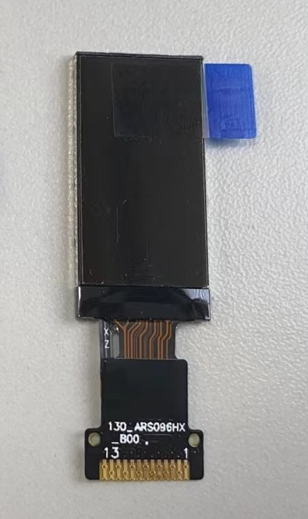

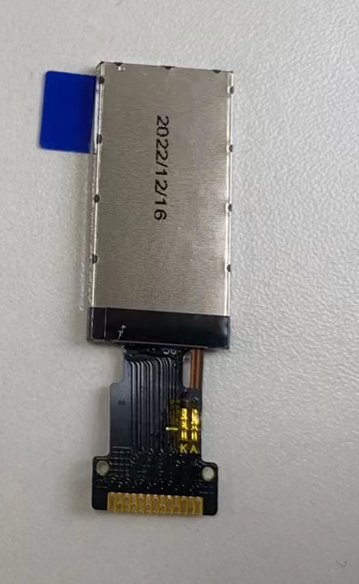

0.95 inch 120X240 resolution AMOLED display

Item 0.95 inch IPS 120×240 SPI  AMOLED display
Model No. PV09500A0120A
Resolution 120*240

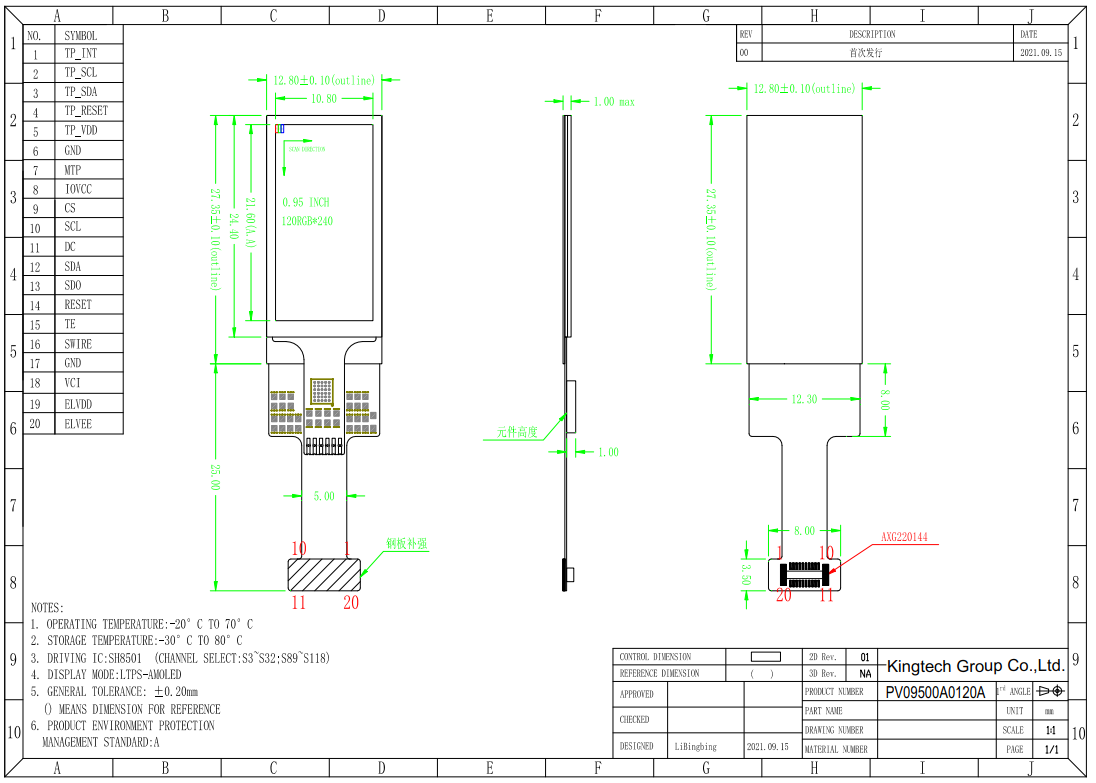

Outline Dimension (mm) 16.32*29.76*1.68
Active Area (mm) 13.82*23.04
Viewing Angle IPS
Brightness 450nits
Interface SPI
Backlight /
Driving IC SH8501
PIN No. 20
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, smart watch

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. AMOLED
  2. 120X240
  3. Stable supply
  4. IPS / Wide viewing angle / All viewing angle
  5. SPI interface
  6. 450nits brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial, smart watch
