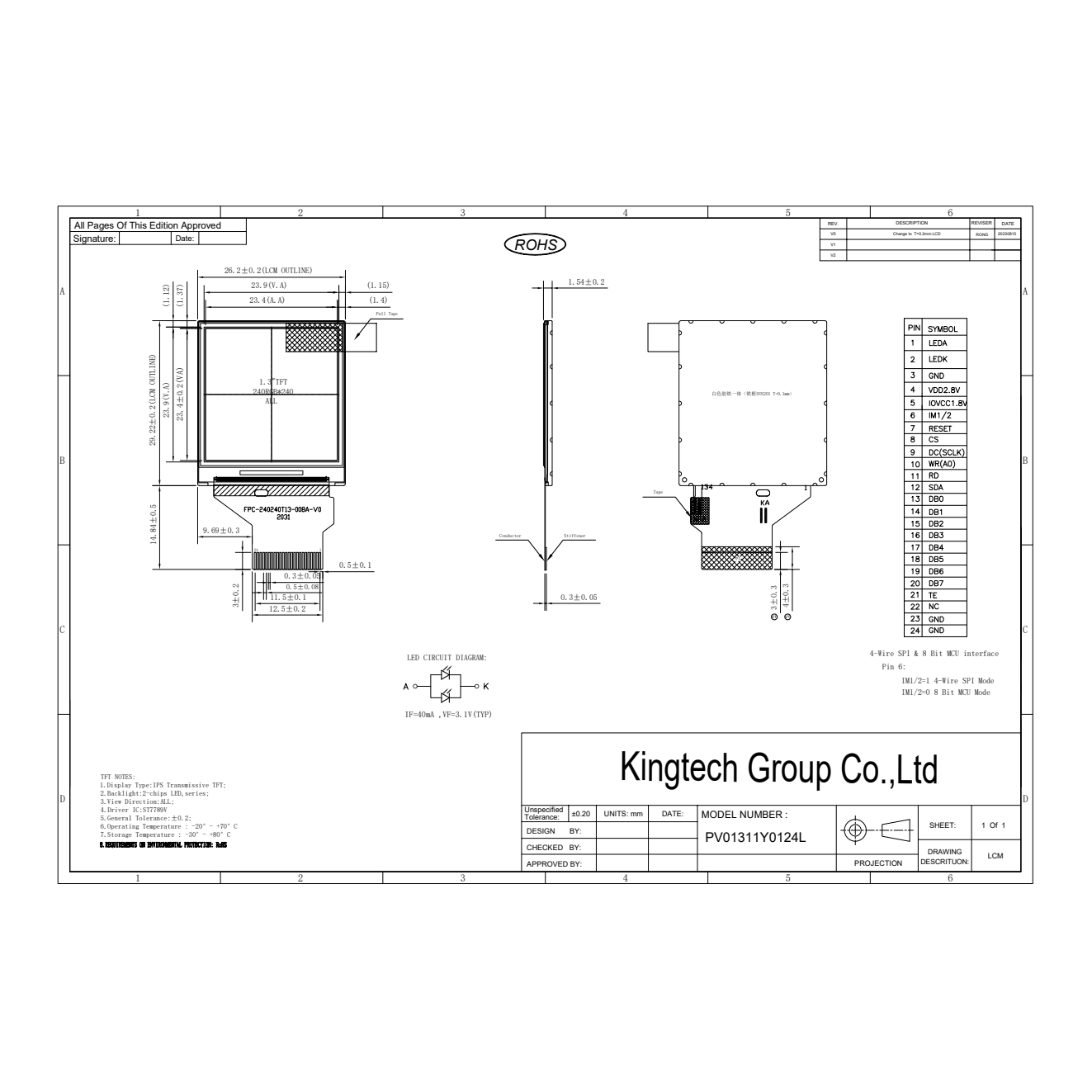

1.3 inch 240×240 resolution TFT LCD display module
| Item | 1.3 inch 240×240 square LCD display |
| Model No. | PV01311Y0124L |
| Resolution | 240*240 |
| Outline Dimension (mm) | 26.20*29.22*1.54 |
| Active Area (mm) | 23.40*23.40 |
| Viewing Angle | IPS |
| Brightness | 200nits |
| Interface | 4-Wire SPI & 8 Bit MCU interface |
| Backlight | 1*2 LED |
| Driving IC | ST7789V |
| PIN No. | 24 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, Hand-held device, Industrial, Smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD Ddisplay
- 240×240
- Stable supply
- IPS/Full/Wide/All viewing angle
- 4-Wire SPI & 8 Bit MCU interface
- Round small display
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
