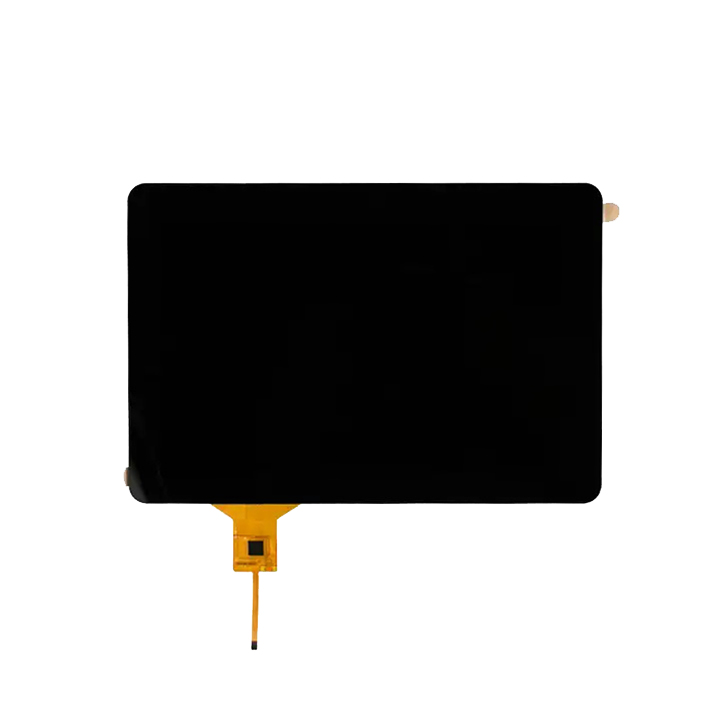

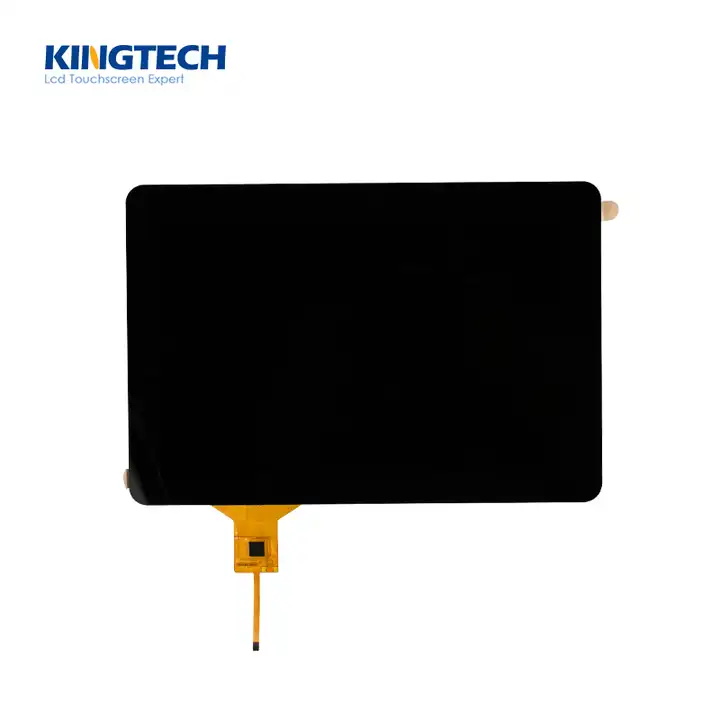

10.1 inch 1280*720 TFT display
| Item | 10.1inch IPS 1280*720 TFT display |
| Model No. | PV101029S0140X |
| Resolution | 1280*720 |

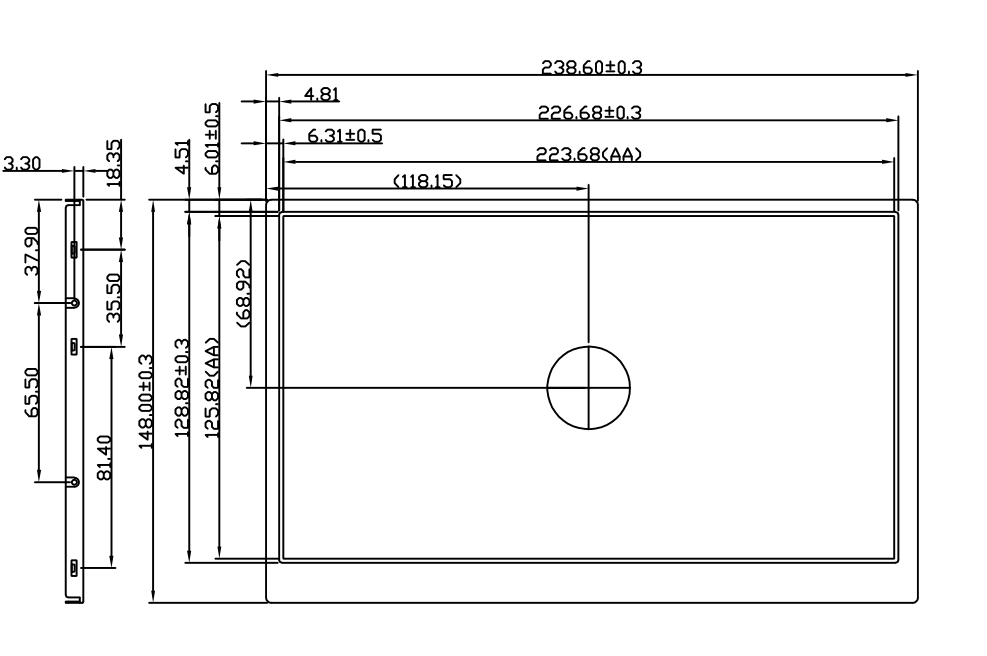

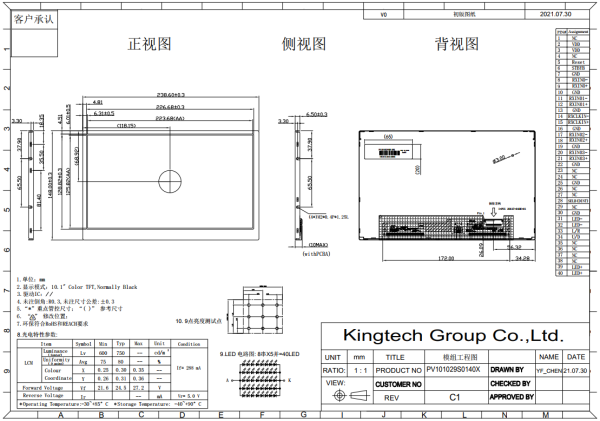

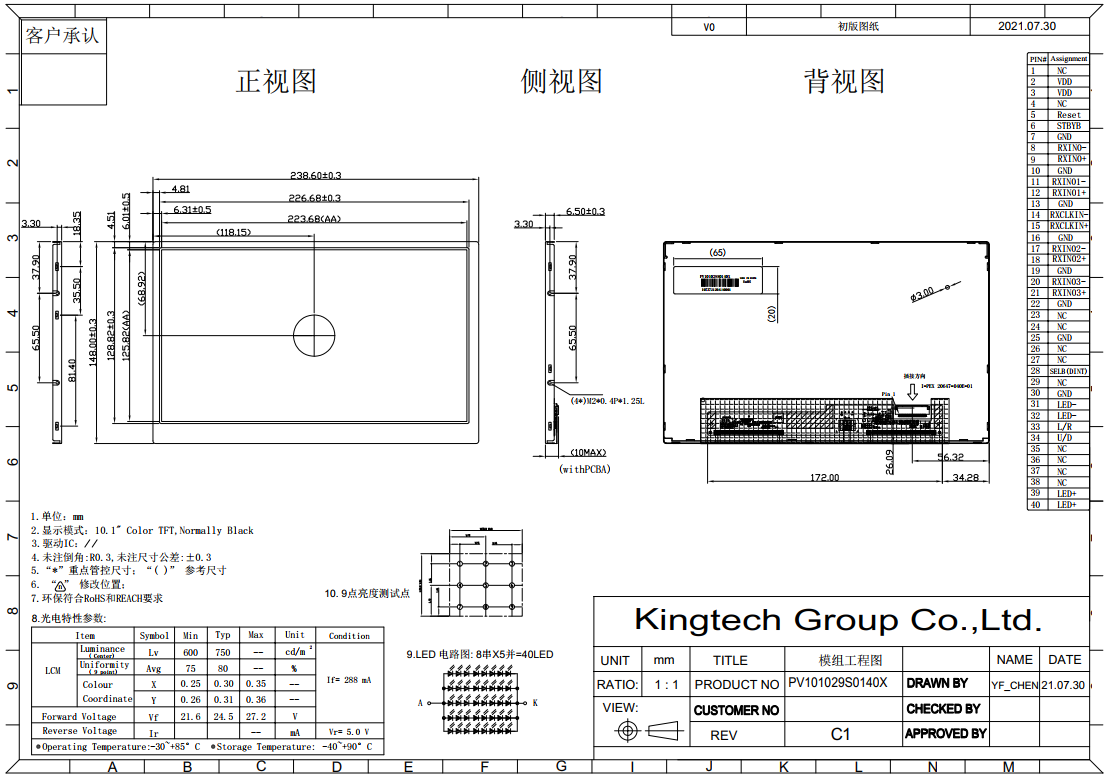

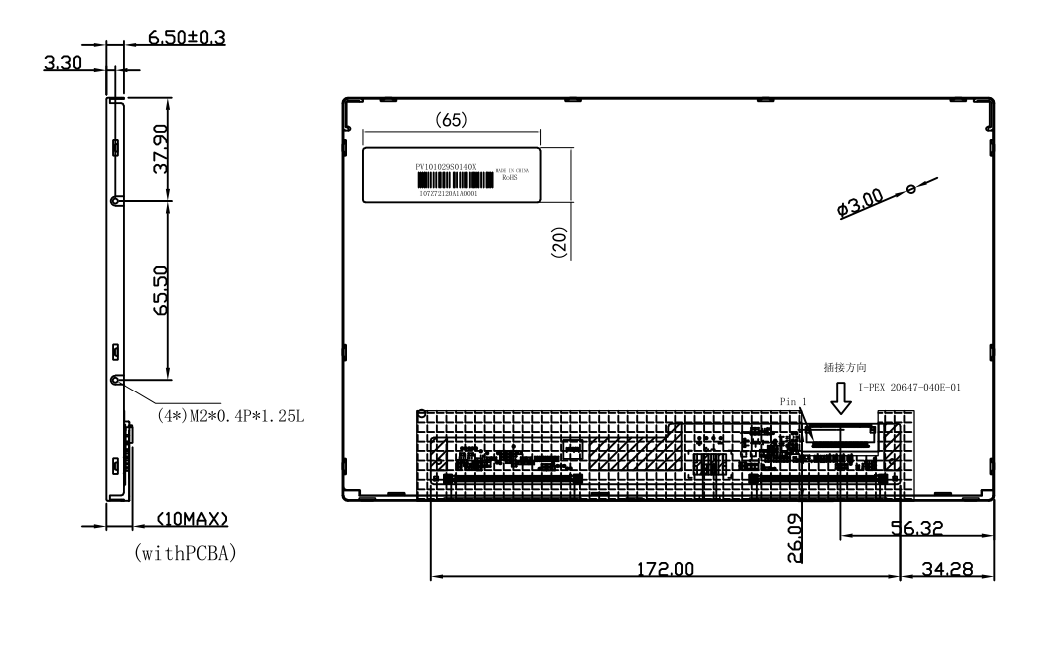

| Outline Dimension (mm) | 238.60*158.00*6.5 |
| Active Area (mm) | 223.68*125.82 |
| Viewing Angle | All |
| Brightness | 750nits |
| Interface | LVDS |
| Backlight | 8*5LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~90C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
For product pricing,customization,or other inquiries:
Share to:
- 1 inchTFT display
- 1280*720
- Stable supply
- All/Full/IPS/Wide viewing angle
- LVDSinterface
- Wide operating temperature/-30~85C
- 750nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
