10.1-Inch 1280*800 1000nits High-Brightness TFT Display

Product Features

High brightness of 1000 nits, ensuring clear visibility in strong light environments.
10.1-inch size, suitable for various application scenarios.
1280*800 resolution, delivering high-definition image quality.
Wide viewing angle, suitable for multi-angle viewing.

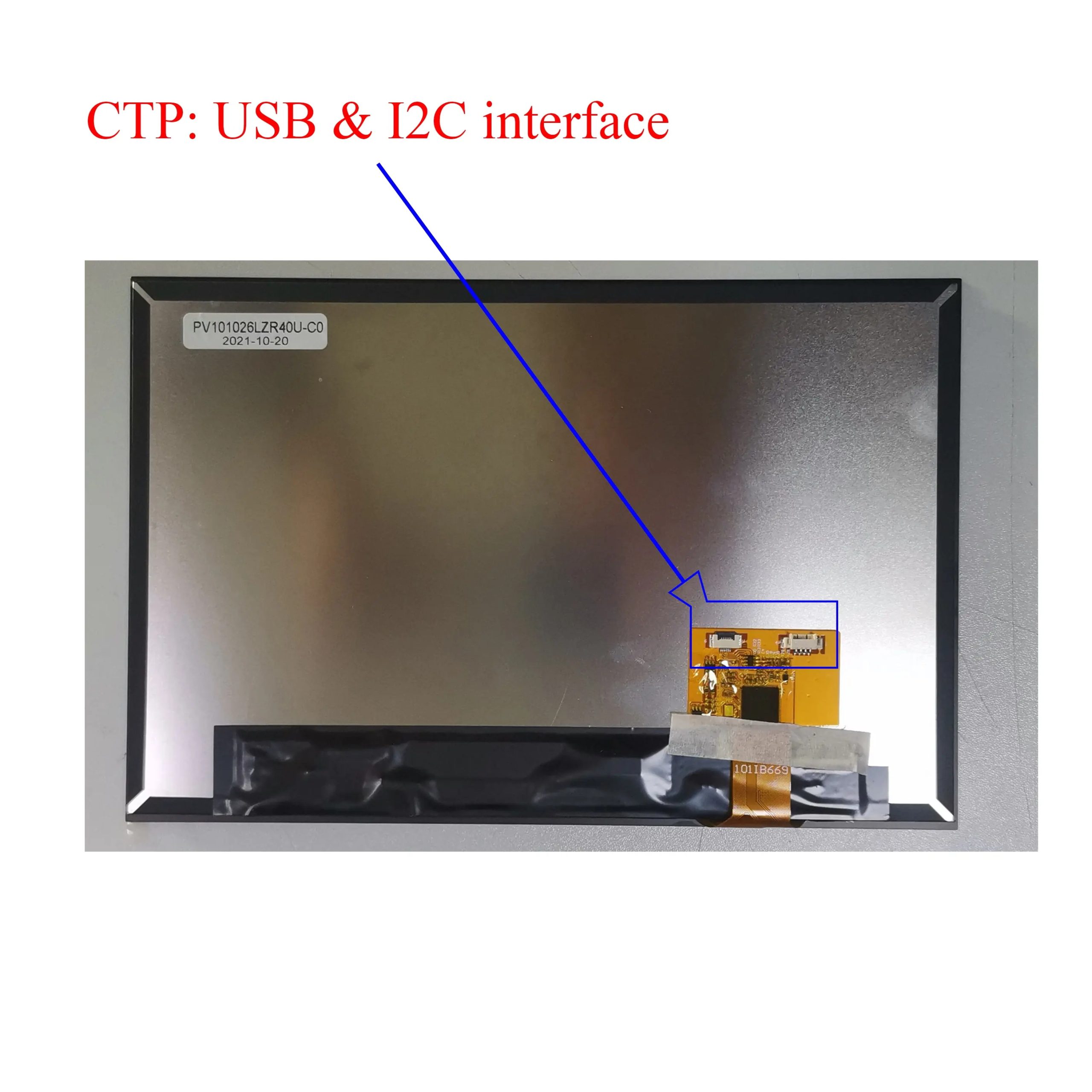

Supports RTP/CTP touch panels, offering different touch options based on requirements.
LVDS interface, providing stable data transmission and strong compatibility.
Wide temperature tolerance, with an operating temperature range of -30°C to 80°C and storage temperature range of -30°C to 85°C.

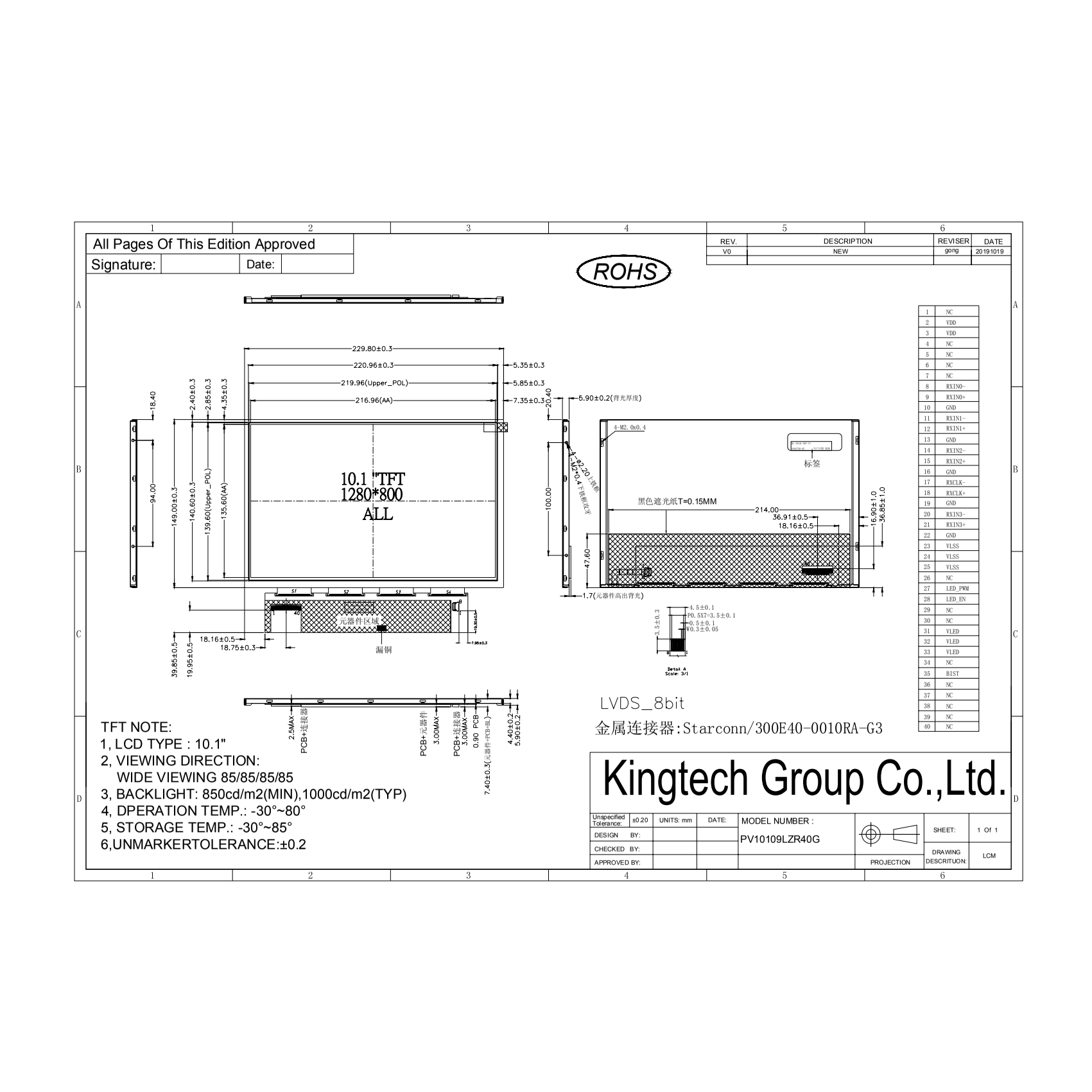

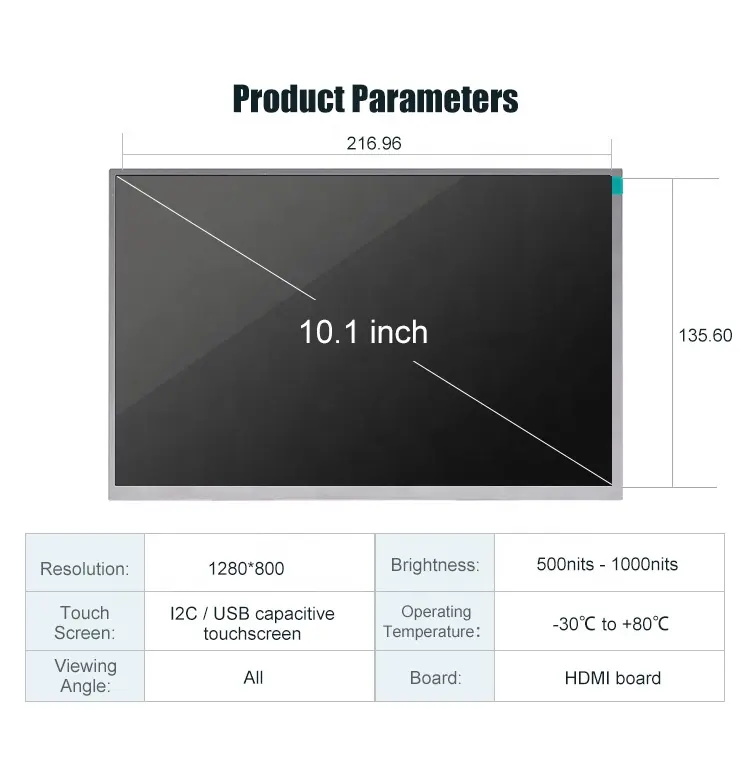

Compact and slim design, with an outline dimension of 229.801495.95mm and an active area (AA) of 216.96*135.60mm.
40PIN interface design, making it easy to integrate into various systems.

For product pricing,customization,or other inquiries:

Share to:

Description

Product Overview

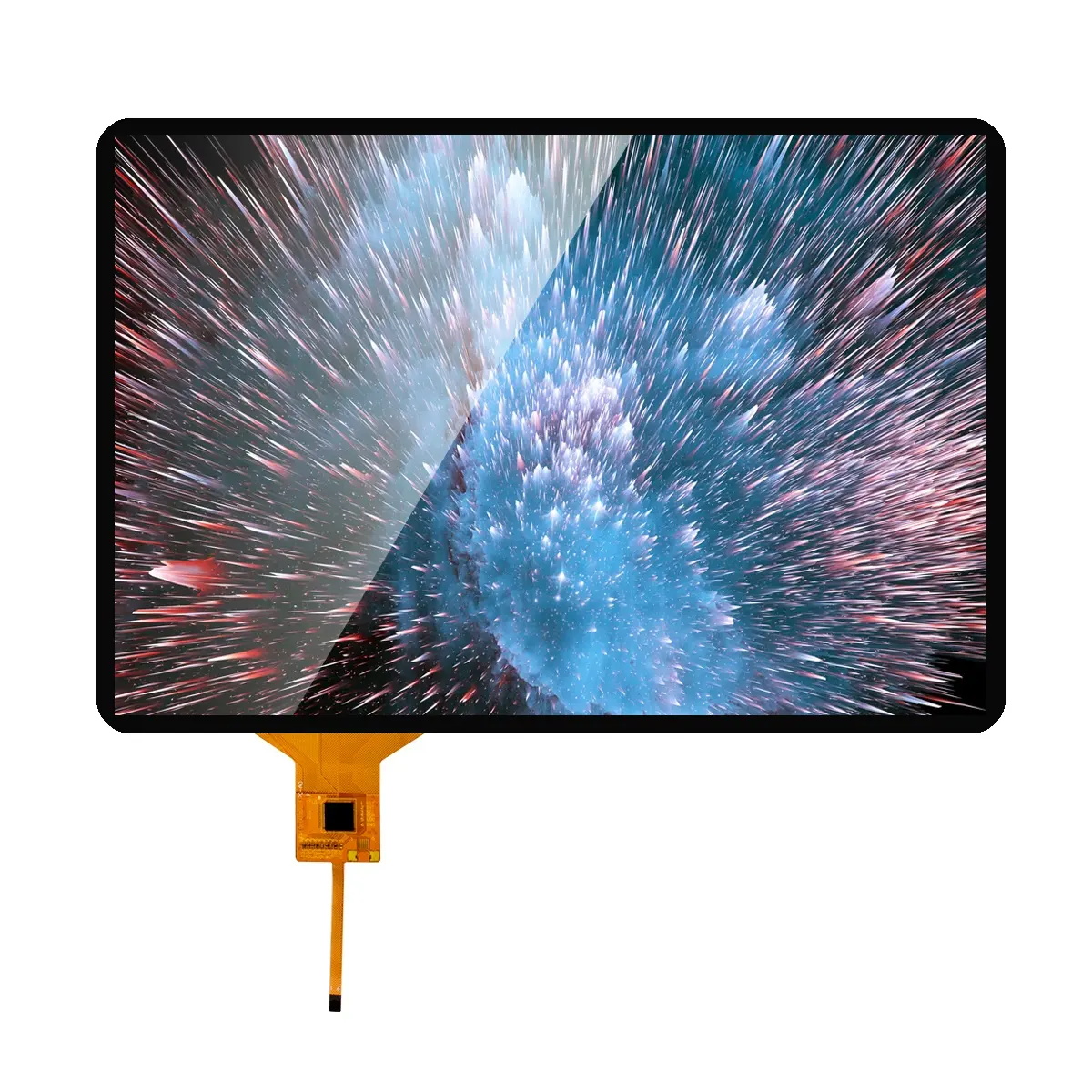

The PV10109LZR40G is a 10.1-inch TFT LCD display with a resolution of 1280*800 and a brightness of up to 1000 nits, making it suitable for outdoor and high-brightness environments. This display adopts an LVDS interface, supports RTP (Resistive Touch Panel) or CTP (Capacitive Touch Panel), and features a wide viewing angle and transmissive display mode, ensuring an excellent visual experience.

Application Fields

This product is suitable for a variety of industrial and commercial display applications, including but not limited to:

Outdoor devices (self-service terminals, information kiosks, advertising displays, etc.)
Industrial control (PLC touch screens, industrial inspection equipment)
Medical displays (diagnostic equipment, surgical displays)
Automotive displays (navigation systems, central control screens)
Smart home devices (video doorbells, smart panels)
Consumer electronics (tablets, entertainment devices)
