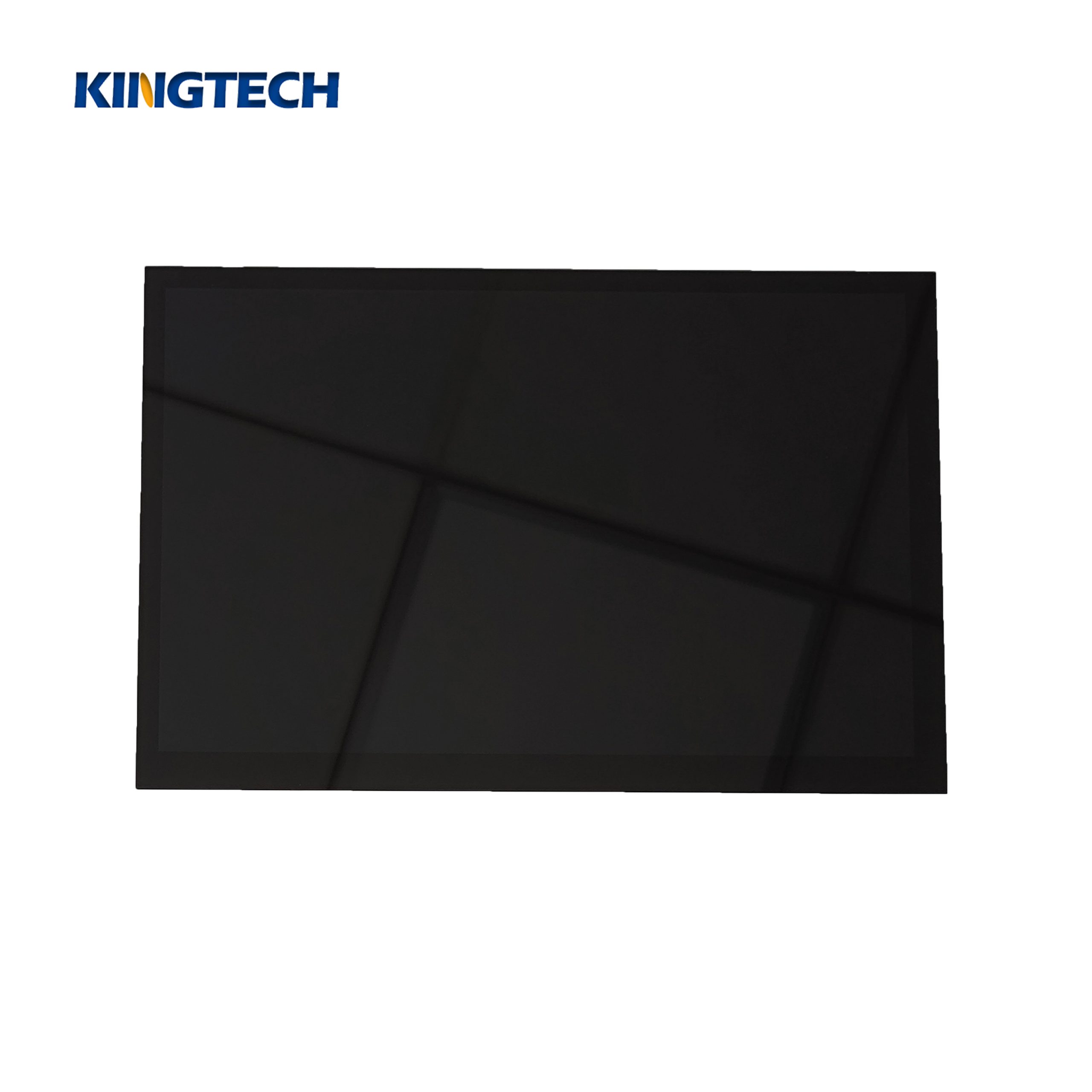

Kingtech 10.1″ HMI LCD Display | 1024×768 | 1000 nits | LVDS | Capacitive Touch

Key Features:

10.1-inch high-brightness TFT LCD (1000 nits) – ensures excellent visibility outdoors and in high-light conditions.

1024×768 resolution – high definition for industrial control and display applications.

Full-angle viewing – provides consistent image quality from any angle

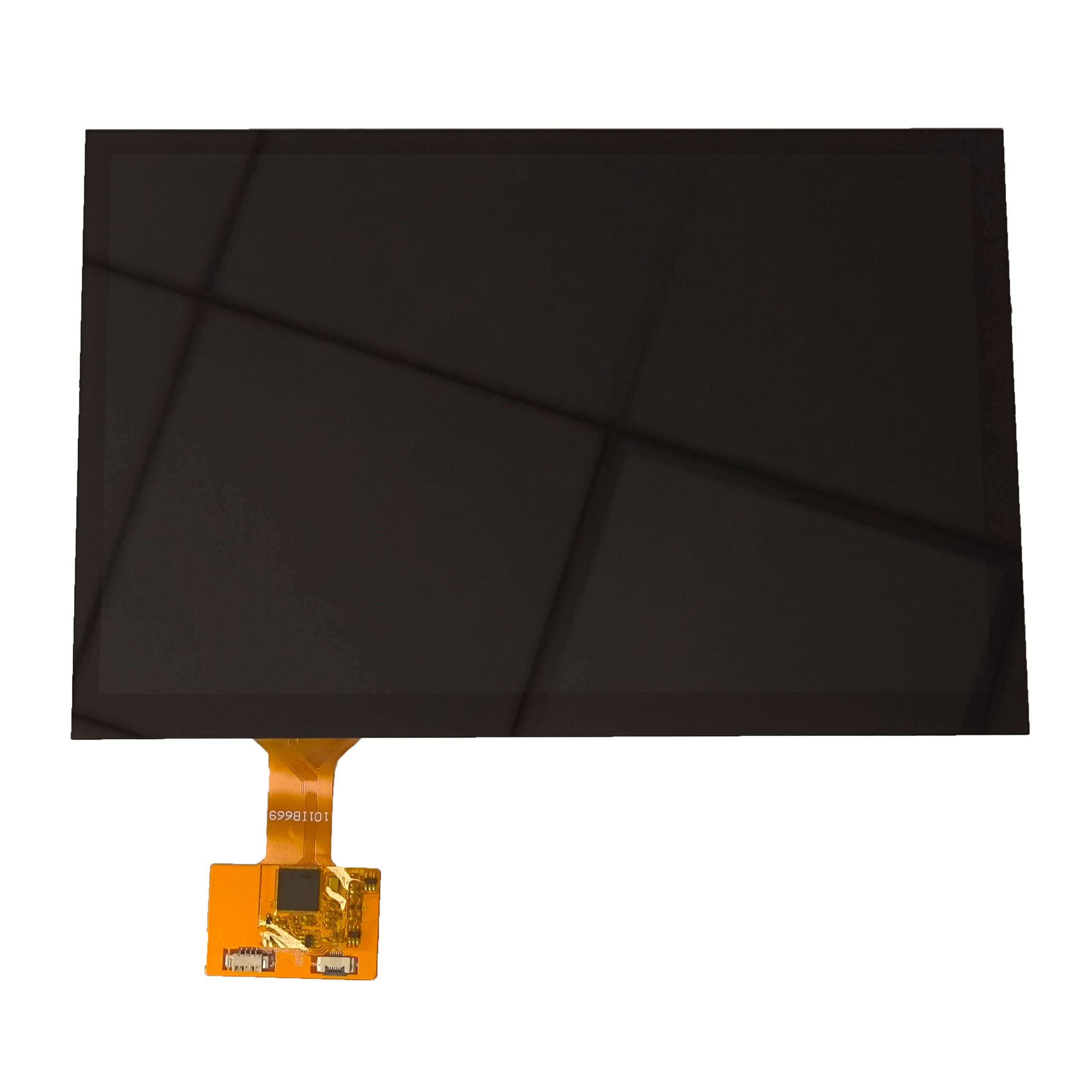

Capacitive touch screen – supports single-point and swipe touch gestures with high transparency (>90%).

LVDS interface – stable and efficient signal transmission for industrial use.

Rugged and reliable – withstands extreme -20°C to +70°C operating and -30°C to +80°C storage conditions

Customizable design —— Support glass cover + capacitive touch lamination according to your drawing specifications.

For product pricing,customization,or other inquiries:

Share to:

Description

Product Overview

The PV10109LZR40G is a 10.1-inch TFT LCD display with a resolution of 1280*800 and a brightness of up to 1000 nits, making it suitable for outdoor and high-brightness environments. This display adopts an LVDS interface, supports RTP (Resistive Touch Panel) or CTP (Capacitive Touch Panel), and features a wide viewing angle and transmissive display mode, ensuring an excellent visual experience.

。

Application Fields

This product is suitable for a variety of industrial and commercial display applications, including but not limited to:

Outdoor devices (self-service terminals, information kiosks, advertising displays, etc.)
Industrial control (PLC touch screens, industrial inspection equipment)
Medical displays (diagnostic equipment, surgical displays)
Automotive displays (navigation systems, central control screens)
Smart home devices (video doorbells, smart panels)
Consumer electronics (tablets, entertainment devices)
