10.1 inch 1280×720 LVDS interface IPS landscape TFT LCD display
| Item | 10.1 inch ips1280x720 display |
| Model No | PV101029S0140X |
| Resolution | 1280 x 720 |
| Outline Dimension | 238.60*158.00*6.5 |
| Active Area(mm) | 223.68*125.82 |
| Interface | LVDS Interface |
| Viewing Angle | All |
| Brightness | 750 nits |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -30℃ to +85℃ |
| Storage Temperature | -40℃ to +90℃ |
| Board | HDMI board |
For product pricing,customization,or other inquiries:
Share to:
10.1 inch1280x720 wide temperature 720nits LVDS IPS lcd display
1. PV101029S0140X mainly application for industrial device .
2. It with 1280×800 resolution high definition , LVDS interface , IPS full viewing angle , 720nits high brightness , -30℃~85℃wide work temperature, it with existing capacitive touch panel and HDMI board to support Raspberry PI .
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. t is sunlight readable , it can be well used for both indoor and outdoor .

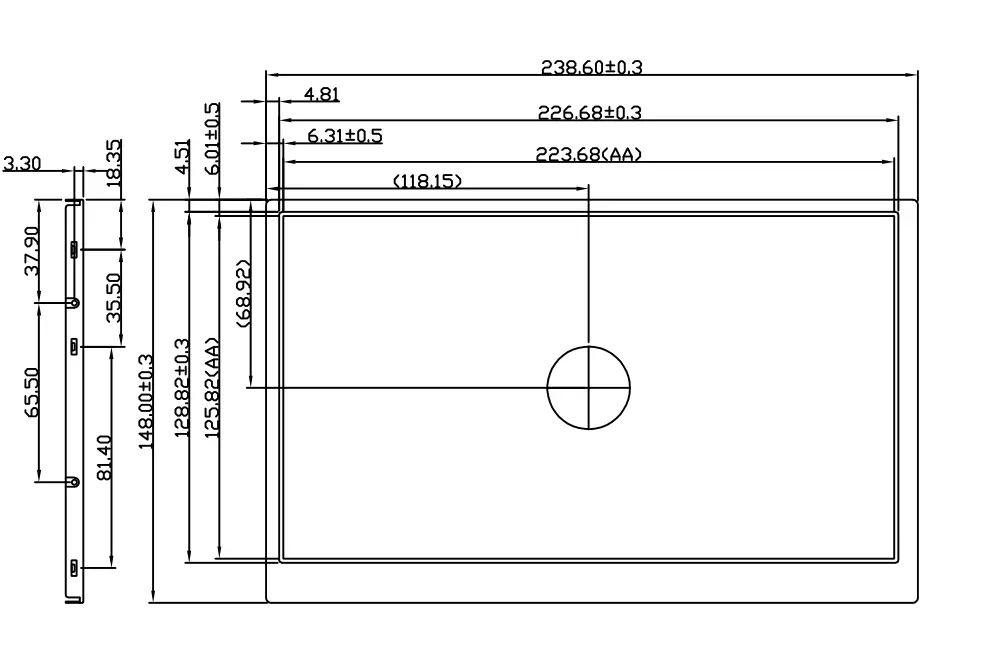

10.1 inch 1280×720 IPS wide temperature LCD display front view

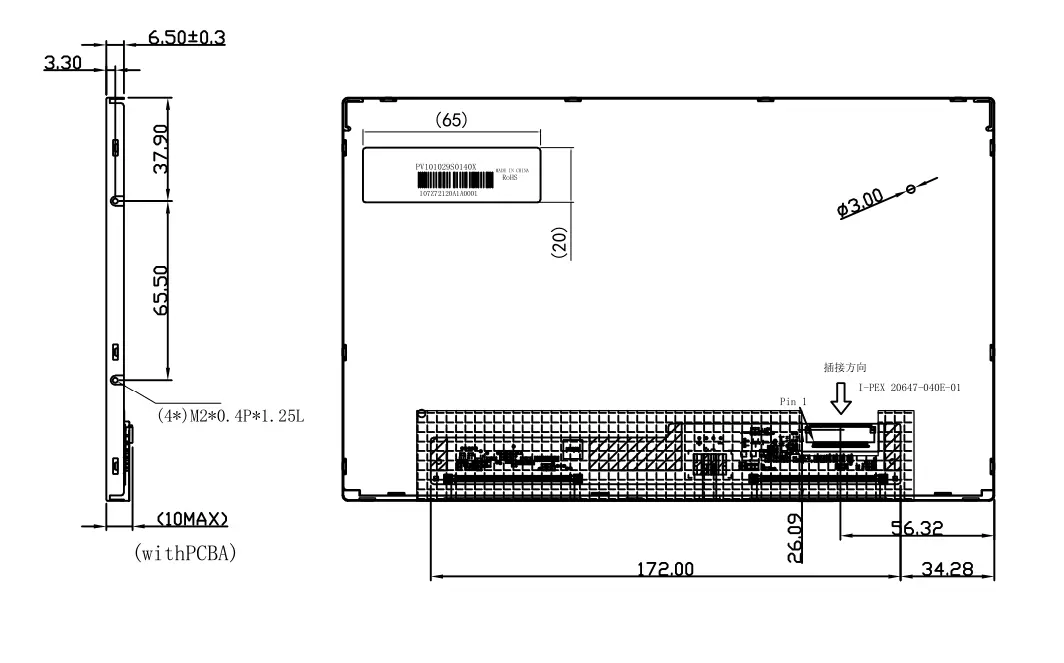

10.1 inch 1280×720 LVDS interface LCD display back view

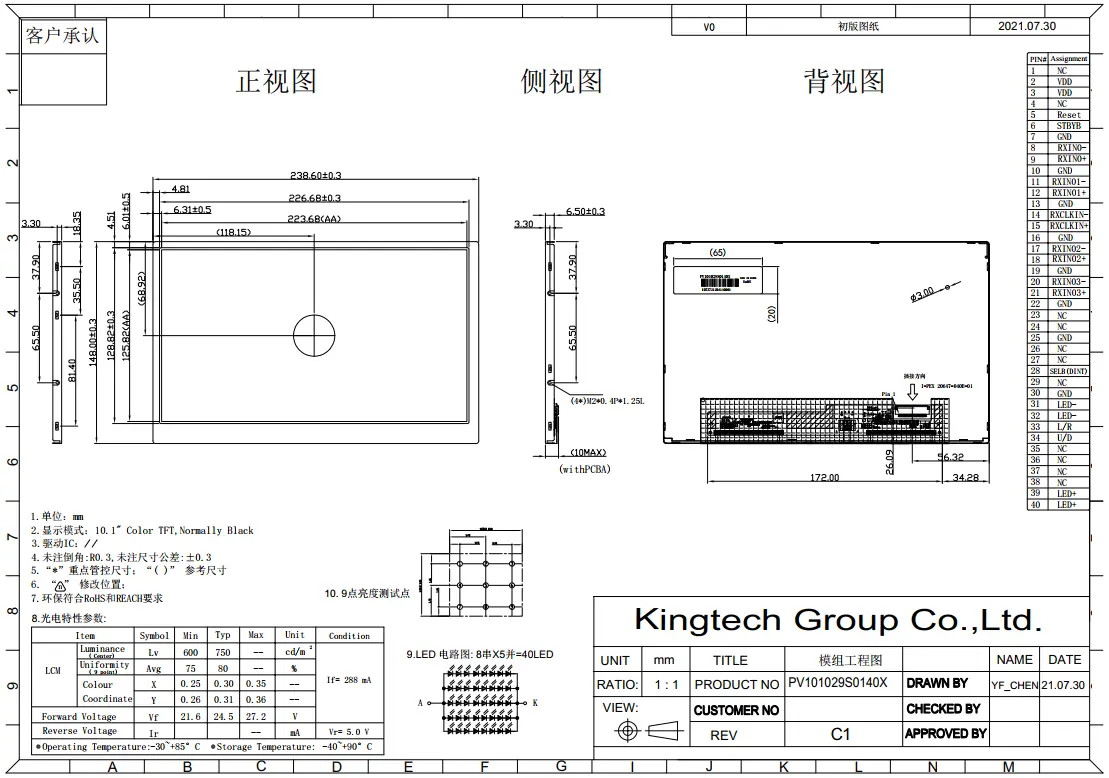

10.1 inch 1280×720 high brightness LCD display Machine Drawing
