China 40 pin 10.1inch mipi dsi lcd display 1000 nits
| Item | 10.1 inch 1280×800 TFT LCD display |
| Model No | PV101016LZR40P |
| Resolution | 1280×800 |
| Outline Dimension | 229.8*159*5.9 |
| Active Area(mm) | 216.96*135.60 |
| Brightness | 1000nits |
| Viewing Angle | All |
| Interface | MIP |
| PIN | 40 |
| Operating Temperature | -30 to +80℃ |
| Storage Temperature | -30 to +85℃ |
| Board | Can custom HDMI board |
| Touch Screen | Can custom capacitive touch or resistive touch |
For product pricing,customization,or other inquiries:
Share to:
10.1 inch 1280×800 sunlght readable MIPI LCD display
1. PV101016LZR40P mainly application for industrial device .
2. It with 1280×800 high resolution , MIPI 4LANS interface , IPS full viewing angle , 1000nits high brightness , -30℃~80℃wide work temperature.
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. It is sunlight readable , it can be well used for both indoor and outdoor .

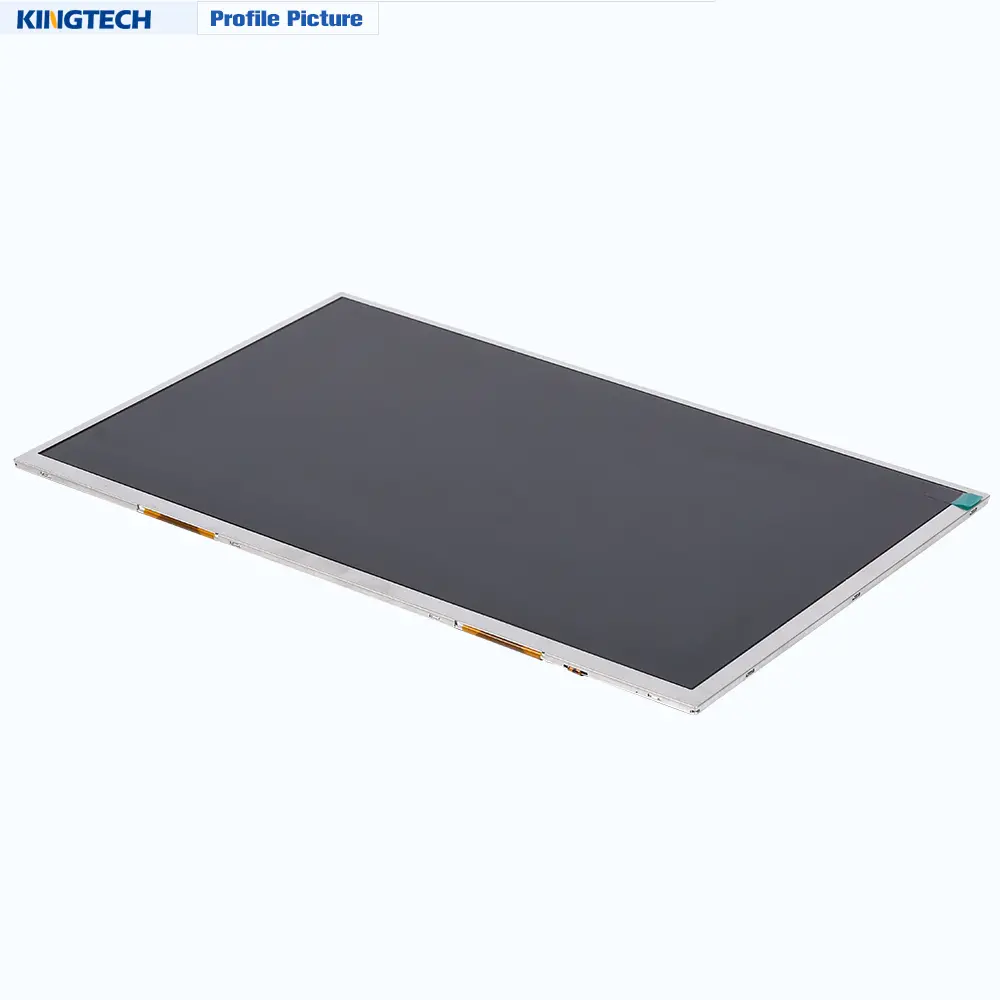

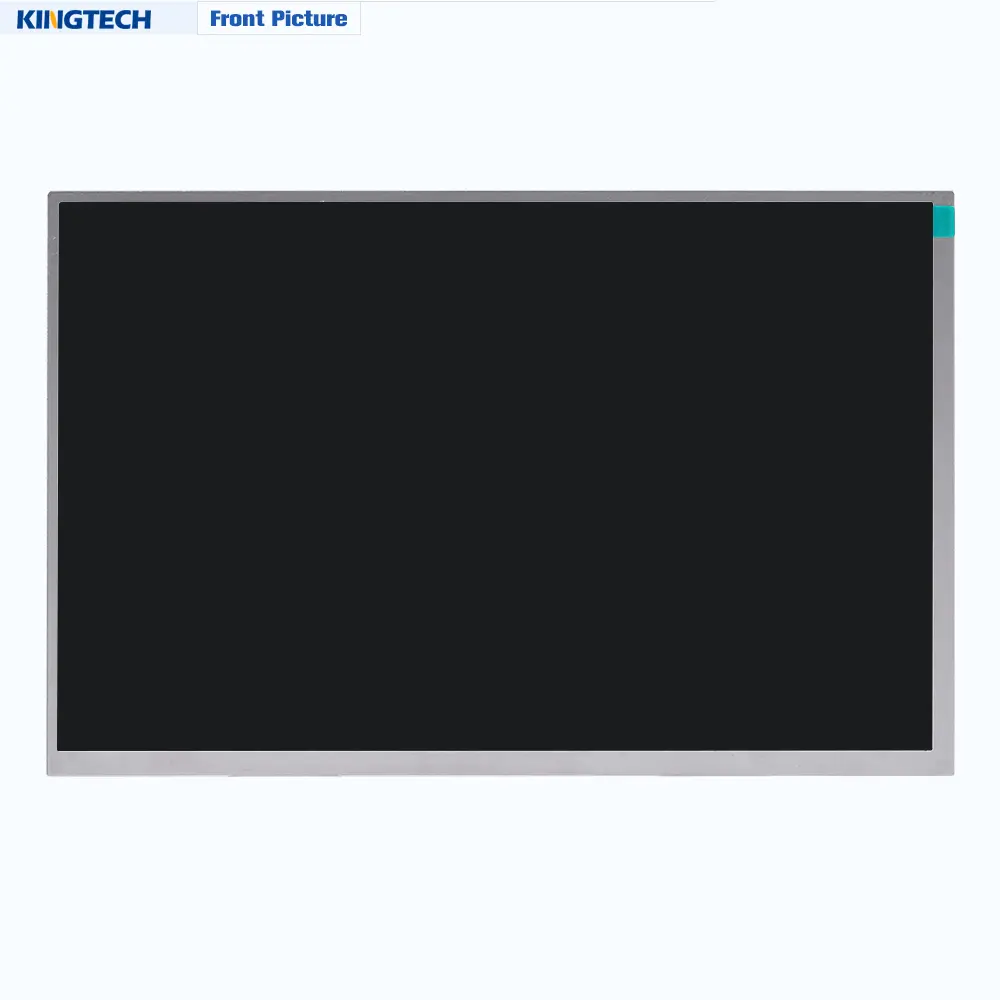

10.1 inch sunlight readable LCD display front view

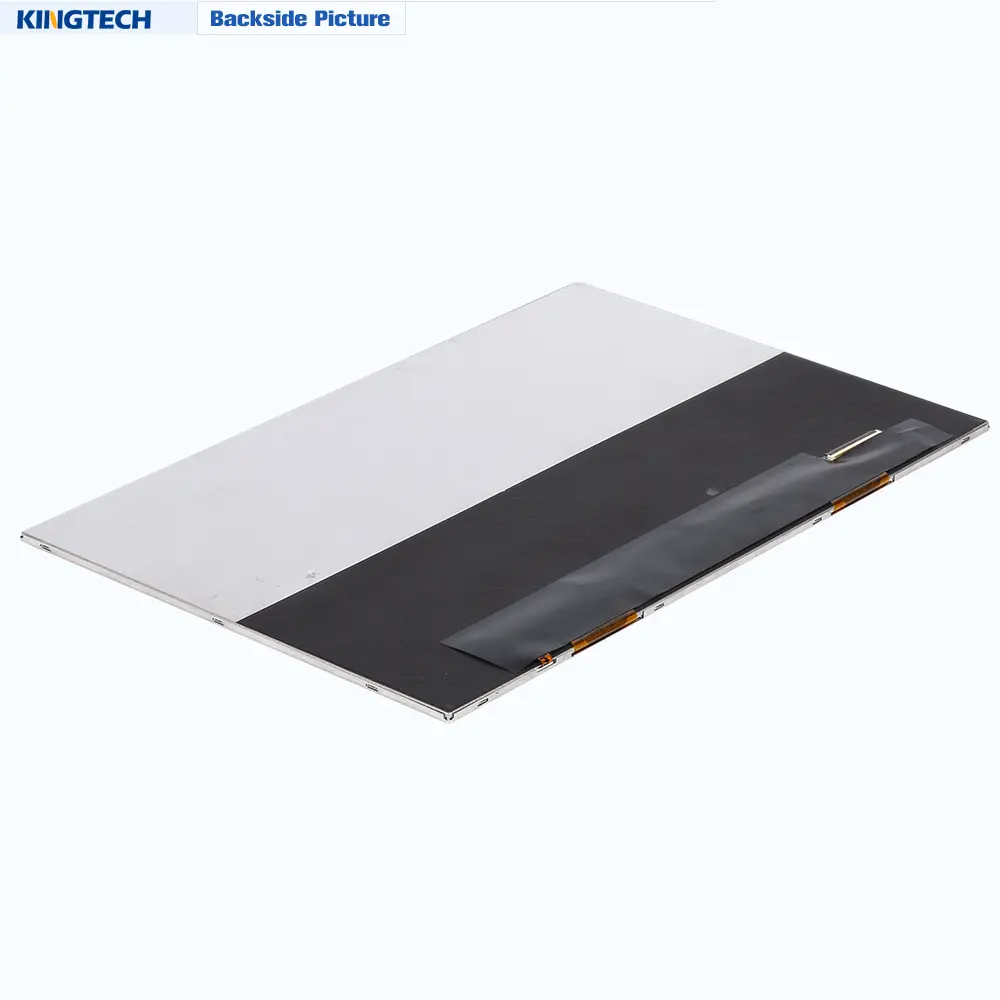

10.1 inch sunlight readable LCD display back view

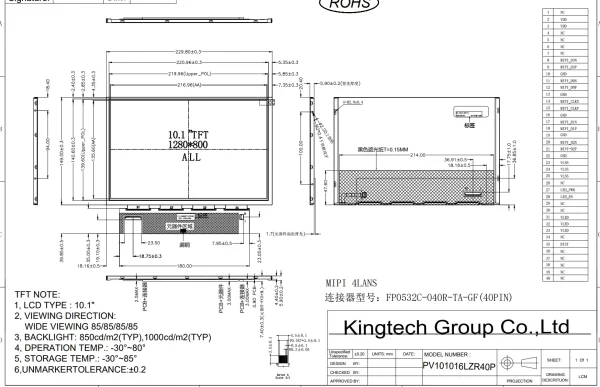

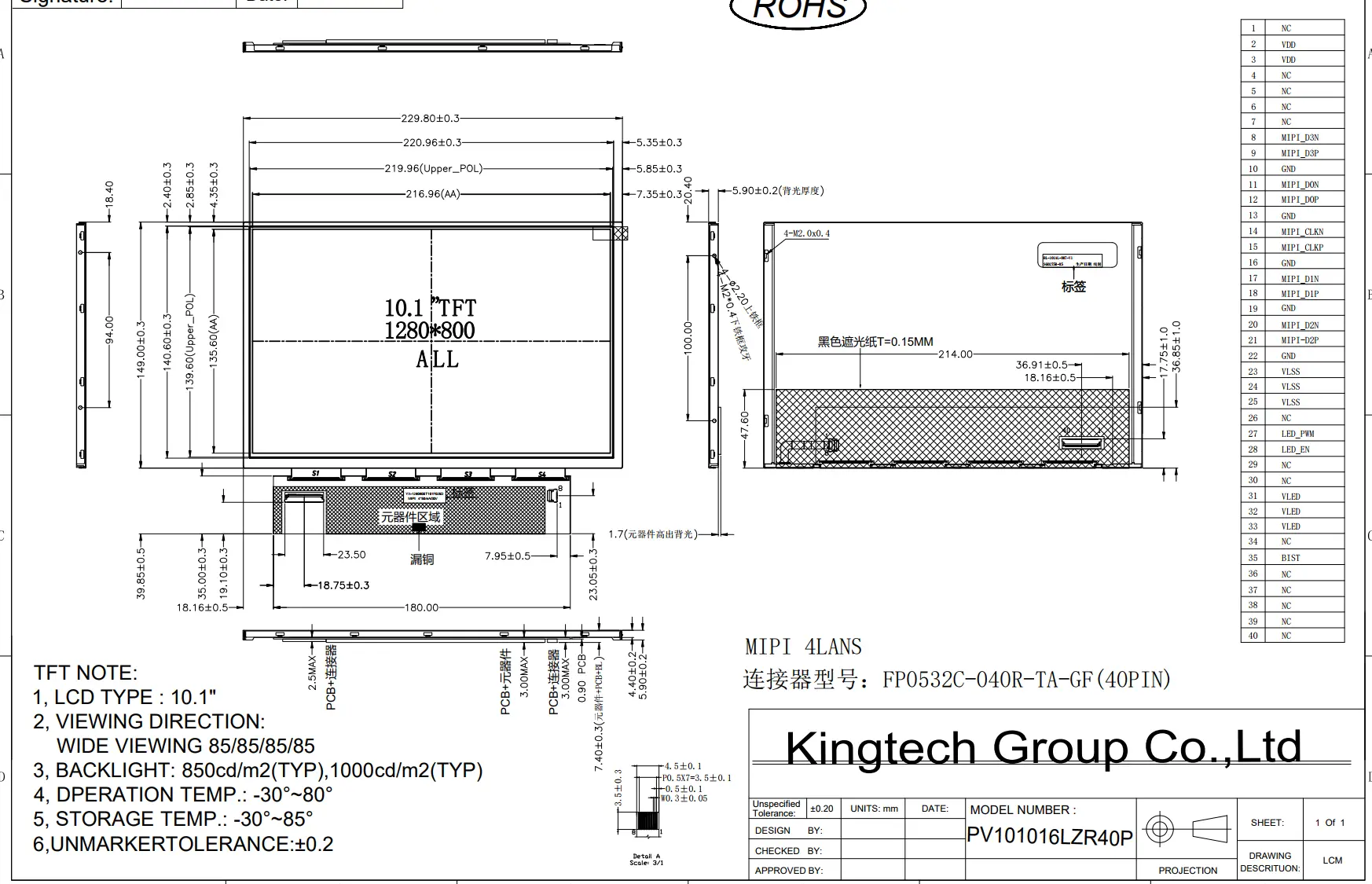

10.1 inch 1280×800 MIPI interface LCD dispaly Machine Drawing
