Mipi HDMI 800×1280 lcd 10.1 inch capacitive touch screen
| Item | 10.1 inch 800X1280 Vertical screen |
| Model No | PV101021H0140U |
| Resolution | 800X1280 |
| Outline Dimension | 143.9*228.50*2.6 |
| Active Area(mm) | 135.36*216.58 |
| Interface | MIPI Interface |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Brightness | 250nits |
| Board | HDMI board |
For product pricing,customization,or other inquiries:
Share to:
10.1 inch 800×1280 MIPI infterface IPS vertical lcd touch scree display
1. 10.1 inch 800×1280 MIPI infterface IPS vertical lcd touch scree display
2. PV101021H0140U mainly application for industrial device , logistics device
3. It with 800×1280 resolution , ALL/IPS / full viewing angle, 250nits brightness, MIPI interface , ILI9881C driver IC, existing capacitive touch .
4. And it can custom the capacitive or resistive touch panel as customer ‘s requirement .
5. It is the A grade product , with good quality for the industrial application
10.1 inch IPS Vertical touch screen front view
10.1 inch IPS Vertical touch screen front view

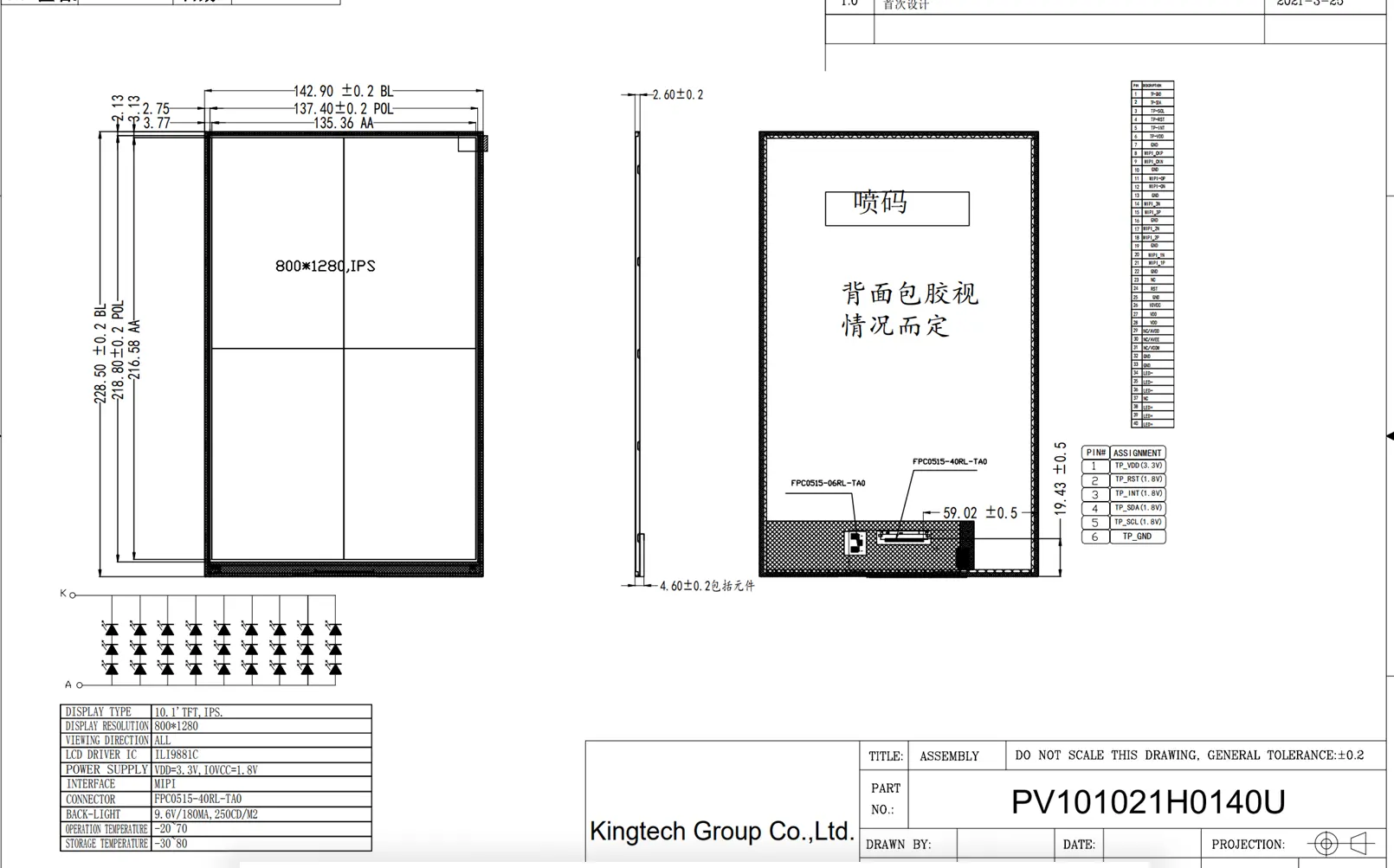

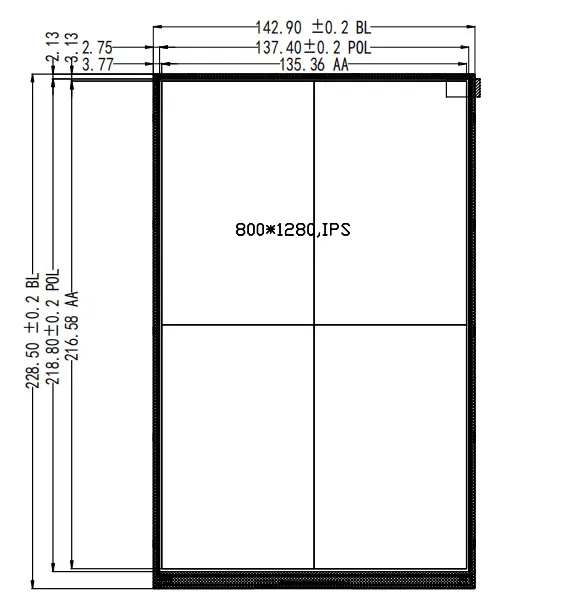

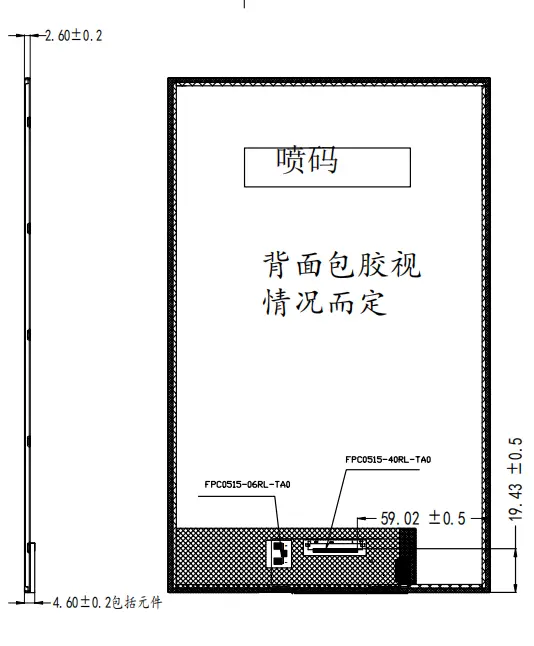

10.1 inch MIPI Vertical LCD touch screen Machine Drawing
