10.1-Inch TFT Display – 1024*600 950nits IPS

Technical Specifications

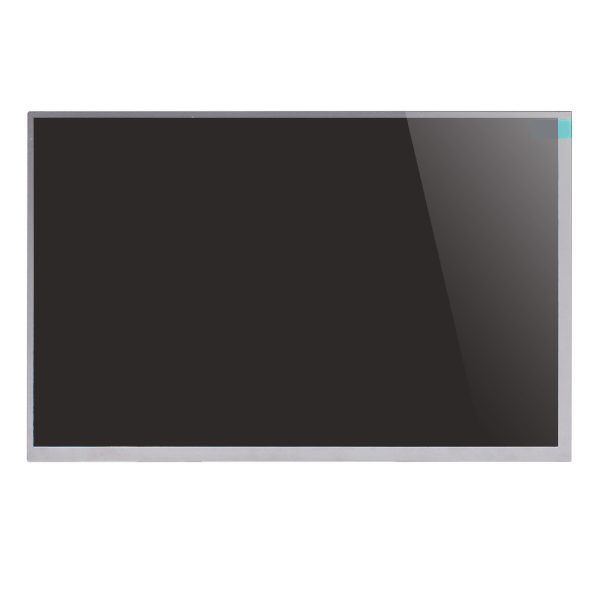

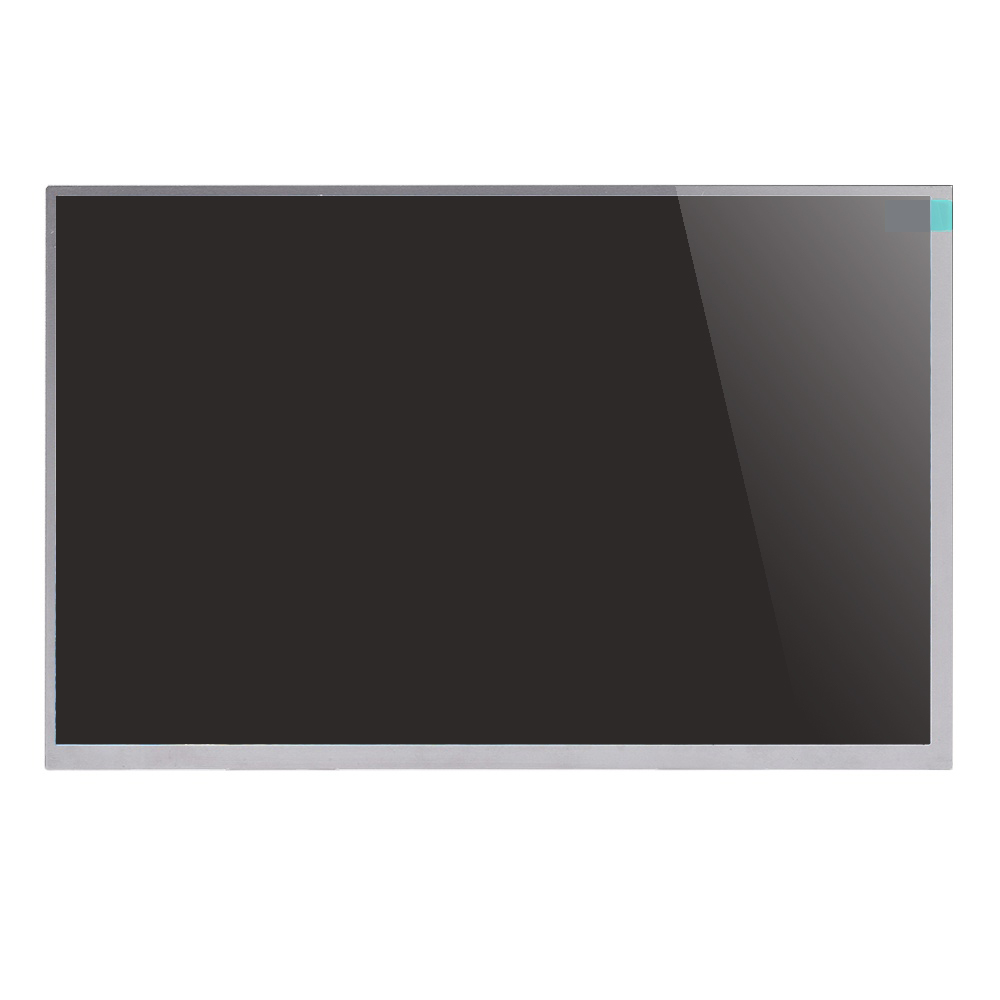

The PV101020Y0140T display has a screen size of 10.1 inches with a resolution of 1024*600 pixels, ensuring clear and detailed visuals. The display provides a brightness level of 950 nits, making it suitable for environments with high ambient light. It supports a wide viewing angle from all directions, ensuring visibility from multiple angles.

This module is equipped with an LVDS interface for stable and efficient data transmission. The display supports both resistive and capacitive touch screen options, which can be customized based on specific application requirements.

The outline dimensions of the display measure 235mm in width, 143mm in height, and 4.5mm in thickness. The active display area is 222.72mm by 125.28mm. It features a 40PIN connector for easy integration and includes a backlight system consisting of 6*6 LED configuration.

The operating temperature range is from -20°C to 70°C, ensuring reliable performance in various conditions. For storage, it can withstand temperatures from -30°C to 80°C, making it highly durable and adaptable.

For product pricing,customization,or other inquiries:

Share to:

Description

Product Overview

The PV101020Y0140T is a 10.1-inch IPS TFT LCD display with a resolution of 1024*600 and a brightness of up to 950 nits. This high-brightness display is ideal for various industrial, medical, and handheld device applications. It features an LVDS interface, a wide viewing angle, and customizable resistive and capacitive touch screen options to meet different operational needs.

The PV101020Y0140T 10.1-inch IPS TFT LCD display offers a combination of high brightness, wide viewing angles, and a stable LVDS interface. With customizable touch options and a robust design, it is an excellent choice for medical devices, handheld equipment, and industrial applications.
