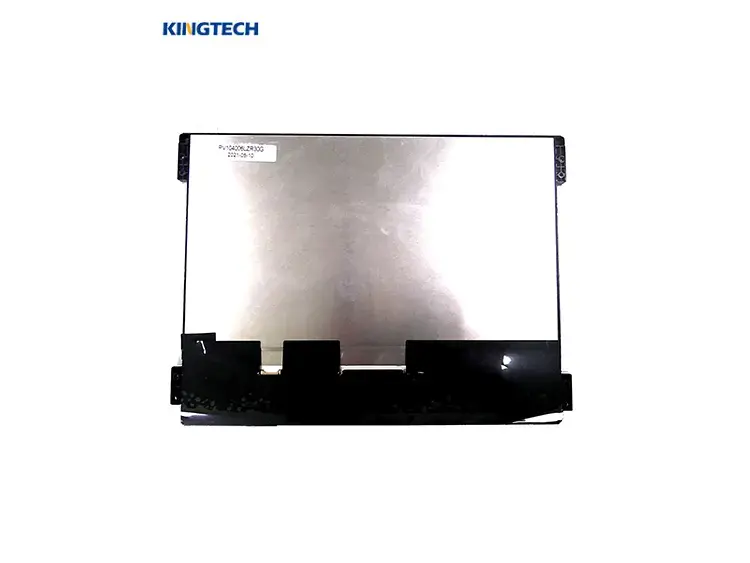

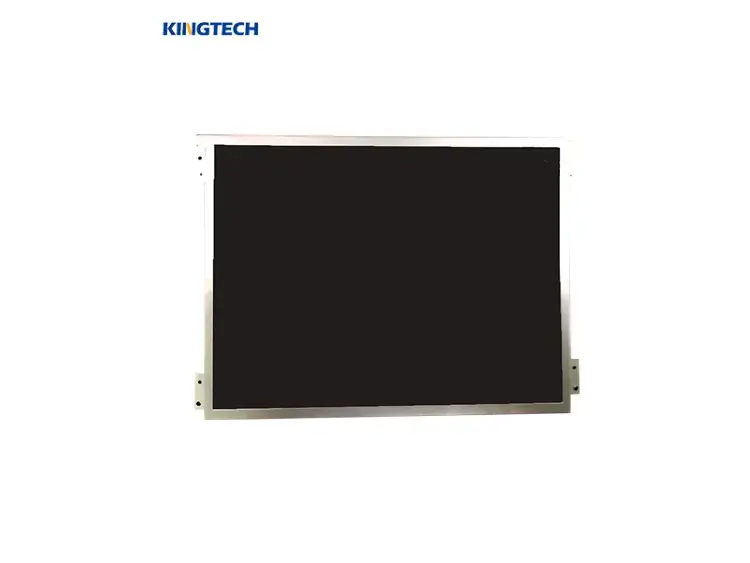

LVDS 1000 nits ips 10.4 inch bar lcd display

Key Features

  • High Brightness: 1000 nits for excellent visibility in bright environments.
  • IPS Technology: Wide viewing angles (All/Free Viewing Angle) with consistent color reproduction.
  • Industrial-Grade Durability: Operates in extreme temperatures (-30°C to 80°C).
  • LVDS Interface: Supports 6/8-bit color depth for high-quality image transmission.
  • Slim Design: Compact outline with a thickness of only 5.75mm.
  • Long-Lasting Backlight: 11×4 LED backlight configuration for enhanced brightness and durability.

Detailed Specifications

  • Screen Size: 10.4 inches
  • Resolution: 1024 x 768 (XGA)
  • Aspect Ratio: 4:3
  • Outline Dimensions: 238.6mm (Width) x 175.8mm (Height) x 5.75mm (Depth)
  • Active Area (AA): 210.432mm (Width) x 157.824mm (Height)
  • Brightness: 1000 nits (cd/m²)
  • Backlight Type: LED (11×4 configuration)
  • Interface: LVDS (6/8-bit)
  • Viewing Angle: All/Free Viewing Angle (IPS Technology)
  • Display Mode: Transmissive
  • Operating Temperature: -30°C to 80°C
  • Storage Temperature: -30°C to 80°C
  • PIN Configuration: 30-pin

For product pricing,customization,or other inquiries:

Share to:

Product Overview

The 10.4″ LVDS 1000 Nits IPS Bar LCD Display is a high-performance industrial-grade display designed for demanding environments. With a resolution of 1024×768 (XGA) and an ultra-bright 1000 nits backlight, this display ensures exceptional visibility even in high-ambient-light conditions. Its IPS (In-Plane Switching) technology provides wide viewing angles (All/Free Viewing Angle), making it ideal for applications where consistent color and clarity are critical. The display features an LVDS interface, supports 6/8-bit color depth, and operates reliably across a wide temperature range, making it suitable for industrial, medical, and outdoor applications.


Key Features

  • High Brightness: 1000 nits for excellent visibility in bright environments.
  • IPS Technology: Wide viewing angles (All/Free Viewing Angle) with consistent color reproduction.
  • Industrial-Grade Durability: Operates in extreme temperatures (-30°C to 80°C).
  • LVDS Interface: Supports 6/8-bit color depth for high-quality image transmission.
  • Slim Design: Compact outline with a thickness of only 5.75mm.
  • Long-Lasting Backlight: 11×4 LED backlight configuration for enhanced brightness and durability.

  • Applications

    This 10.4″ LVDS IPS Bar LCD Display is ideal for a wide range of industrial and commercial applications, including:

    • Industrial Control Systems: HMI (Human-Machine Interface), PLCs, and factory automation.
    • Medical Equipment: Diagnostic devices, patient monitoring systems, and medical displays.
    • Outdoor Kiosks: ATMs, ticketing machines, and information displays.
    • Transportation: In-vehicle displays, aviation, and marine navigation systems.
    • Retail and Hospitality: POS systems, digital signage, and self-service terminals.

    Why Choose This Display?

    1. Superior Brightness: 1000 nits ensures readability in direct sunlight or high-ambient-light environments.
    2. Wide Viewing Angles: IPS technology delivers consistent colors and clarity from any angle.
    3. Robust Performance: Designed to withstand extreme temperatures and harsh conditions.
    4. Compact and Lightweight: Slim profile and lightweight design for easy integration into various systems.
    5. Reliable Interface: LVDS interface ensures stable and high-quality signal transmission.
