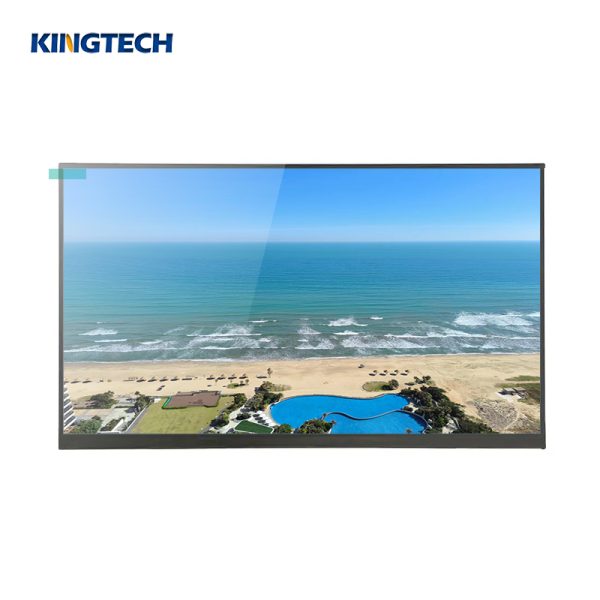

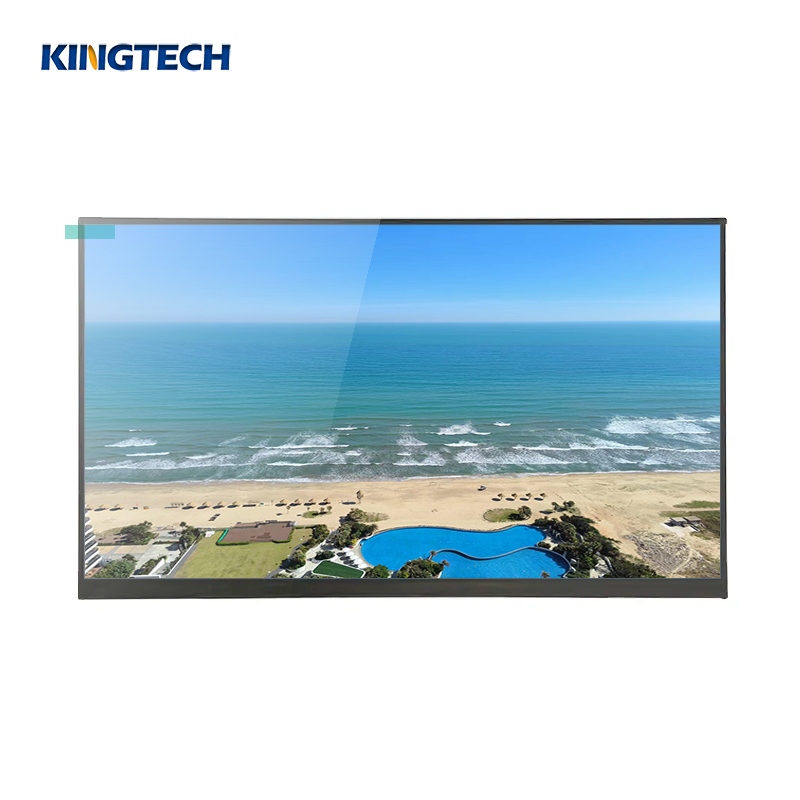

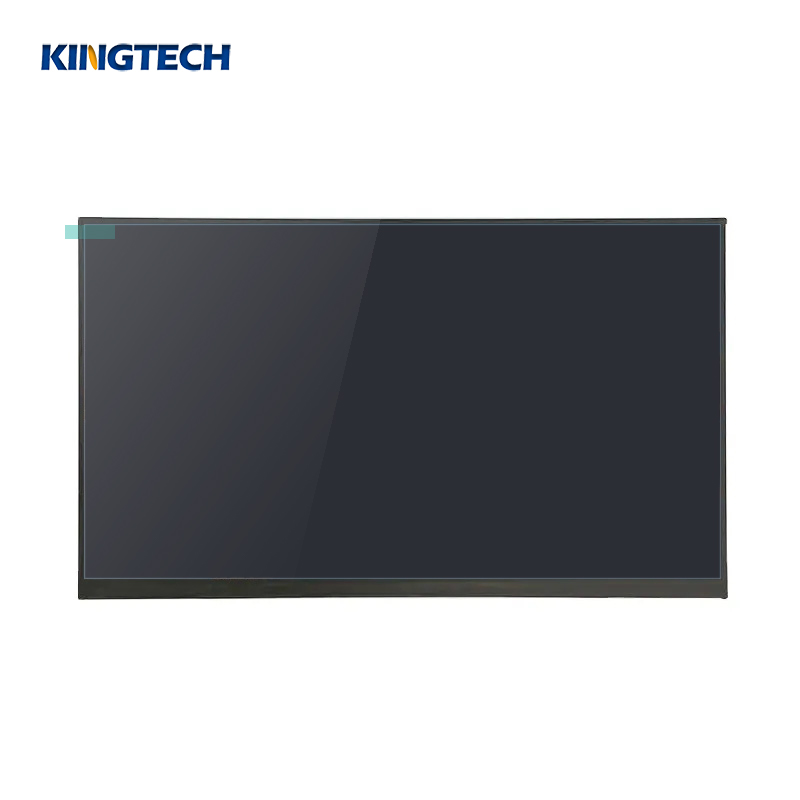

11.6 inch 1920*1080 TFT display module
| Item | 11.6inch IPS 1920*1080 TFT display |
| Model No. | PV116002H0330C |
| Resolution | 1920*1080 |

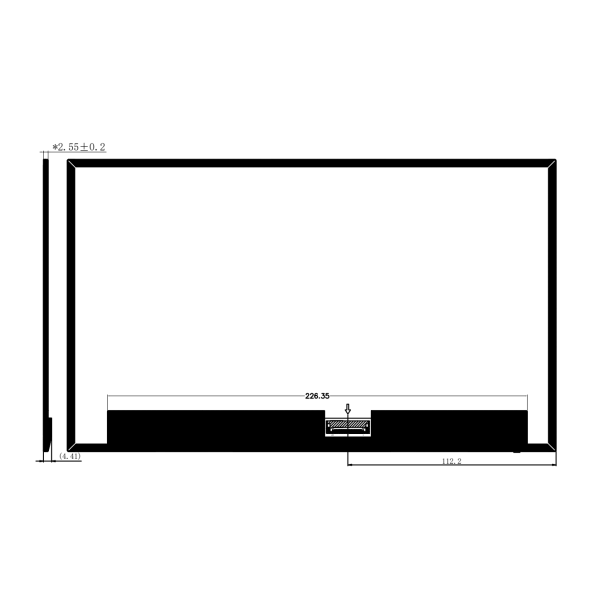

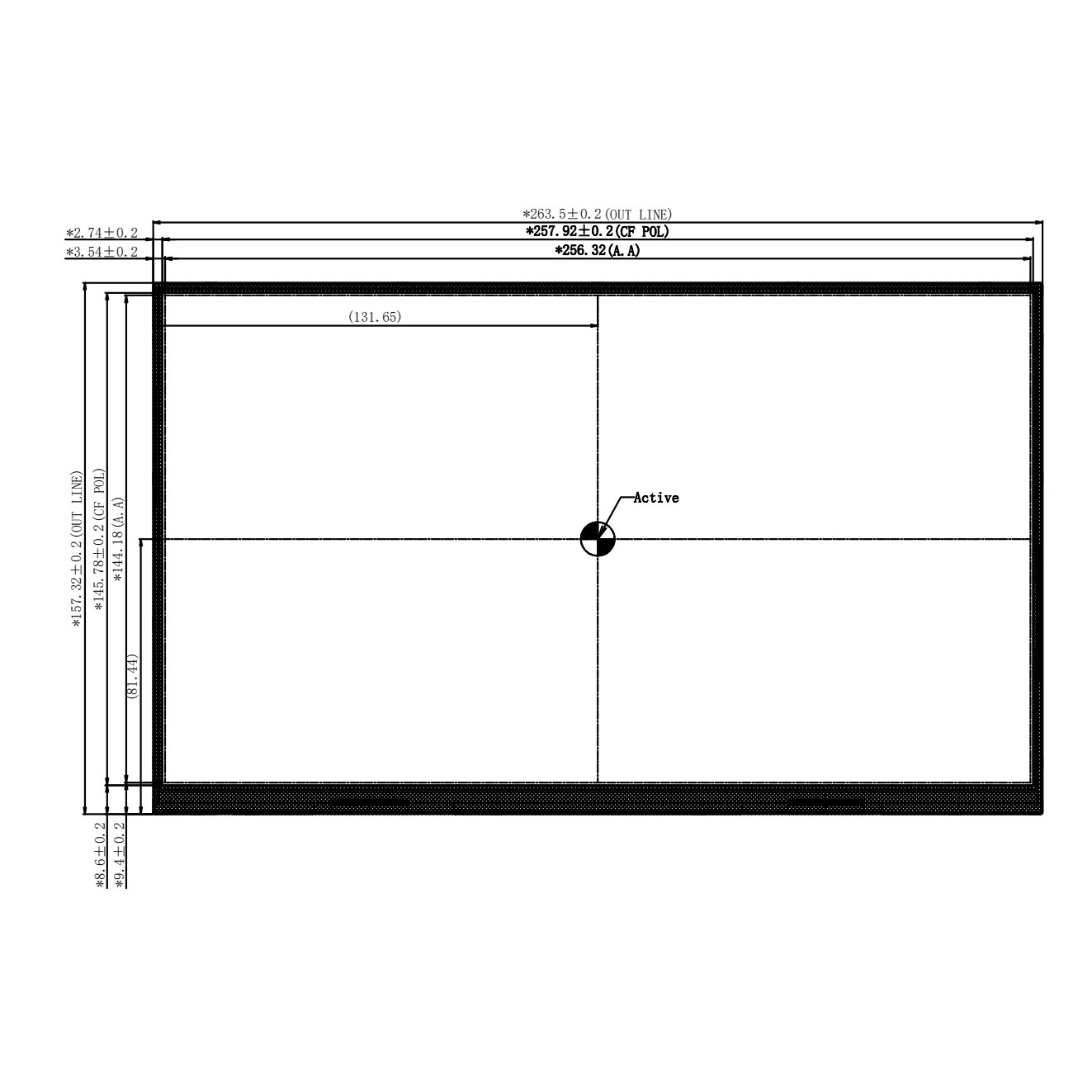

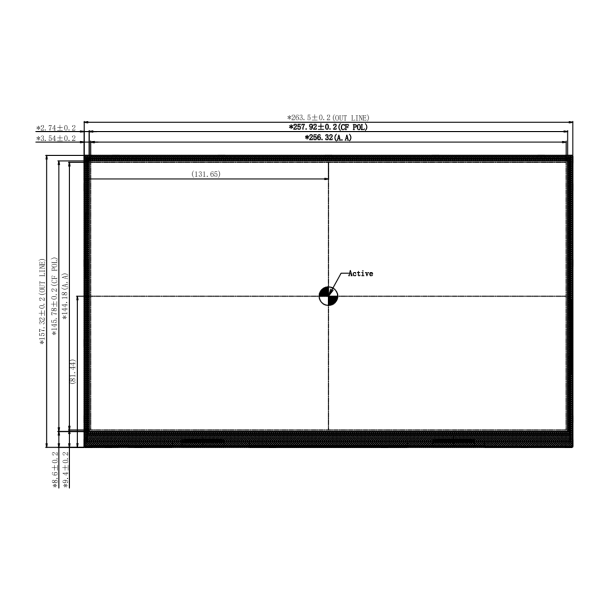

| Outline Dimension (mm) | 263.5*157.22*2.55 |
| Active Area (mm) | 256.32*144.18 |
| Viewing Angle | All |
| Brightness | 250nits |
| Interface | eDP |
| Backlight | 8*5 LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | 0~50C |
| Storage Temperature | -10~60C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- 11.6 inchTFTdisplay
- 1920*1080
- Stable supply
- IPS/Full/Wide/All viewing angle
- eDPinterface
- 250nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
