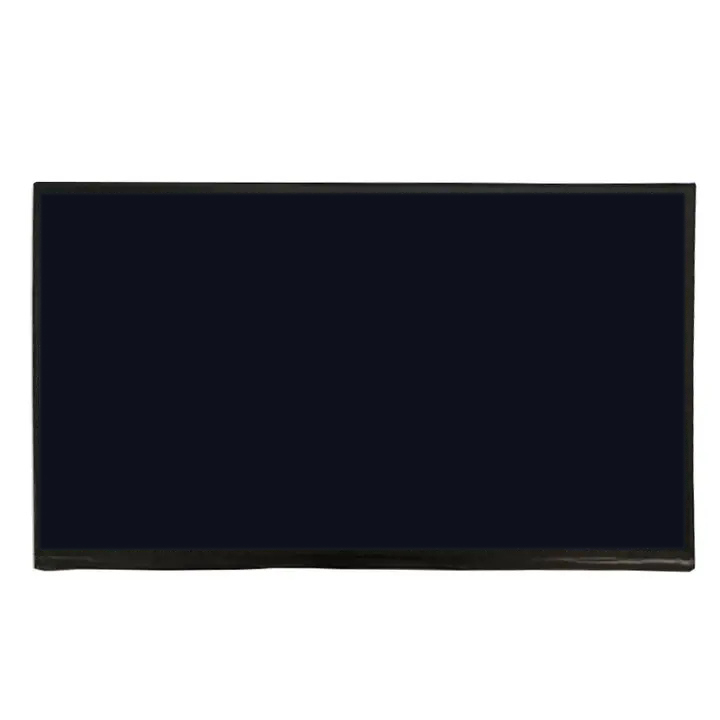

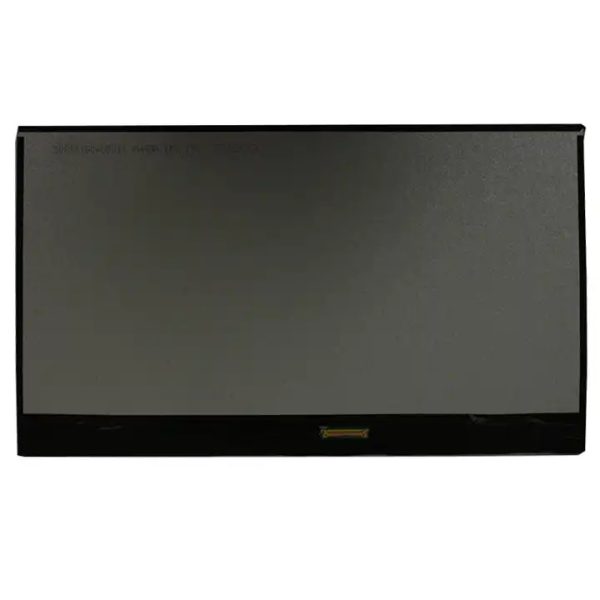

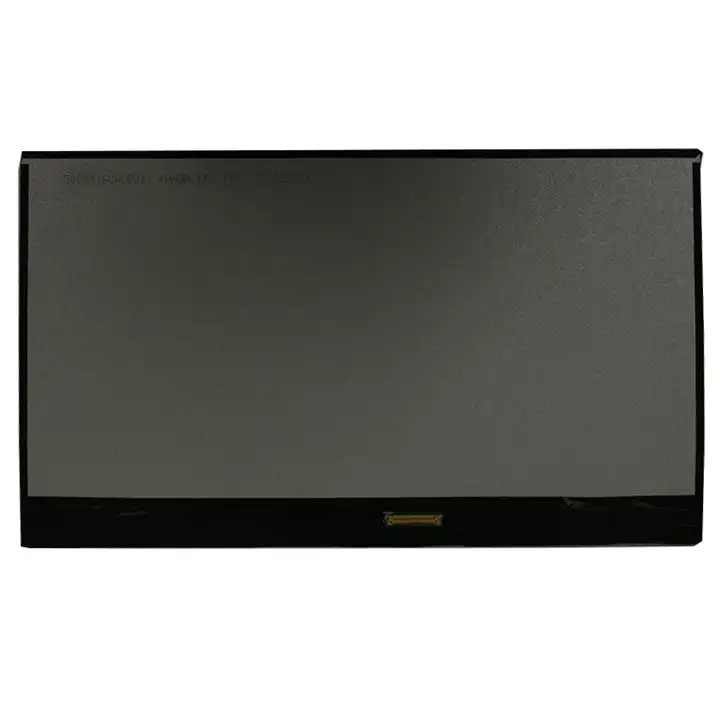

11.6 inch 1920*1080 TFT module display

Key Features

  • High Resolution: 1920×1080 Full HD, offering clear and sharp visuals

  • IPS Technology: Wide viewing angles for enhanced image quality from all directions

  • Superior Brightness: 1000 nits for bright and clear displays, even in direct sunlight

  • Flexible Touchscreen Options: Custom capacitive and resistive touchscreens available for interactive applications

  • Robust Design: Suitable for industrial, automotive, and outdoor use with an operating temperature range of 0°C to 50°C

  • Energy-Efficient Backlight: 4×12 LED backlight for superior energy efficiency and consistent brightness

  • eDP Interface: High-speed interface for seamless connectivity and performance

  • Wide Applications: Perfect for medical devices, handheld gadgets, advertising panels, industrial equipment, and automotive displays

Technical Specifications

  • Model No.: PV116001H0330B

  • Display Size: 11.6 Inch

  • Resolution: 1920×1080

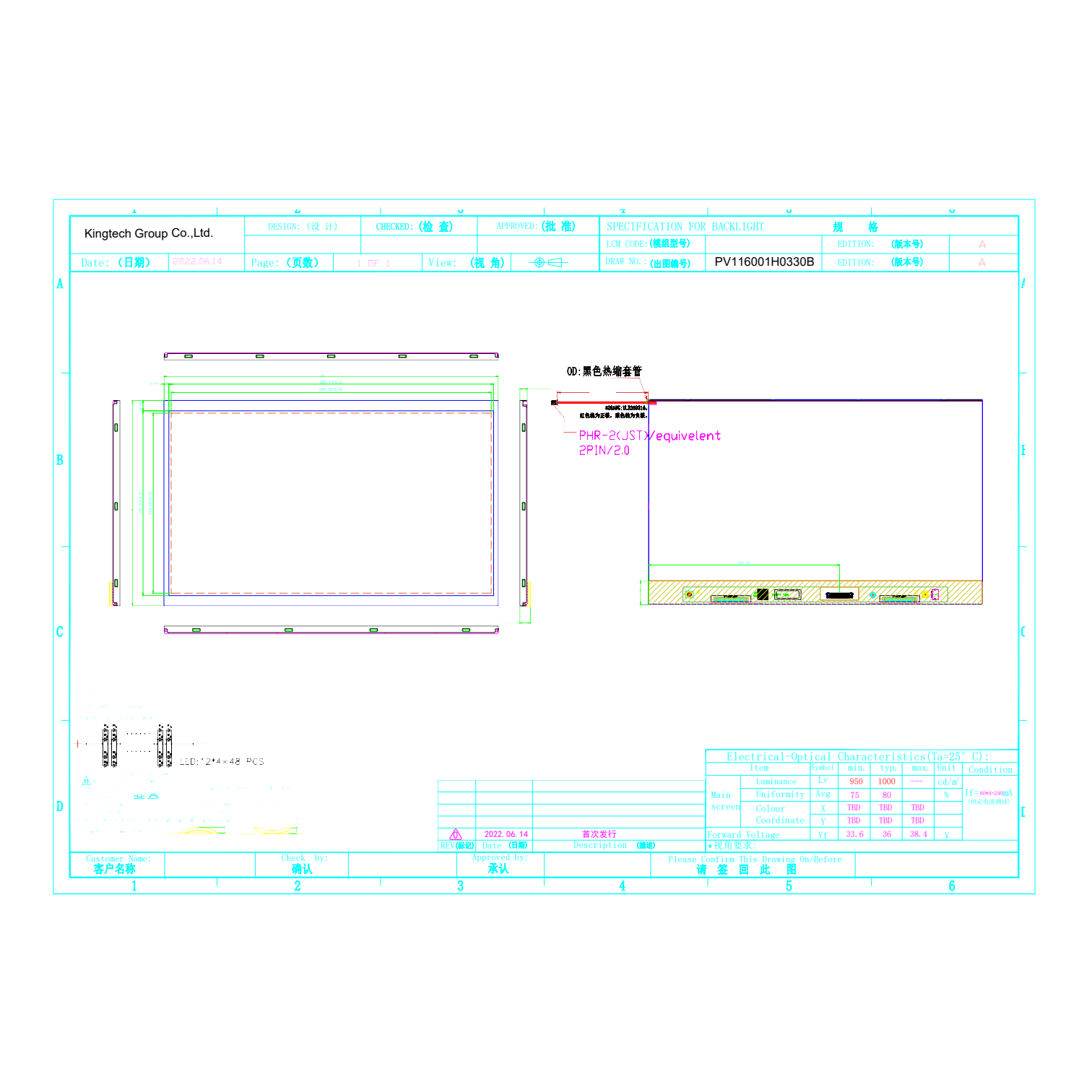

  • Outline Dimensions (mm): 267.9 x 164.5 x 6.1

  • Active Area (mm): 256.32 x 144.18

  • Viewing Angle: All directions (IPS)

  • Brightness: 1000 nits

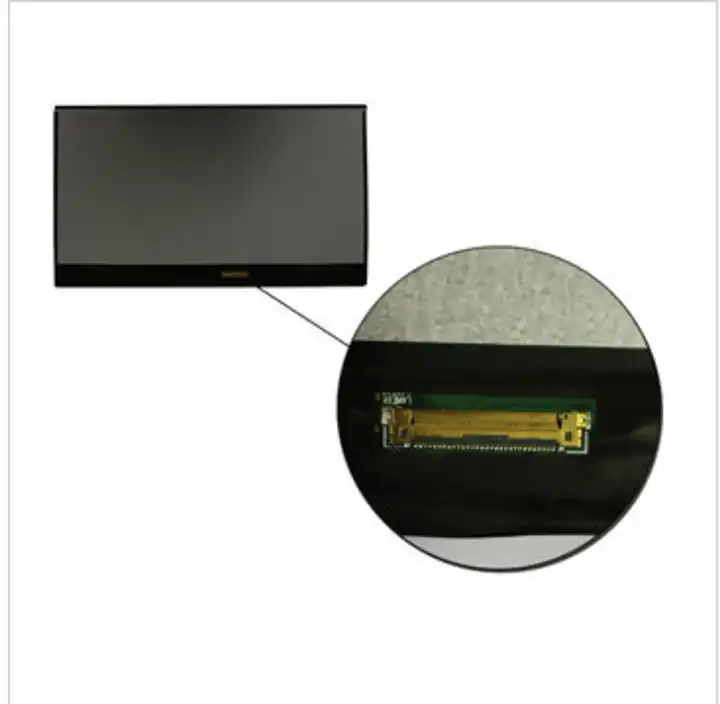

  • Interface: eDP

  • Backlight: 4×12 LED

  • PIN No.: 30

  • Operating Temperature: 0°C to 50°C

  • Storage Temperature: -10°C to 60°C

  • Touch Screen: Custom capacitive and resistive touch screen options

  • Applications: Medical devices, handheld devices, industrial equipment, advertising screens, automotive displays

For product pricing,customization,or other inquiries:

Share to:

Product Overview
The PV116001H0330B is a high-performance 11.6-inch IPS TFT module display with a 1920×1080 resolution, offering exceptional clarity and vibrant colors. With 1000 nits brightness, this display is suitable for both indoor and outdoor environments, making it ideal for medical devices, industrial applications, handheld devices, advertising screens, and more. The module supports eDP interface and offers customizable capacitive or resistive touchscreen options to meet diverse requirements.

Applications

  • Medical Devices: Ideal for healthcare equipment, patient monitoring, and diagnostic devices

  • Handheld Devices: Perfect for portable, battery-powered electronics

  • Industrial Use: Durable display for machinery, industrial control panels, and rugged applications

  • Advertising and Outdoor Displays: High brightness makes it suitable for advertising and digital signage in various environments

  • Automotive Displays: Ideal for in-car entertainment systems and control panels

Why Choose This TFT Module Display?

  • Full HD Resolution: 1920×1080 pixels for superior image clarity

  • Wide Viewing Angles: IPS technology ensures clear visuals from any direction

  • High Brightness: 1000 nits makes it perfect for outdoor and high-exposure settings

  • Customizable Touchscreen: Capacitive or resistive touch options to fit your project needs

  • Versatile Applications: Works seamlessly in a range of industries including medical, automotive, and advertising

Contact Us for Bulk Orders and Technical Support
For more information, pricing, or customization options, please contact us today. Our team is ready to assist you with your specific display requirements.
