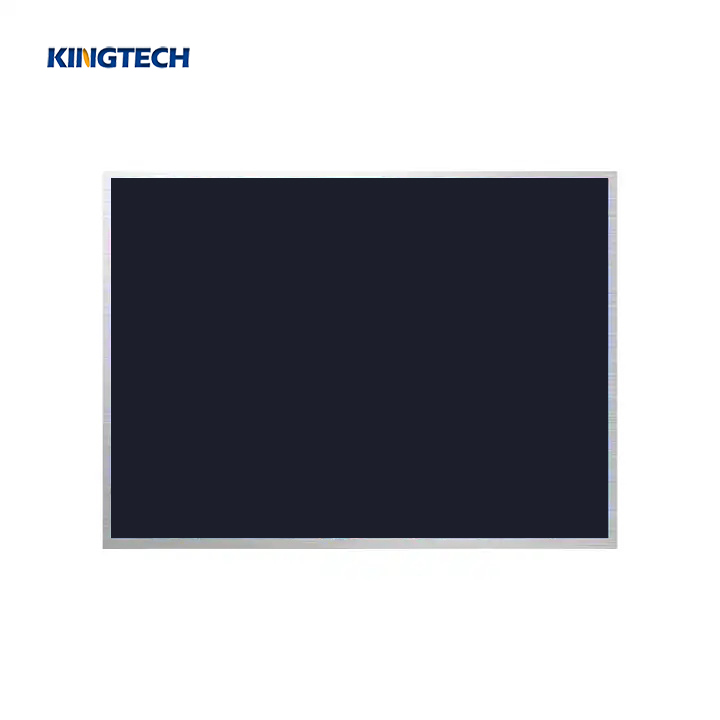

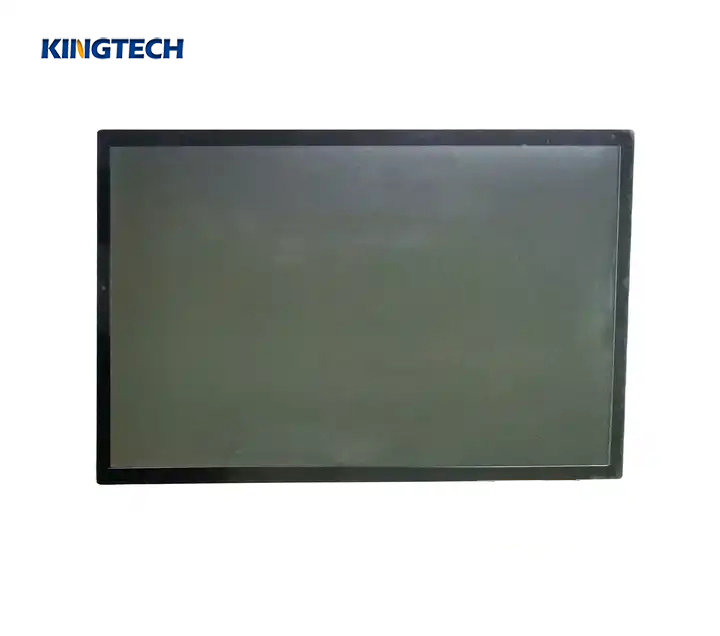

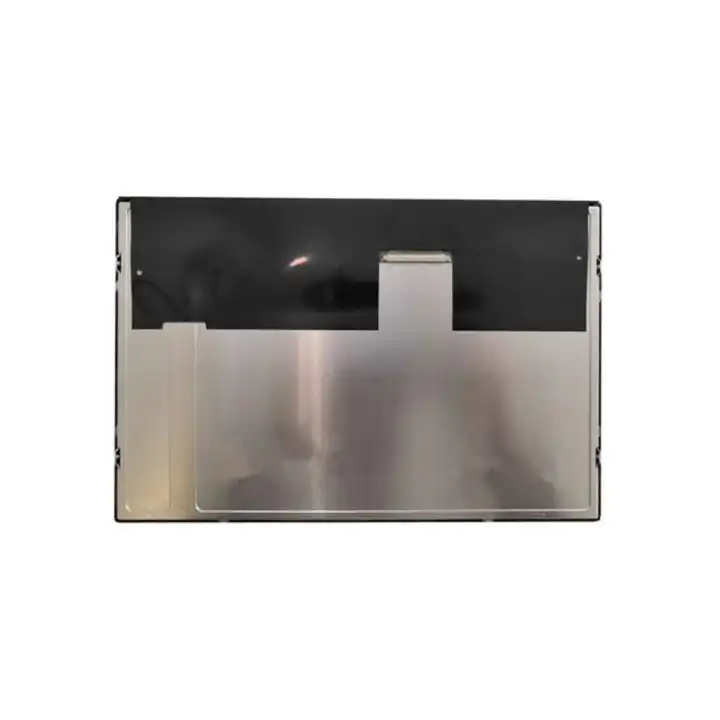

12.1 inch 1280*800 1000nits -30~80℃ TFT display
| Item | 12.1inch IPS 1280*800 TFT display |
| Model No. | PV012106S0130G |
| Resolution | 1280*800/WXGA |

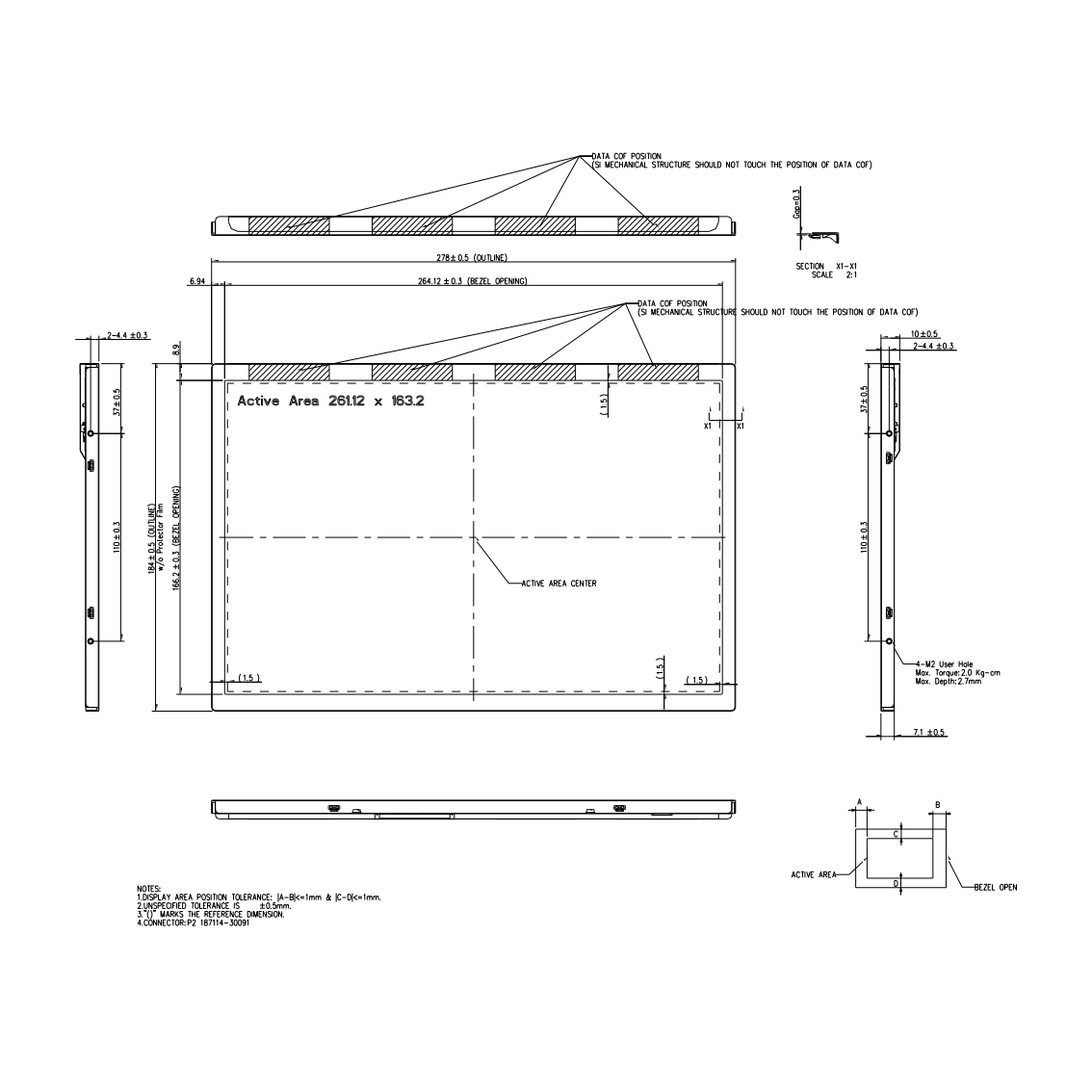

| Outline Dimension (mm) | 278*184*10 |
| Active Area (mm) | 261.12*163.2 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | / |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 12.1 inchTFT display
- 1280*800/WXGA
- Stable supply
- IPS/Full/Wide/All viewing angle
- LVDS interface
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- EV charger display,Medical, hand-held device, industrial
