12.1inch 1280*800 LCD display
| Item | 12.1inch 1280*800 LCD display |
| Model No | PV012103YH30D |
| Resolution | 1280*800 |
| Outline Dimension | 278*184*10 MM |
| Active Area(mm) | 261.12*163.2)mm |
| Interface | LVDS |
| Viewing Angle | all |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 400nis |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
12.1 inch 11280×800 resolution LVDS interface IPS LCD display
1.PV012103YH30D mainly application for Industrial ，medical equipment .
2.It with 1280×800 resolution , LVDS interface , all view angle , 400nits brightness .
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ，medical application .

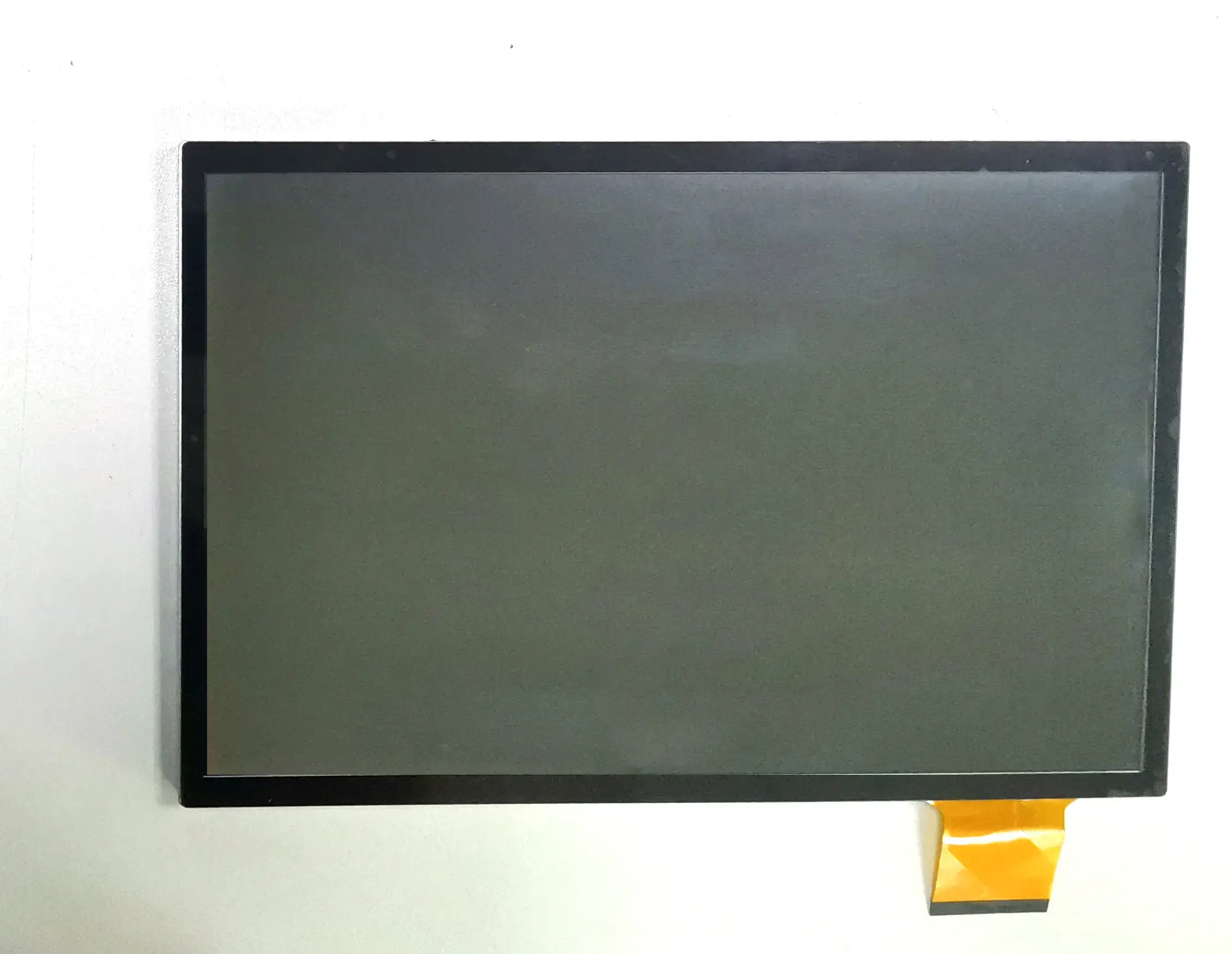

12.1inch 1280*800 LCD display Front view

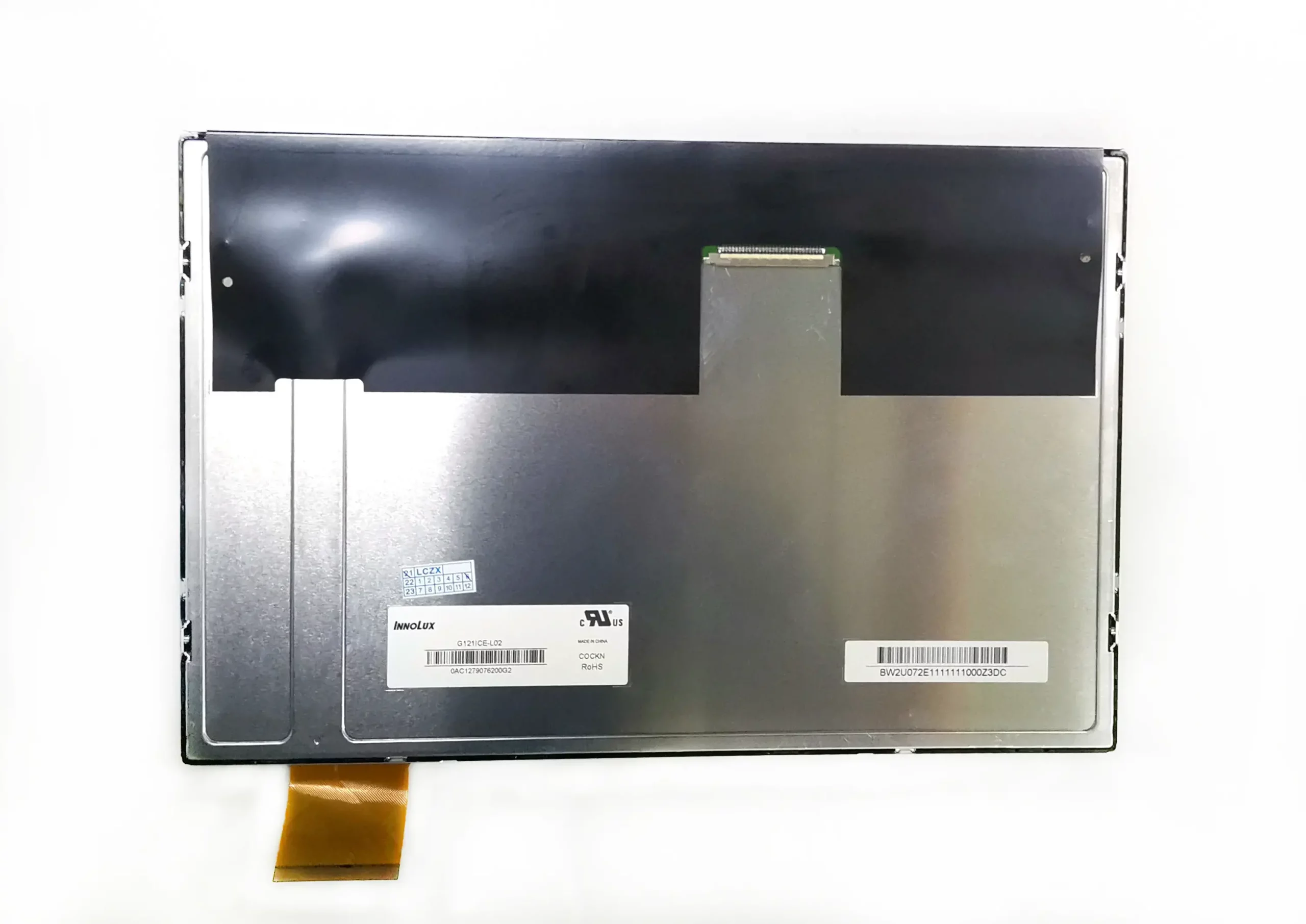

12.1inch 1280*800 LCD display Back View

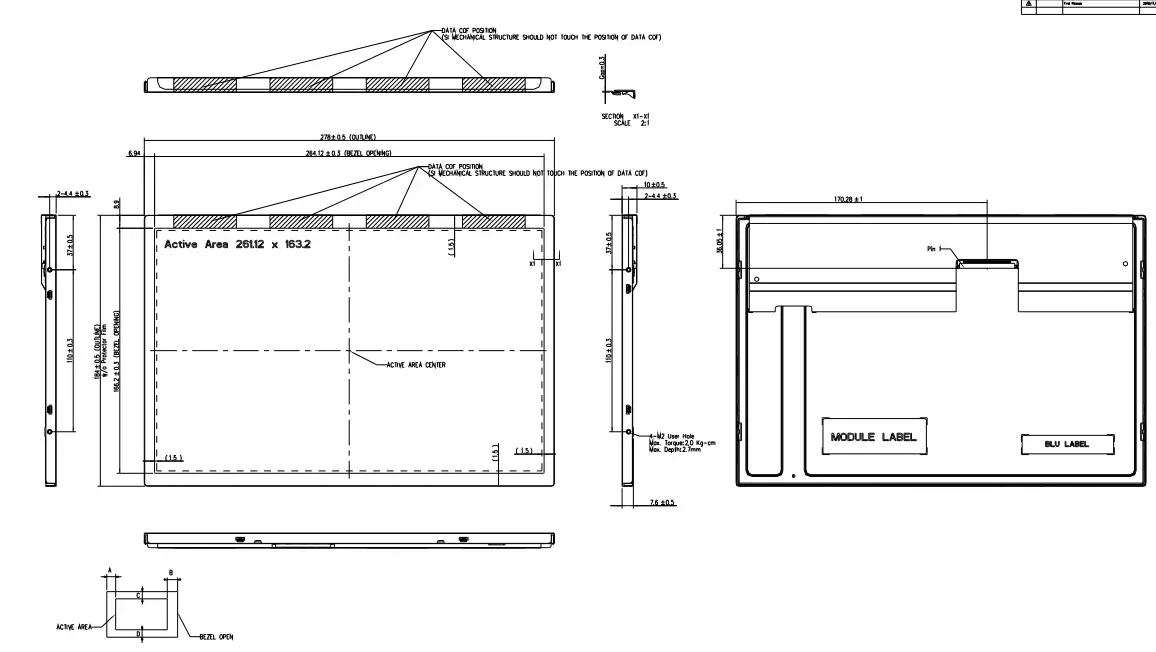

12.1inch 1280*800 LCD display Machine drawing :
