12.3 inch 1920*720 1000nits TFT module display
| Item | 12.3 inch IPS 1920*720 bar type TFT display |
| Model No. | PV012307W0250J |
| Resolution | 1920*720 |

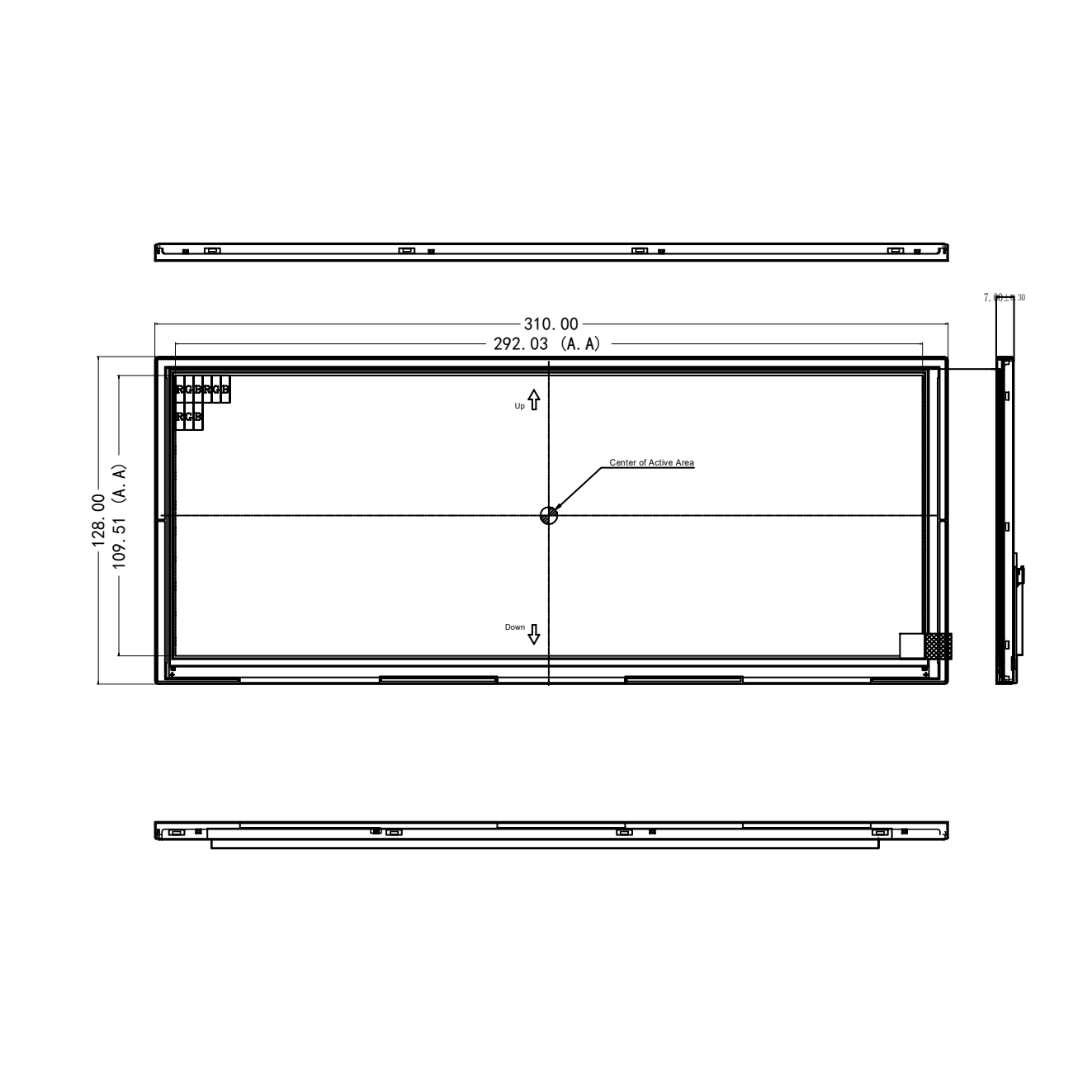

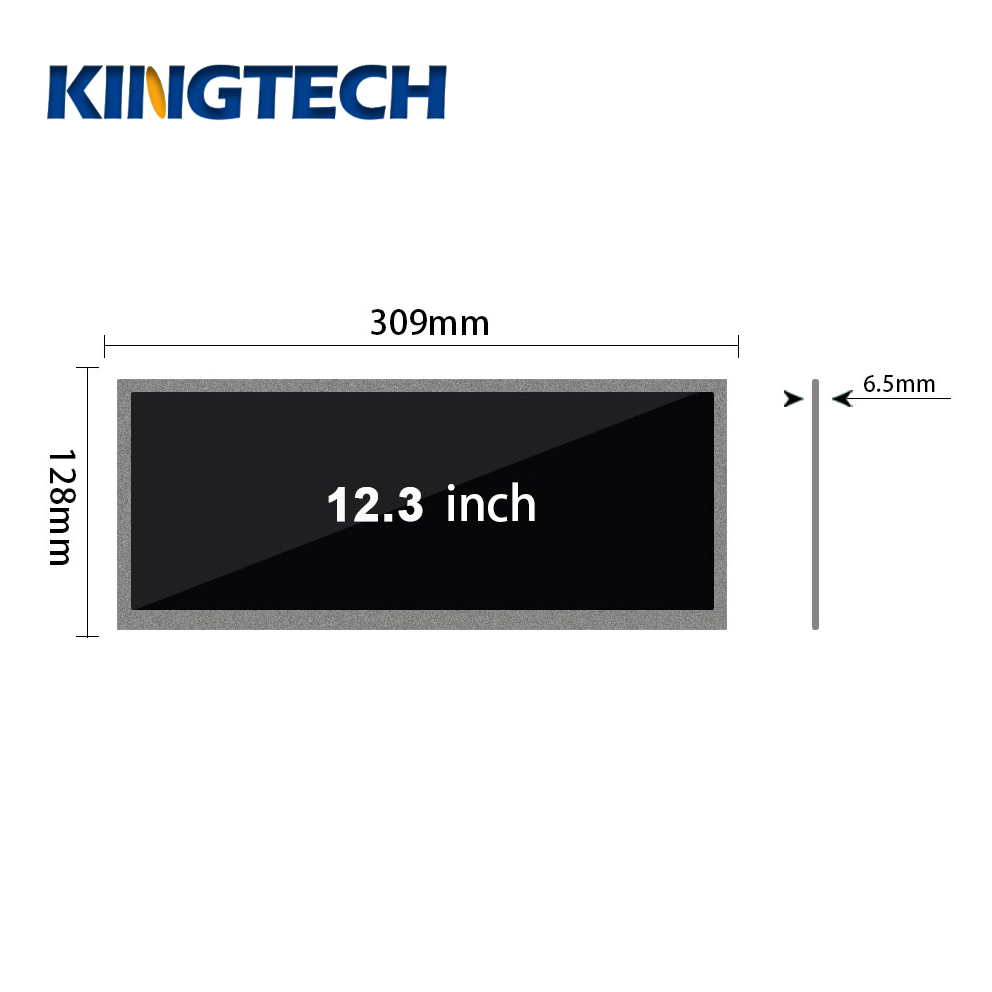

| Outline Dimension (mm) | 310.00*128.00*7.00 |
| Active Area (mm) | 292.03*109.51 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | / |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial or outdoor, advertisement, E-bike, thermostat, video door, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- Bar type display
- Stable supply
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- -30~80Wide working temperature
- Can custom resistive touch and capacitive touch
