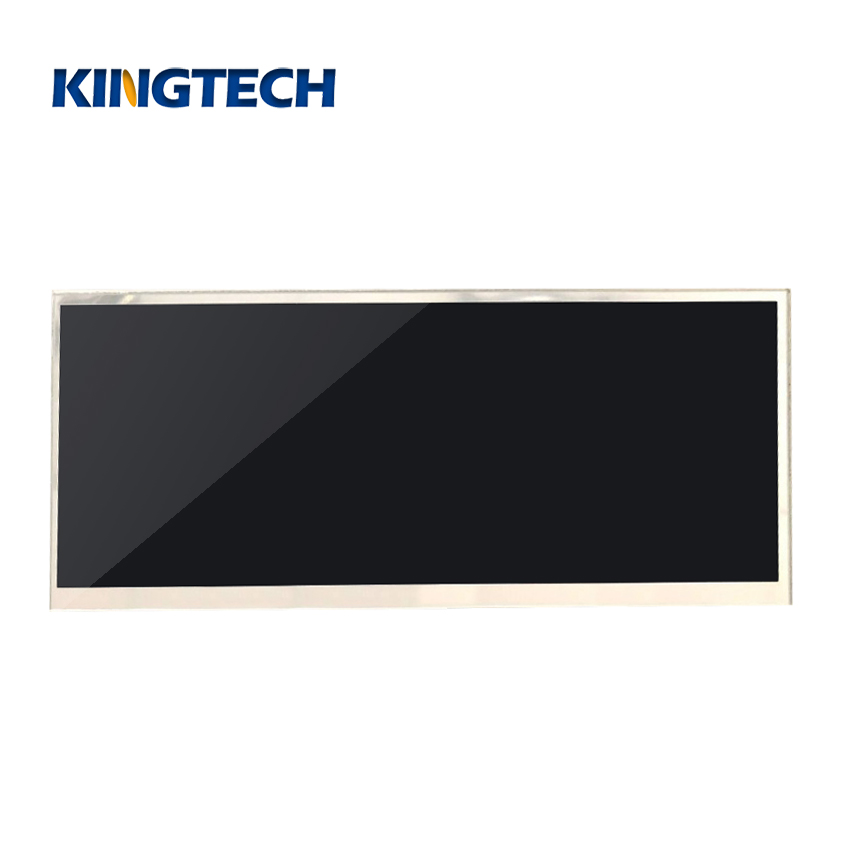

12.3 inch 1920*720 380nits TFT module display
| Item | 12.3inch 1920×720 IPS TFT LCD module |
| Model No. | PV012306T0260H-CO |
| Resolution | 1920*720 |

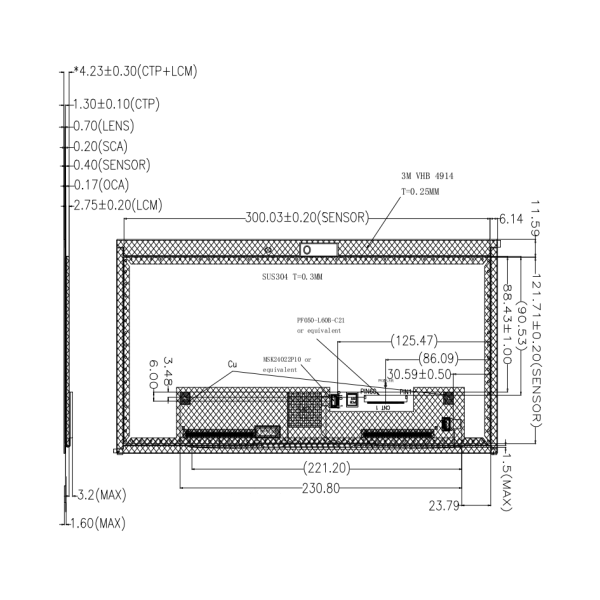

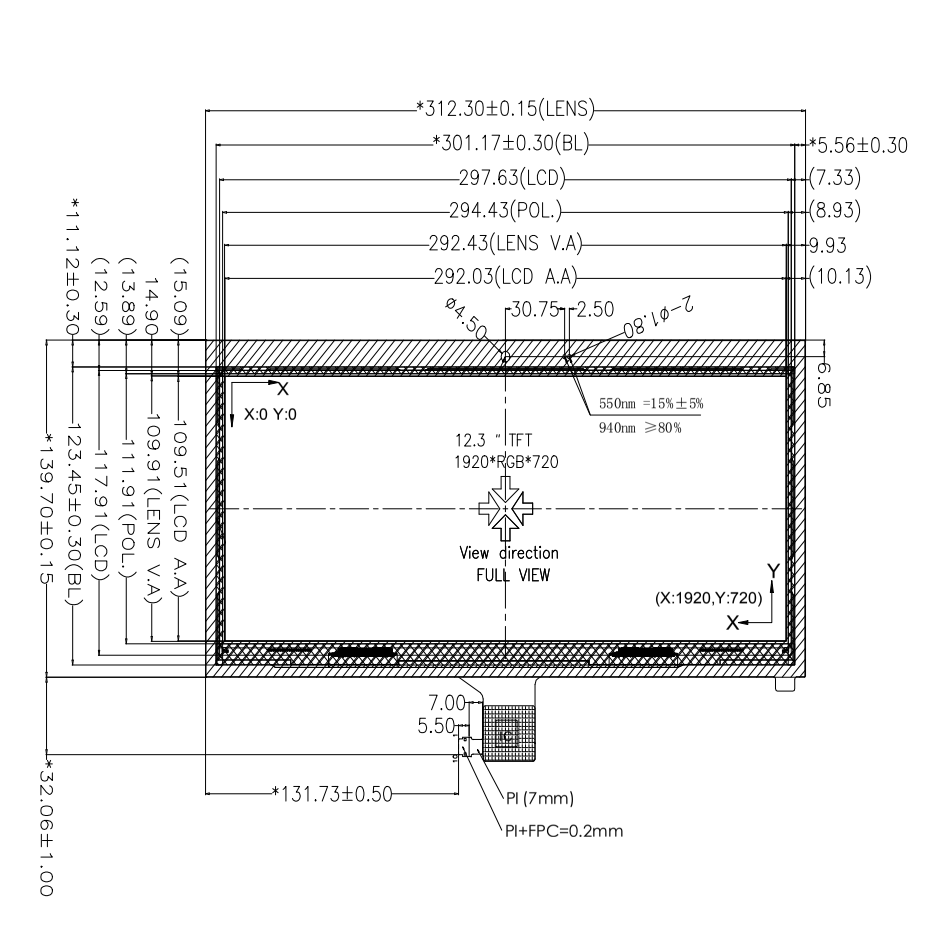

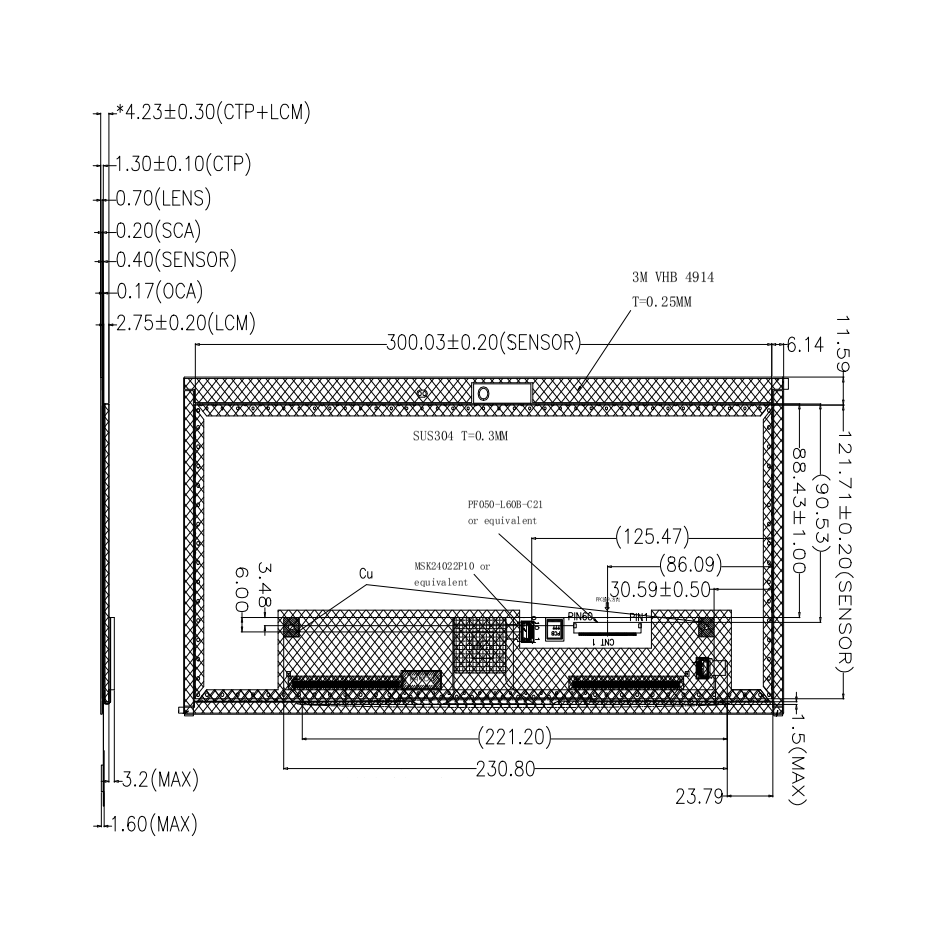

| Outline Dimension (mm) | 312.3*139.70*4.23 |
| Active Area (mm) | 292.03*109.51 |
| Viewing Angle | All |
| Brightness | 380nits |
| Interface | LVDS |
| Backlight | 9*6LED |
| Driving IC | RM5366B |
| PIN No. | 60 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, advertisement and thermostat, video door, automotive, 3D printer |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- -30~80Wide working temperature
- Can custom resistive touch and capacitive touch
