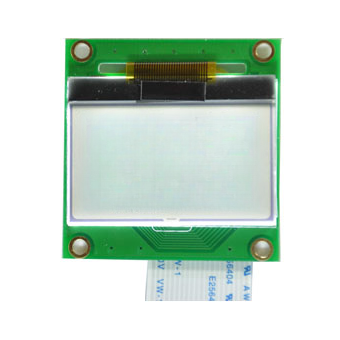

128×64 lcd controller board FSTN Positive
| Resolution | 128×64 lcd controller board |
| Display mode | FSTN, Positive |
| PCB size | 44x45x8.5mm |
| VA size | 38x22mm |
| AA size | 35.81×19.81mm |
| dot size | 0.25×0.28mm |
| Viewing angle | 12:00 |
| Driving method | 1/65 Duty, 1/9 Bias |
| Controller | NT7532 , 6800 Series MPU |
| Backlight | White, Vf=4.0, If=40mA(max.) |
| Topr | -20~+70°c |
| Tstg | -30~+80°c |
For product pricing,customization,or other inquiries:
Share to:
1) Resolution:128×64 lcd controller board
2) Display mode: FSTN, Positive
3) PCB size: 44x45x8.5mm
4) VA size: 38x22mm
5) AA size: 35.81×19.81mm
6) dot size: 0.25×0.28mm
7) Viewing angle: 12:00
8) Driving method: 1/65 Duty, 1/9 Bias
9) Controller: NT7532 , 6800 Series MPU
10) Backlight: White, Vf=4.0, If=40mA(max.)
11) Topr: -20~+70°c
12) Tstg: -30~+80°c
