15.6 inch 1920*1080 TFT display
15.6 inch 1920*1080 TFT display
15.6 inch 1920*1080 TFT display

15.6 inch 1920*1080 TFT display

Item 15.6 inch IPS 1920*1080 TFT display
Model No. PV156009Y0640K
Resolution 1920*1080

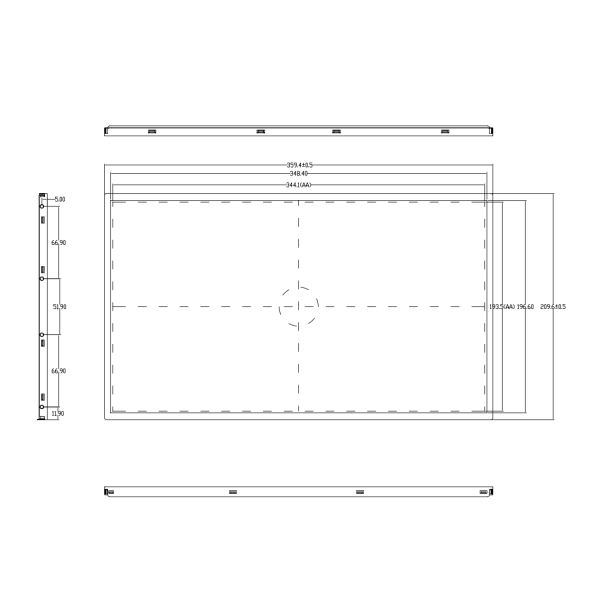

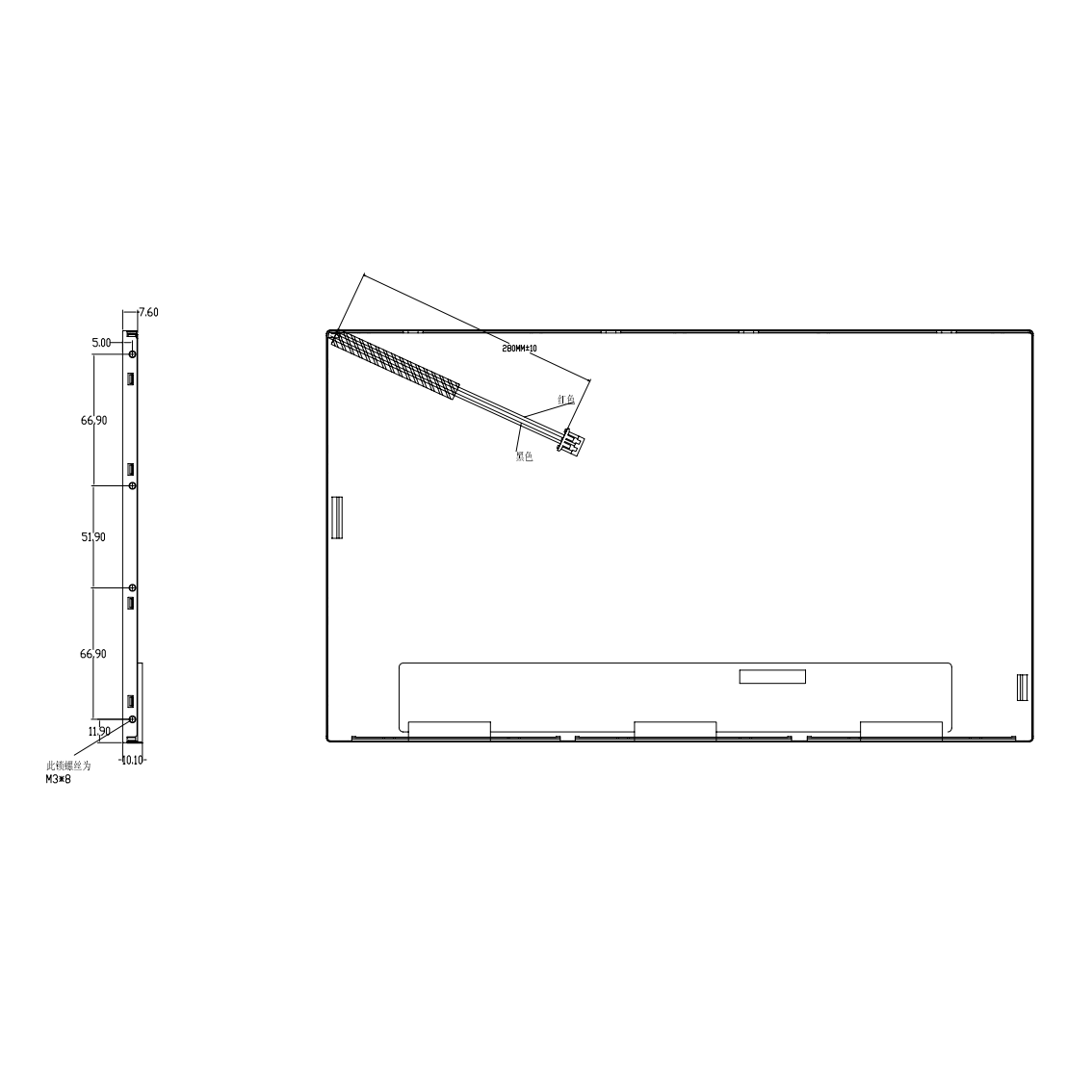

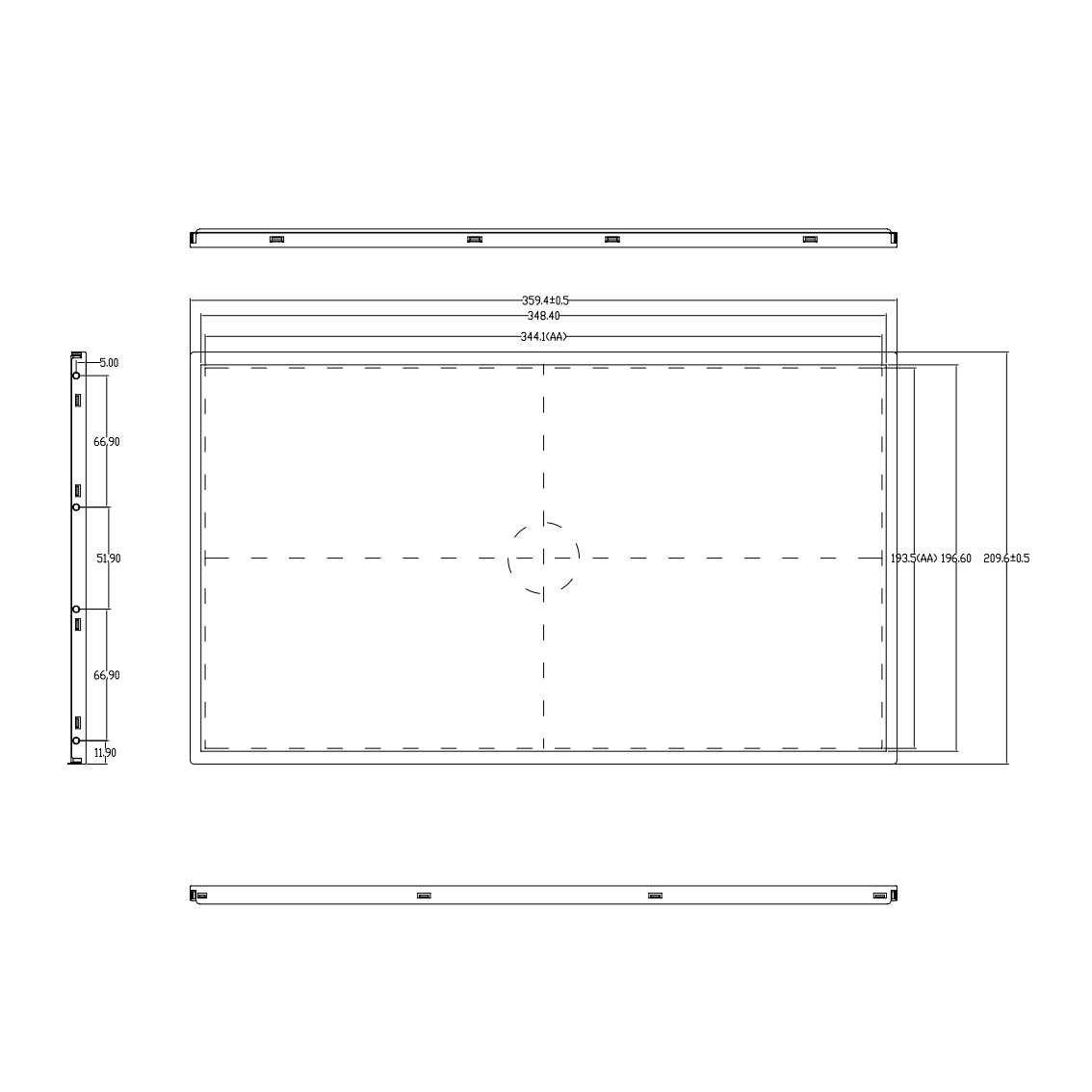

Outline Dimension (mm) 359.4*209.6*10.1
Active Area (mm) 344.16 *193.59
Viewing Angle All
Brightness 750nits
Interface LVDS
Backlight /
Driving IC /
PIN No 40
Operating Temperature 0~50C
Storage Temperature -20~60C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 15.6 inchTFTdisplay
  2. 1920*1080
  3. Stable supply
  4. IPS/Full/Wide/All viewing angle
  5. LVDSinterface
  6. 750nits brightness/Sunlight readable/High brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial
