18.5 inch 1366*768 TFT LCD module
| Item | 18.5 inch 1366*768 TFT LCD module |
| Model No | PV185001TX30B |
| Resolution | 1366*768 |
| Outline Dimension | 430.37mm*254.6mm*11.2mm |
| Active Area(mm) | 413.4mm*233.4mm |
| Interface | LVDS |
| Viewing Angle | IPS |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -15 to +65℃ |
| Storage Temperature | -20 to +70℃ |
| Brightness | 930nits |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
18.5 inch IPS 1366×768 resolution LVDS 930ints brightness lcd module
1.PV185001TX30B mainly application for Advertising display device.
2.It with IPS viewing angle,1366×768 resolution ,LVDS interface ,930 nits high brightness .
3.And it can custom the capacitive and resistive touch panel as customer requirement .
4.This model with high resolution and high brightness , the excellent display effect , very suitable for the Advertising equipment and outdoor device application .

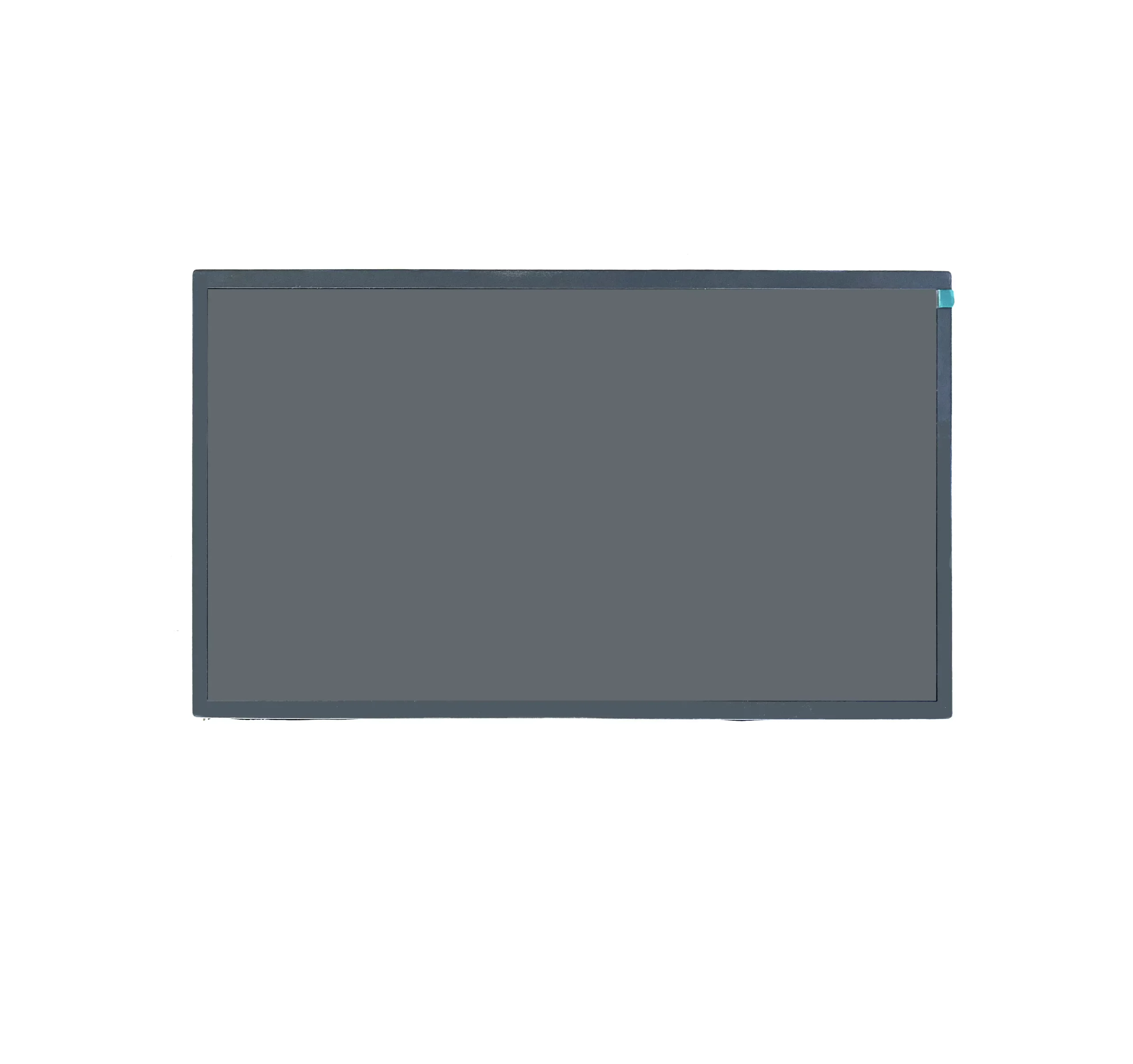

18.5 inch 1366*768 TFT LCD module Front View

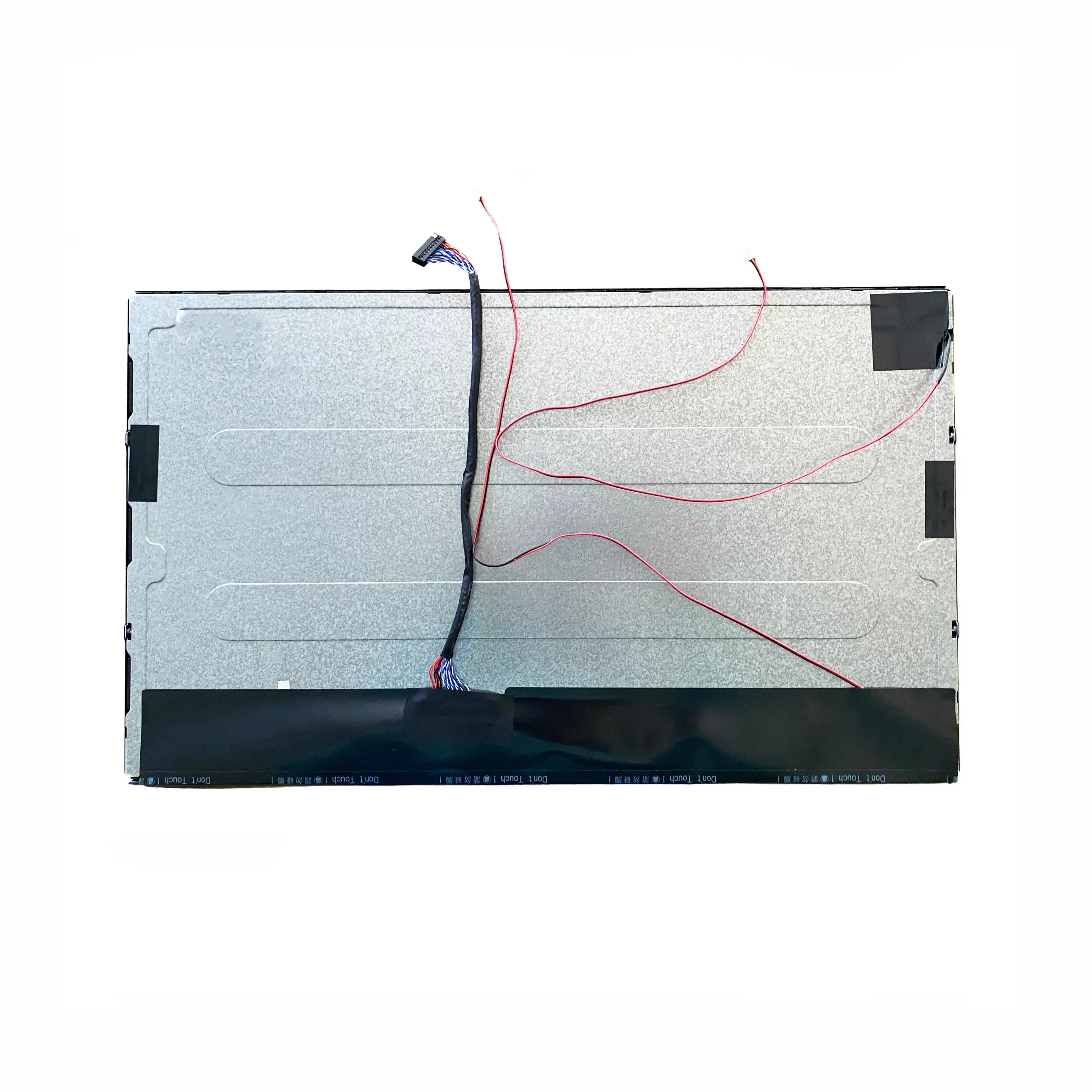

18.5 inch 1366*768 TFT LCD module Back view
