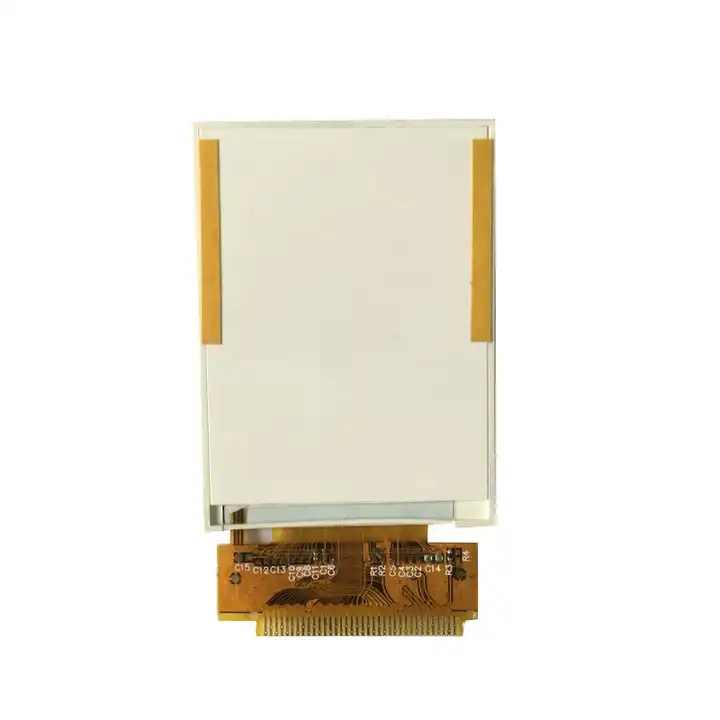

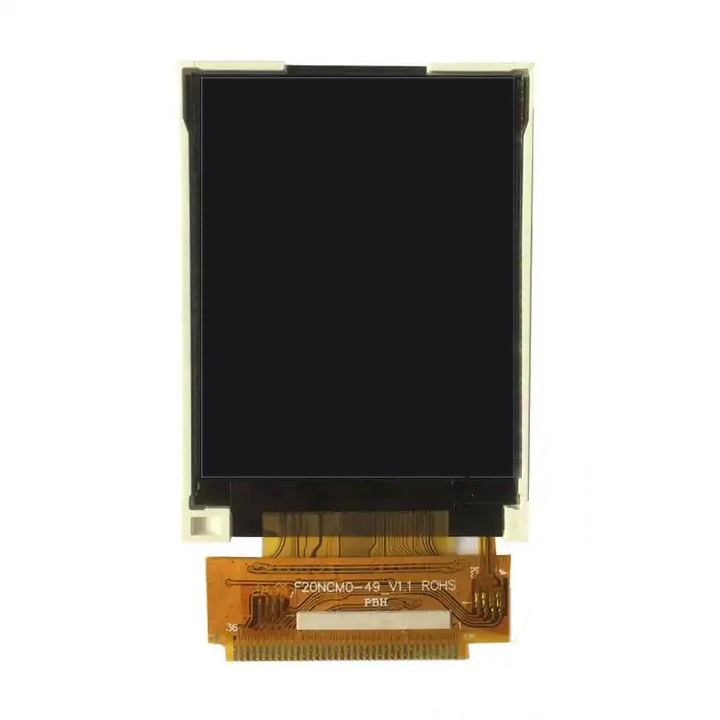

2.0 inch 176*220 resolution TFT LCD display
| Item | 2inch 176×220 TFT LCD module display |
| Model No. | PV02011T0120P |
| Resolution | 176*220 |
| Outline Dimension (mm) | 37.68*51.3*2.23 |
| Active Area (mm) | 31.68*39.60 |
| Viewing Angle | 6 O’clock |
| Brightness | 300nits |
| Interface | 8BIT MCU |
| Backlight | 1*3 LED |
| Driving IC | ST7775R |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 176*220
- Stable supply
- All/Full/Wide/IPS viewing angle
- 8BIT MCU interface
- 300nits/High brightness/Sunlight readable/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
