2.0 inch 240*320 resolution TFT LCD display
| Item | 2.0 inch 240*320 SPI/RGB/MCU IPS lcd display |

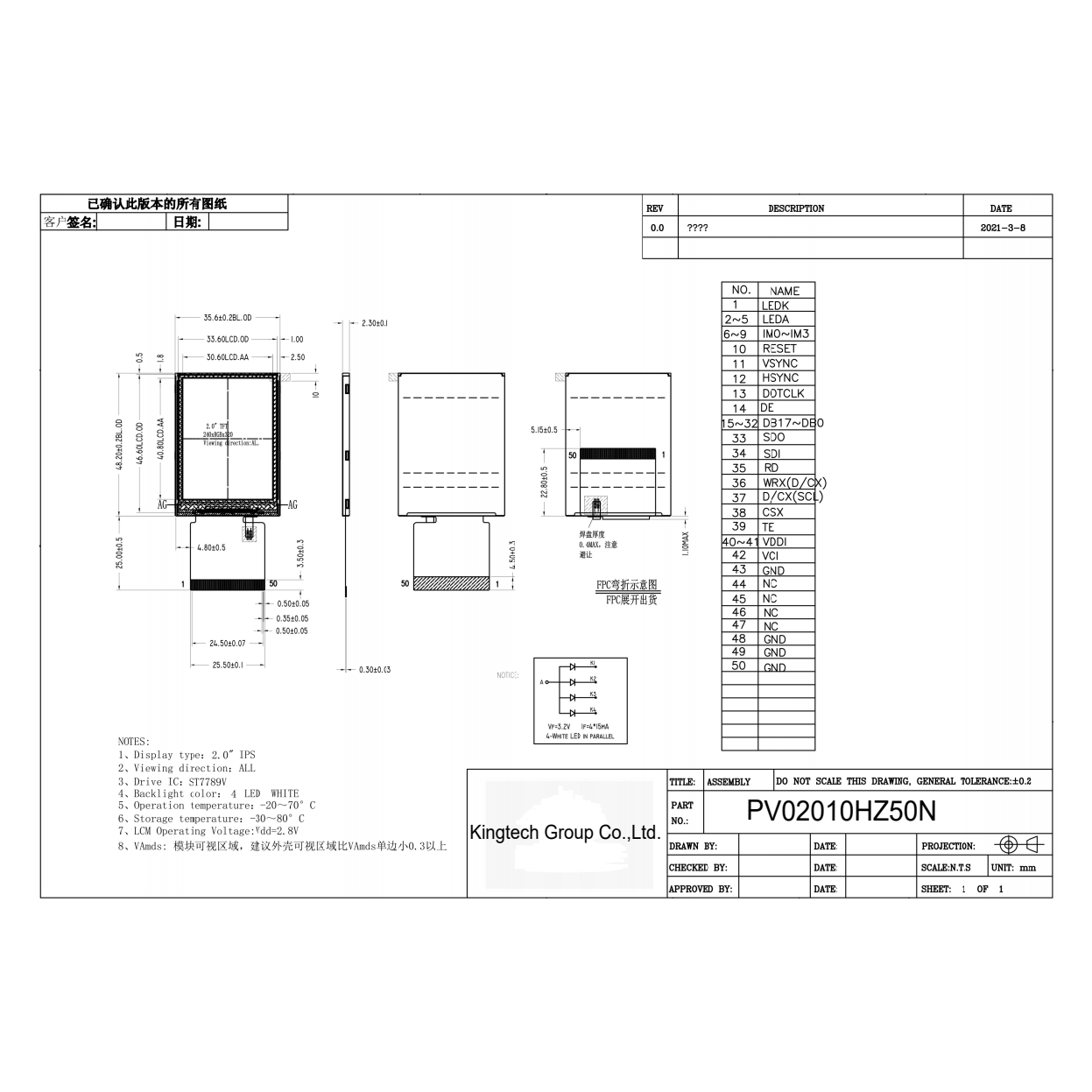

| Model No. | PV02010HZ50N |
| Resolution | 240*320/QVGA |
| Outline Dimension (mm) | 35.60*48.20*2.30 |
| Active Area (mm) | 30.60*40.80 |
| Viewing Angle | IPS |
| Brightness | 500nits |
| Interface | SPI/RGB/MCU |
| Backlight | 1*4 LED |
| Driving IC | ST7789V |
| PIN No. | 50 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 240*320/QVGA
- Stable supply
- All/Full/Wide/IPS viewing angle
- SPI/RGB/MCU interface
- 500nits/High brightness/Sunlight readable/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
