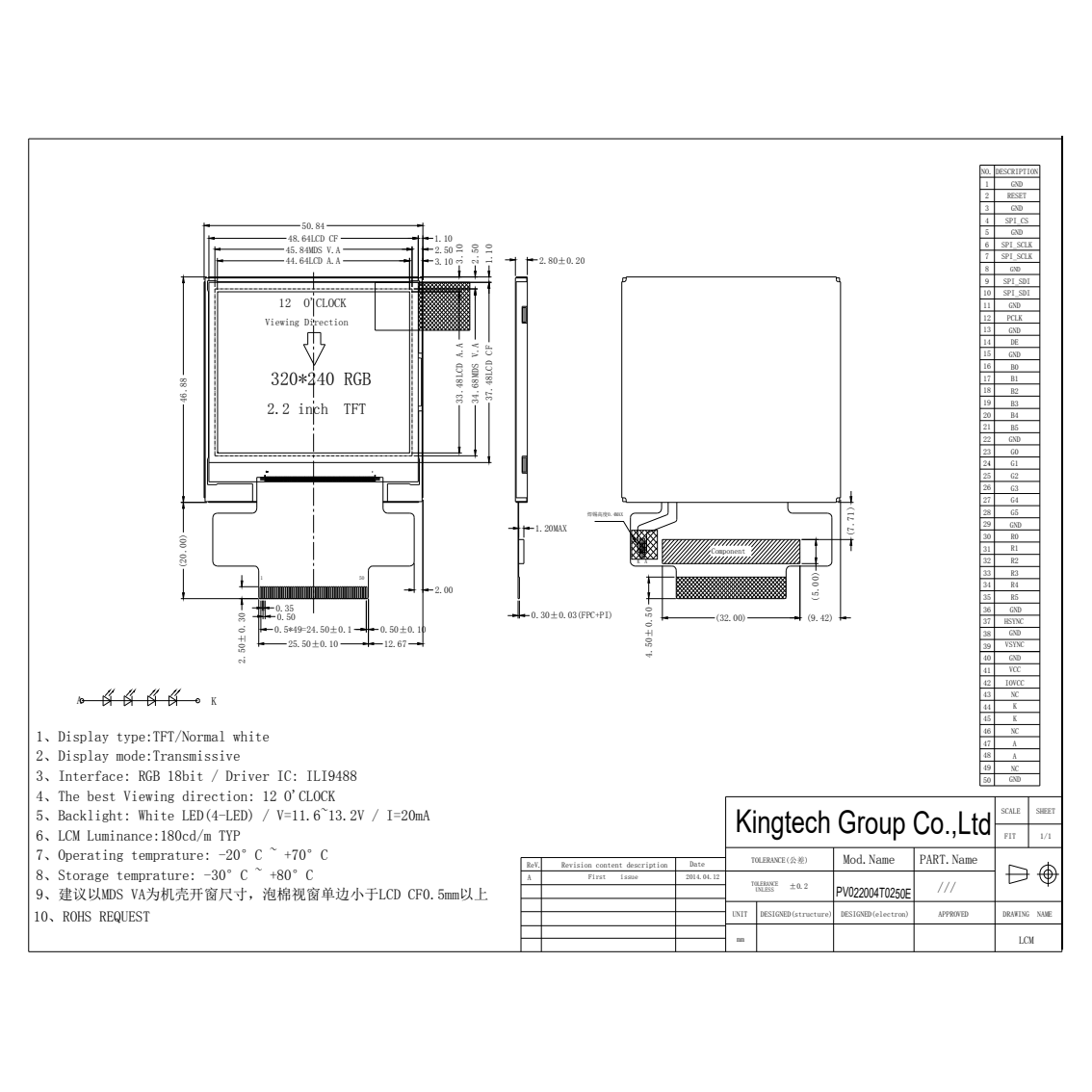

2.2 inch 320*240 resolution TFT LCD display
| Item | 2.2 inch 320×240 RGB interface lcd display |
| Model No. | PV022004T0250E |
| Resolution | 320*240/QVGA |
| Outline Dimension (mm) | 50.84*46.88*2.80 |
| Active Area (mm) | 44.64*33.48 |
| Viewing Angle | 12 O’clock |
| Brightness | 180nits |
| Interface | RGB |
| Backlight | 1*4 LED |
| Driving IC | ILI9488 |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 240*320/QVGA
- Stable supply
- TN viewing angle
- RGB interface
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
