2.4 inch 240*320 resolution TFT LCD display
| Item | 2.4 inch IPS 240*320 RGB+SPI interface lcd display |
| Model No. | PV02422H0140Y |
| Resolution | 240*320/QVGA |

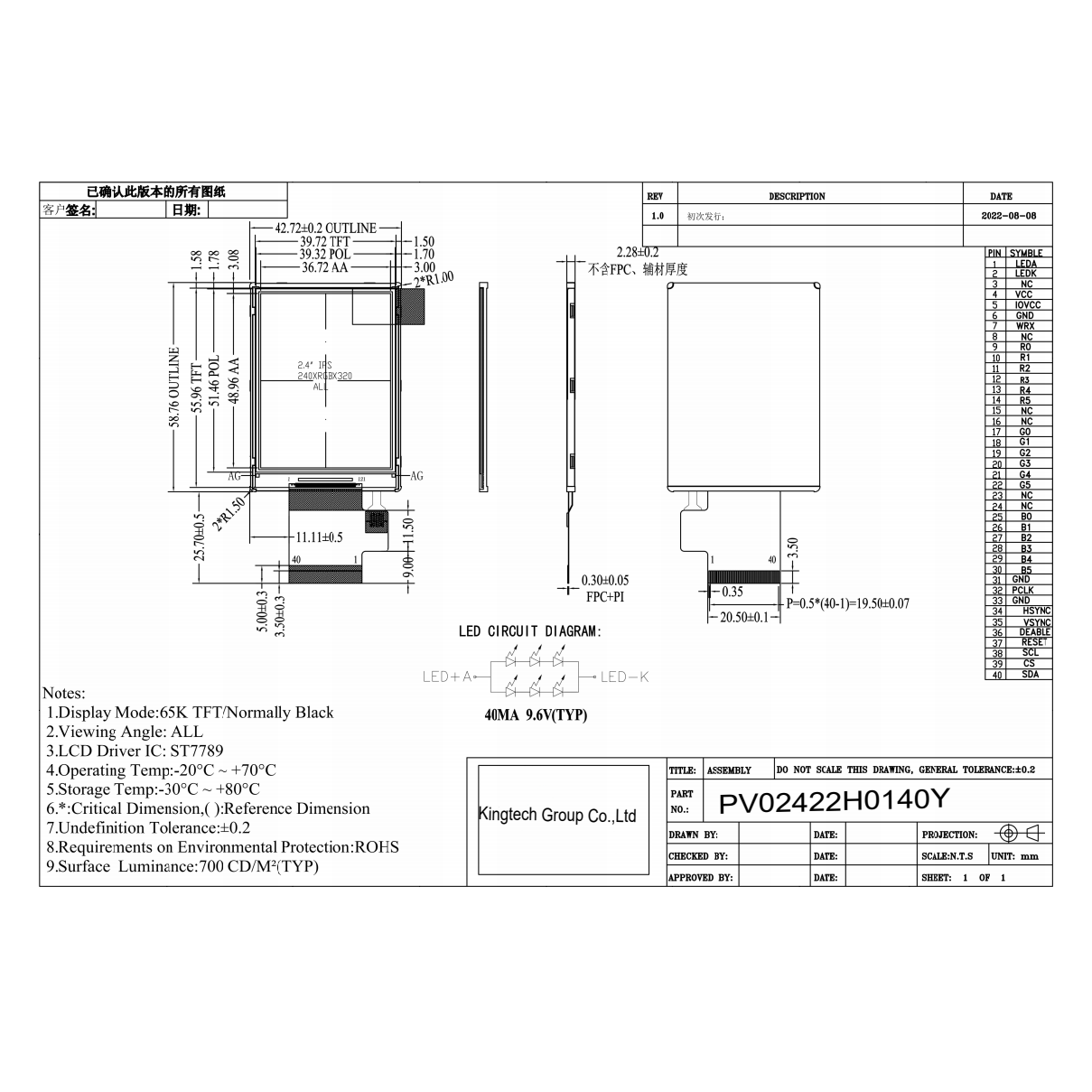

| Outline Dimension (mm) | 42.72*58.76*2.28 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | All |
| Brightness | 700nits |
| Interface | RGB+SPI |
| Backlight | 3*2LED |
| Driving IC | ST7789 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 240*320/QVGA
- Stable supply
- IPS/Full/Wide/All viewing angle
- 4 Line RGB+SPI interface
- 700nits/High brightness/ Sunlight readable/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch, E-bike
