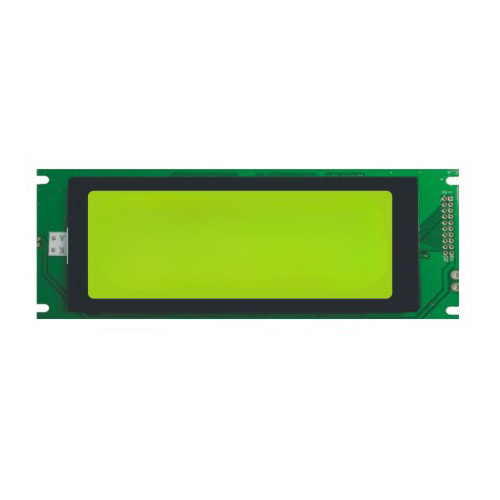

256×64 STN Positive Yellow/Green Transflective
| Display format | 256×64 dots |
| Display mode | STN, Positive,Yellow/Green, Transflective |
| PCB size | 180x65x12.5mm |
| VA size | 131.5×38.8mm |
| AA size | 127.96×34.52mm |
| dot size | 0.46 x 0.46mm |
| Viewing angle | 6:00 |
| Driving method | 1/32 Duty, 1/6 Bias |
| Controller | ST7920 |
| Backlight | 8-Bit Parallel Interface |
| Topr | -25~ +75°c |
| Tstg | -35~ +85°c |
| VDD | 5.0V |
| Backlight | Array Yellow-green, 5.0V 330mA |
For product pricing,customization,or other inquiries:
Share to:
1) Display format: 256×64 dots
2) Display mode: STN, Positive,Yellow/Green, Transflective
3) PCB size: 180x65x12.5mm
4) VA size: 131.5×38.8mm
5) AA size: 127.96×34.52mm
6) dot size: 0.46 x 0.46mm
7) Viewing angle: 6:00
8) Driving method: 1/32 Duty, 1/6 Bias
9) Controller: ST7920.
10) Interface: 8-Bit Parallel Interface
11) Topr: -25~ +75°c
12) Tstg: -35~ +85°c
13) VDD: 5.0V
14) Backlight: Array Yellow-green, 5.0V 330mA
