Item | 3.34 inch round LCD display |
Model No | PV033400AR17A |
Resolution | 320×320 |
Outline Dimension | 66.20*69.30*2.66 |
Active Area(mm) | 60*60 |
Brightness | 750nits |
Viewing Angle | 12 O’clock |
Interface | MIPI |
Driving IC | ST7796SI |
PIN | 17 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | Can custom capacitive/resistive |
Board | HDMI board |
3.34 inch 320×320 MIPI round LCD display
1. PV033400AR17A mainly application for smar home, handheld device.
2. It with 320×320 resolution, MIPI interface, ST7796SI Driving IC , 600nits High brightness, existing HDMI board to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement .
4. This moduel with 600nits high brightness can be sunglith readable,It can be well used for both indoor and outdoor .

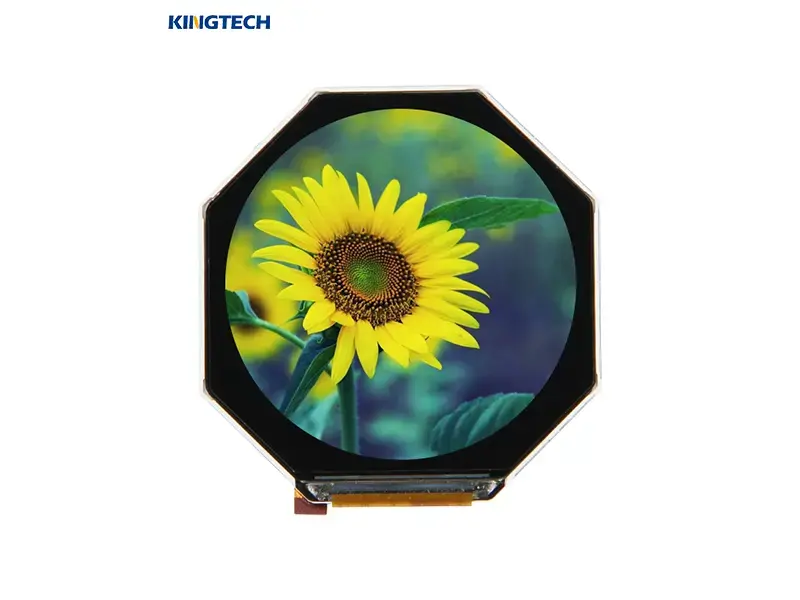

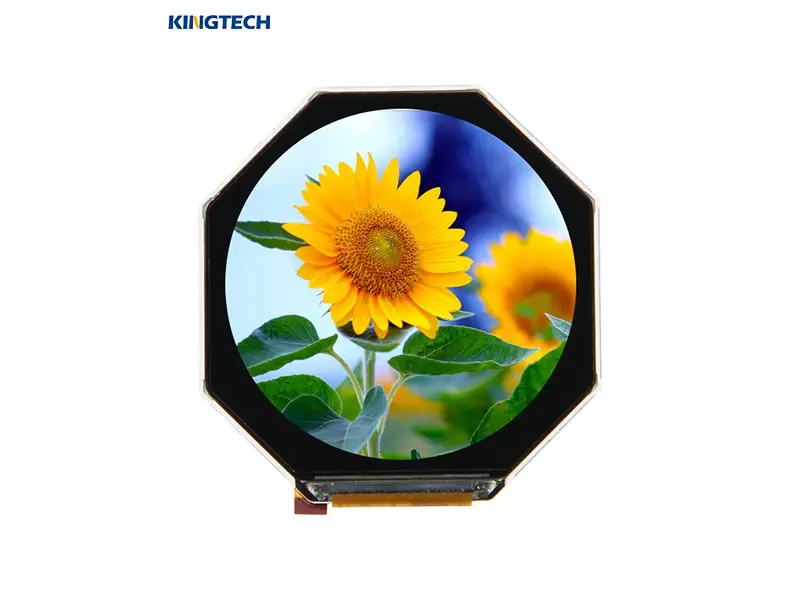

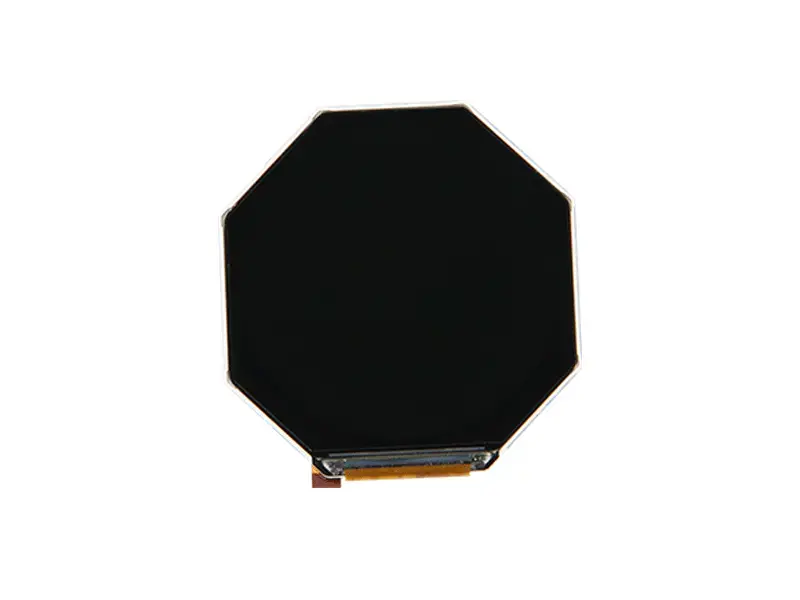

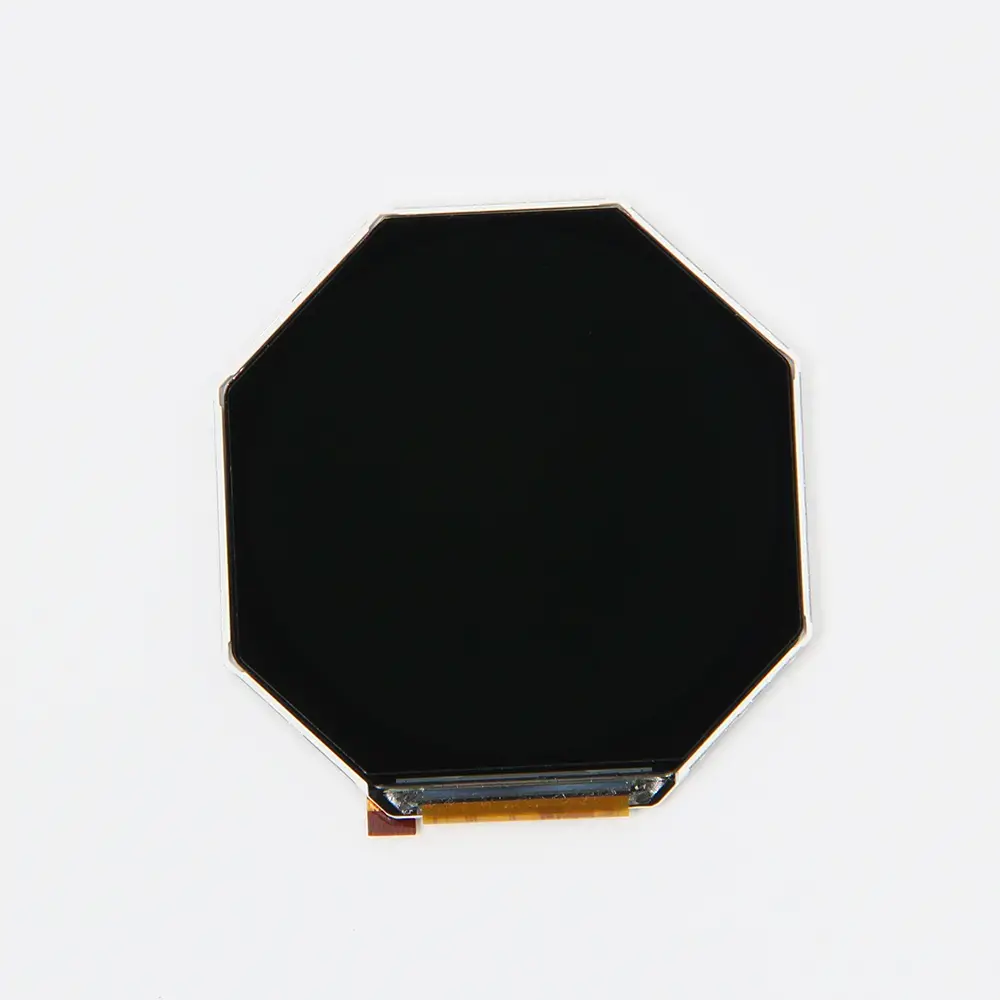

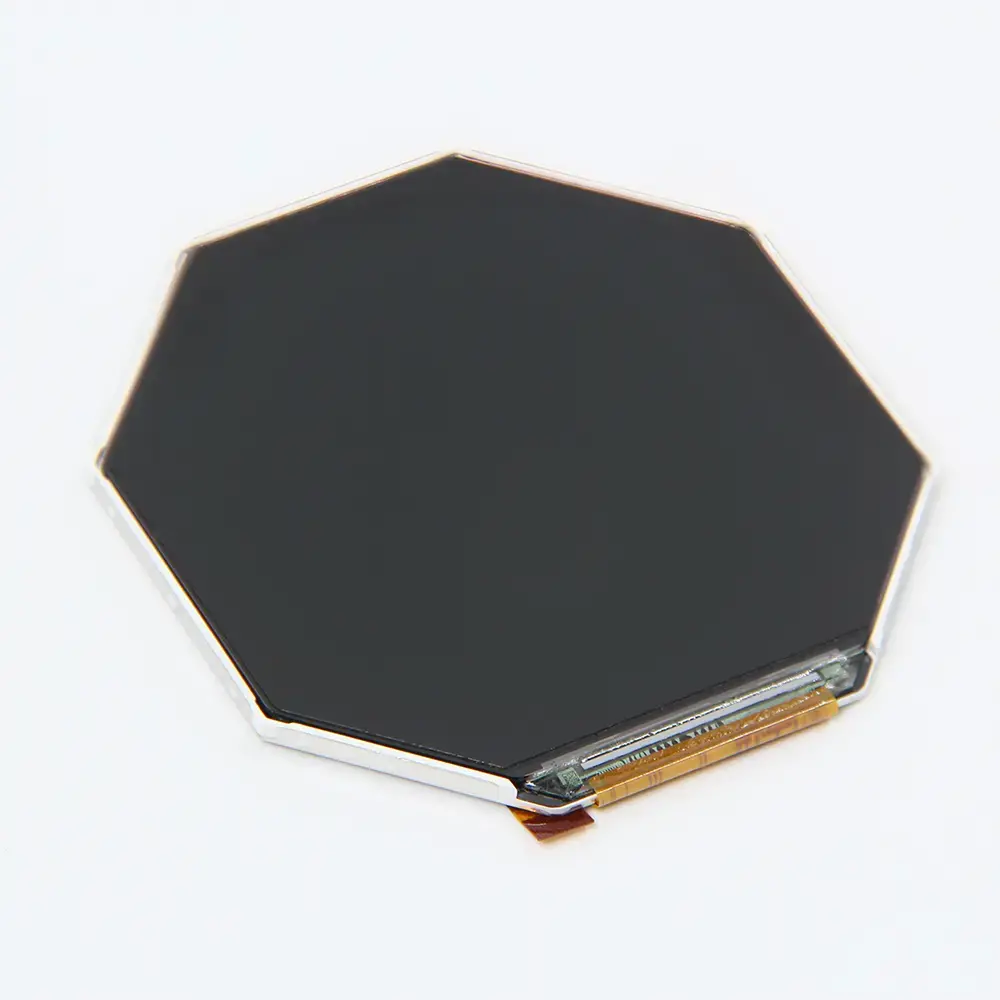

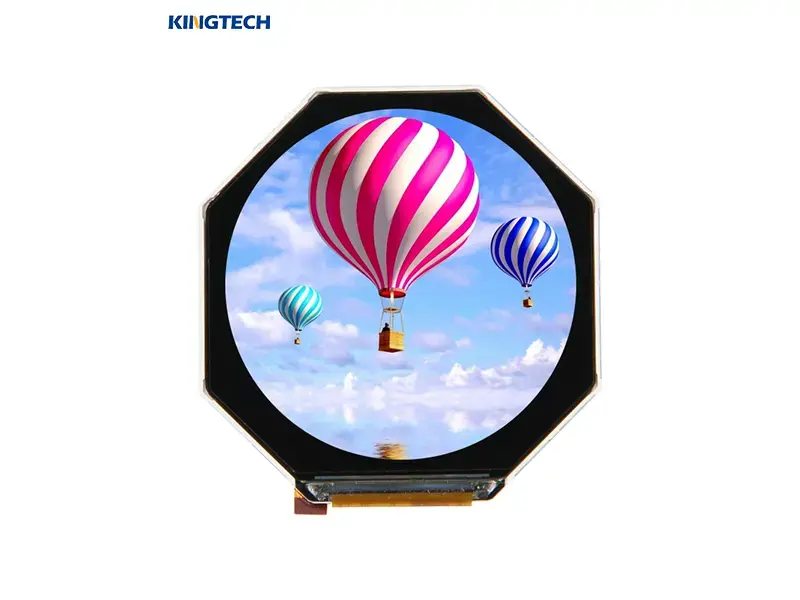

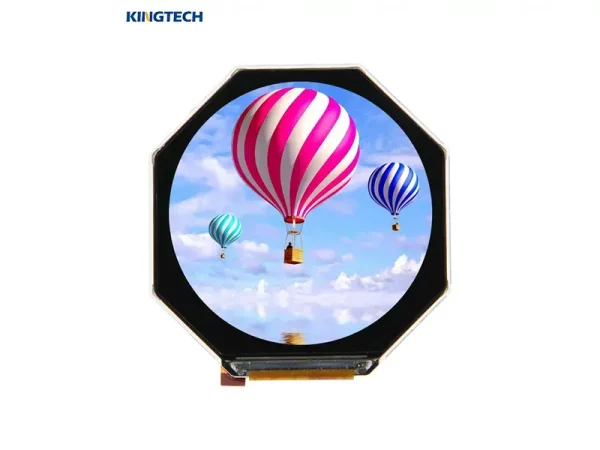

3.34inch 320×320 sunlight readable round TFT display front view

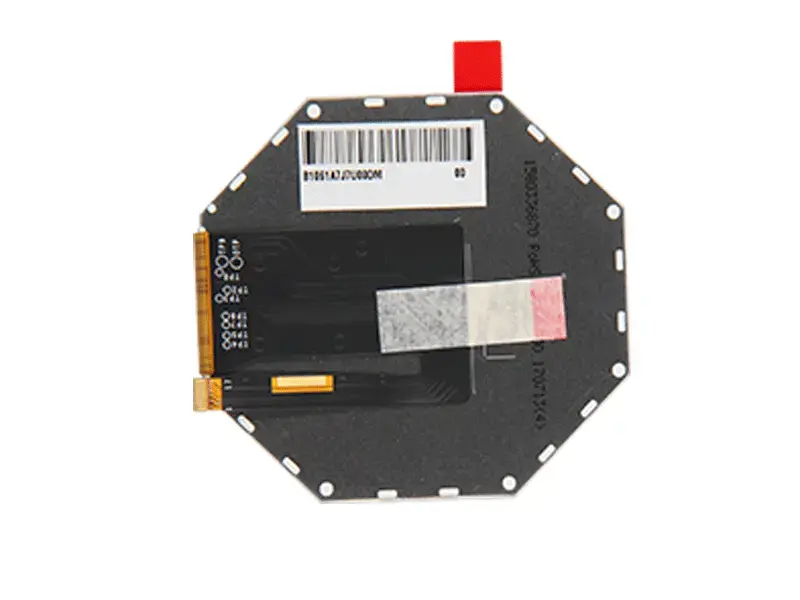

3.34inch 320×320 sunlight readable round TFT display back view

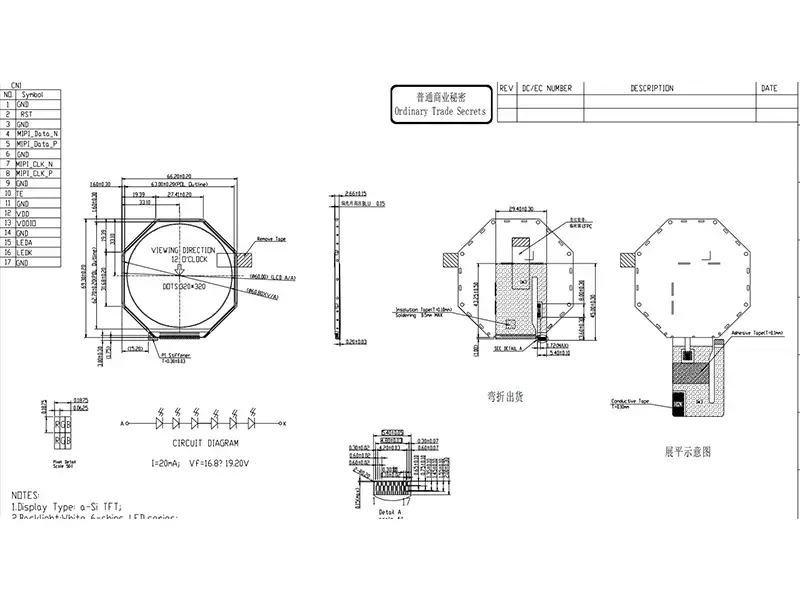

3.34inch 320×320 sunlight readable round TFT display Machine Drawing
