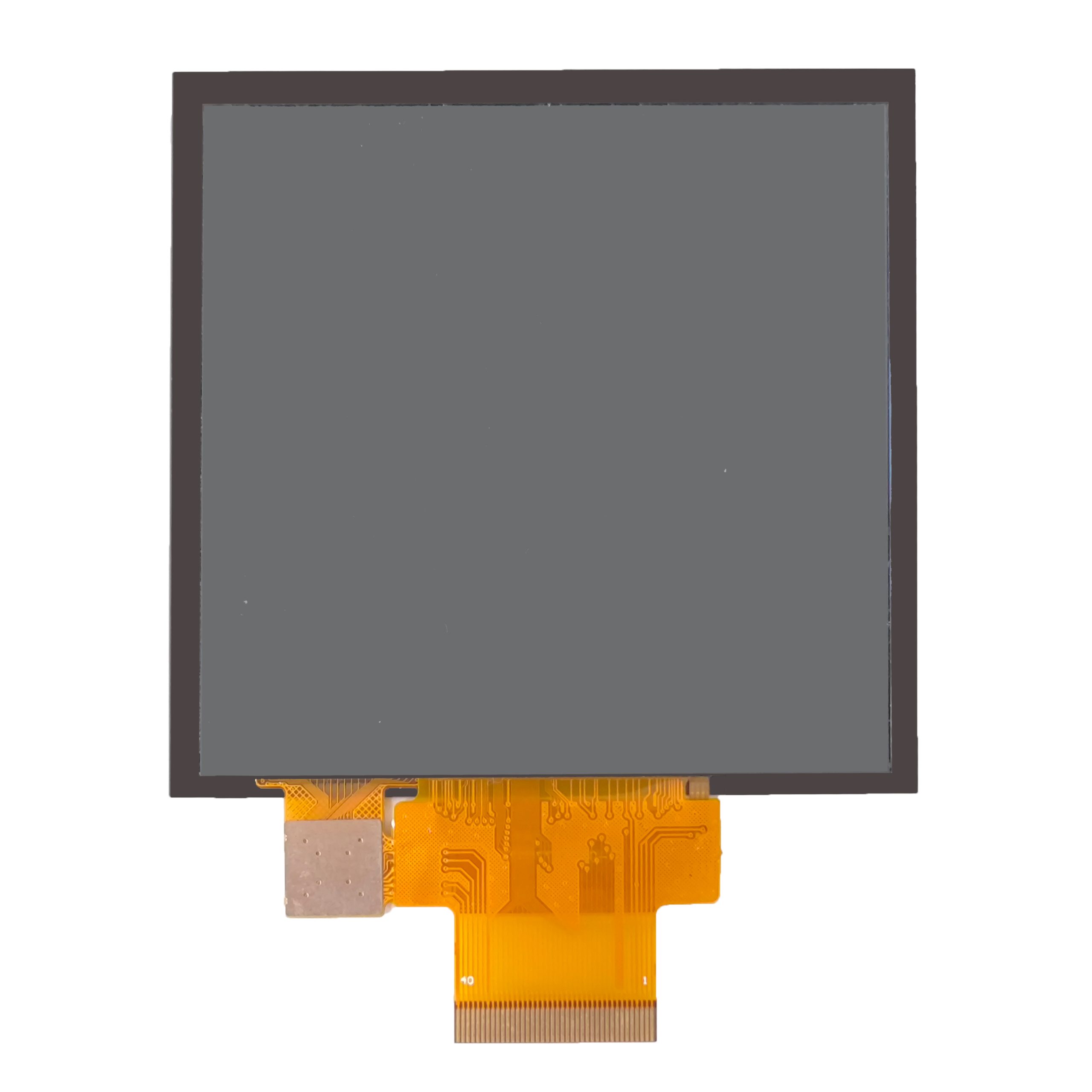

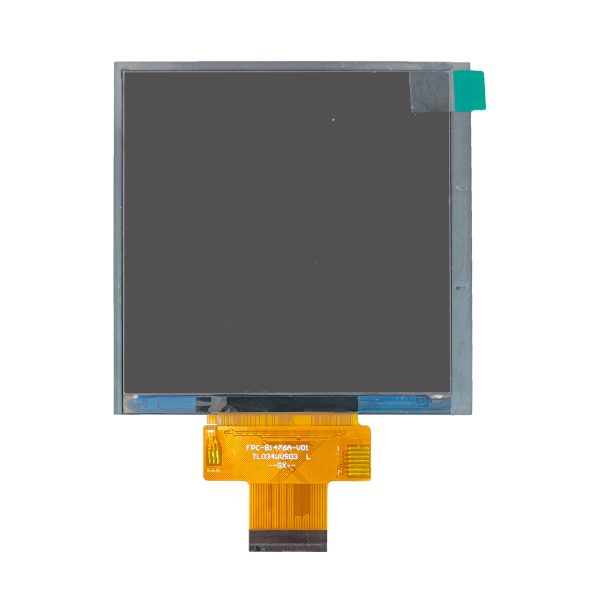

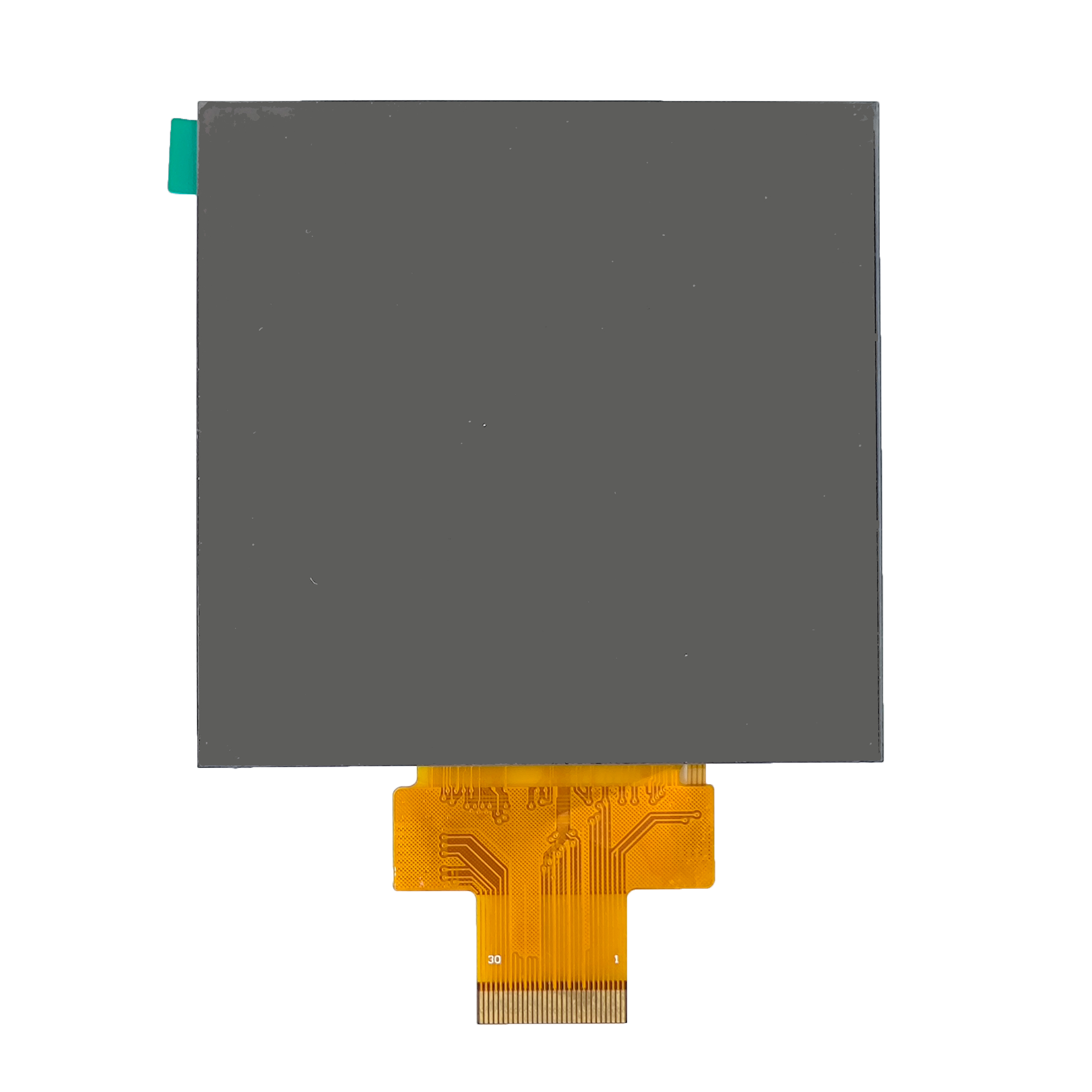

3.4 inch 480*480 TFT display
| Item | 3.4 inch IPS 480*480 square TFT display |
| Model No. | PV03403G0140D |
| Resolution | 480*480 |

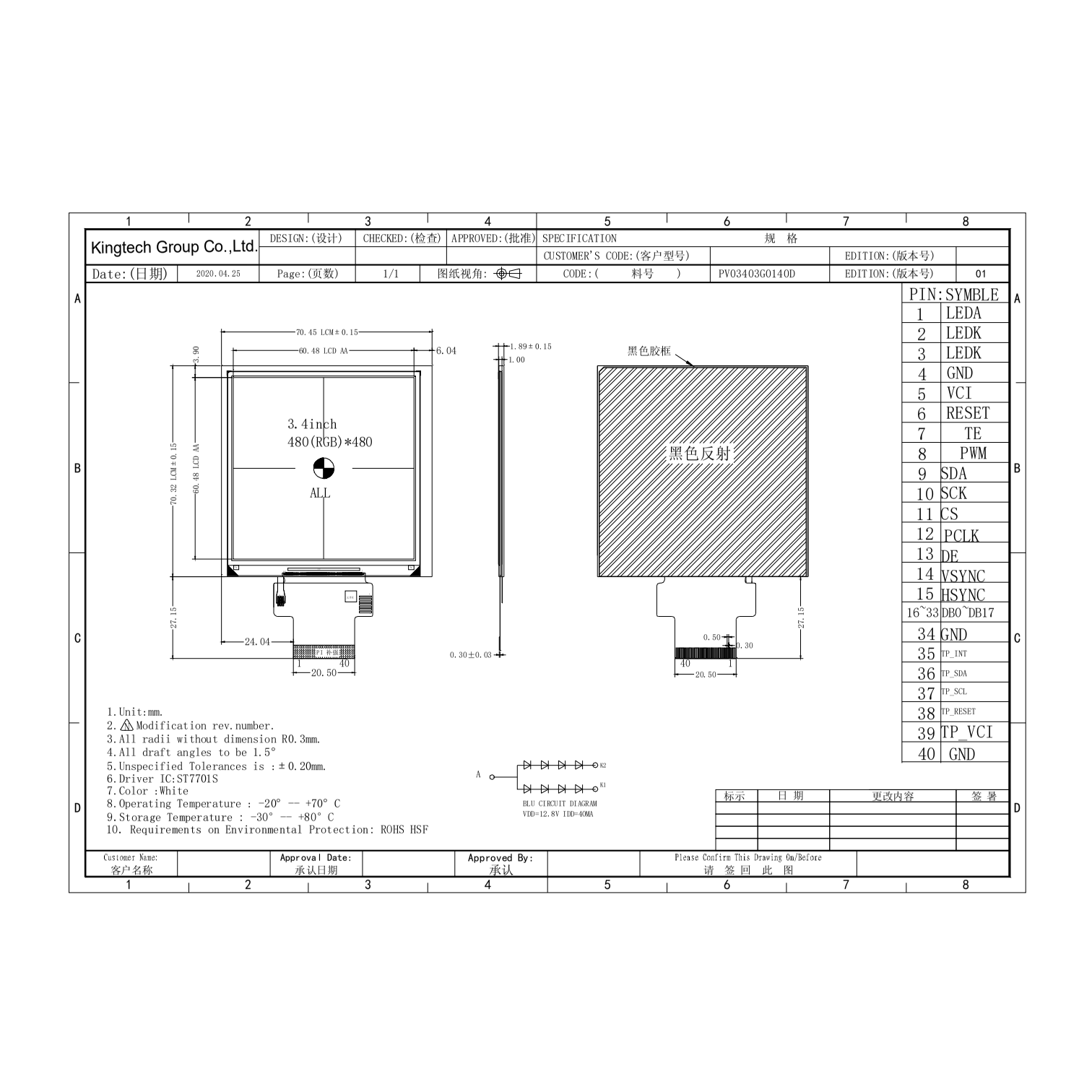

| Outline Dimension (mm) | 70.45*70.32*1.89 |
| Active Area (mm) | 60.48*60.48 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | SPI 3LINE+18BITRGB |
| Backlight | 4*2LED |
| Driving IC | ST7701S |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Smart home, Medical, Hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- 3.4 inchTFT display
- 480*480
- Stable supply
- All/Full/Wide/IPS viewing angle
- SPI 3LINE+18BITRGBinterface
- 300nits brightness/Sunlight readable/High brightness

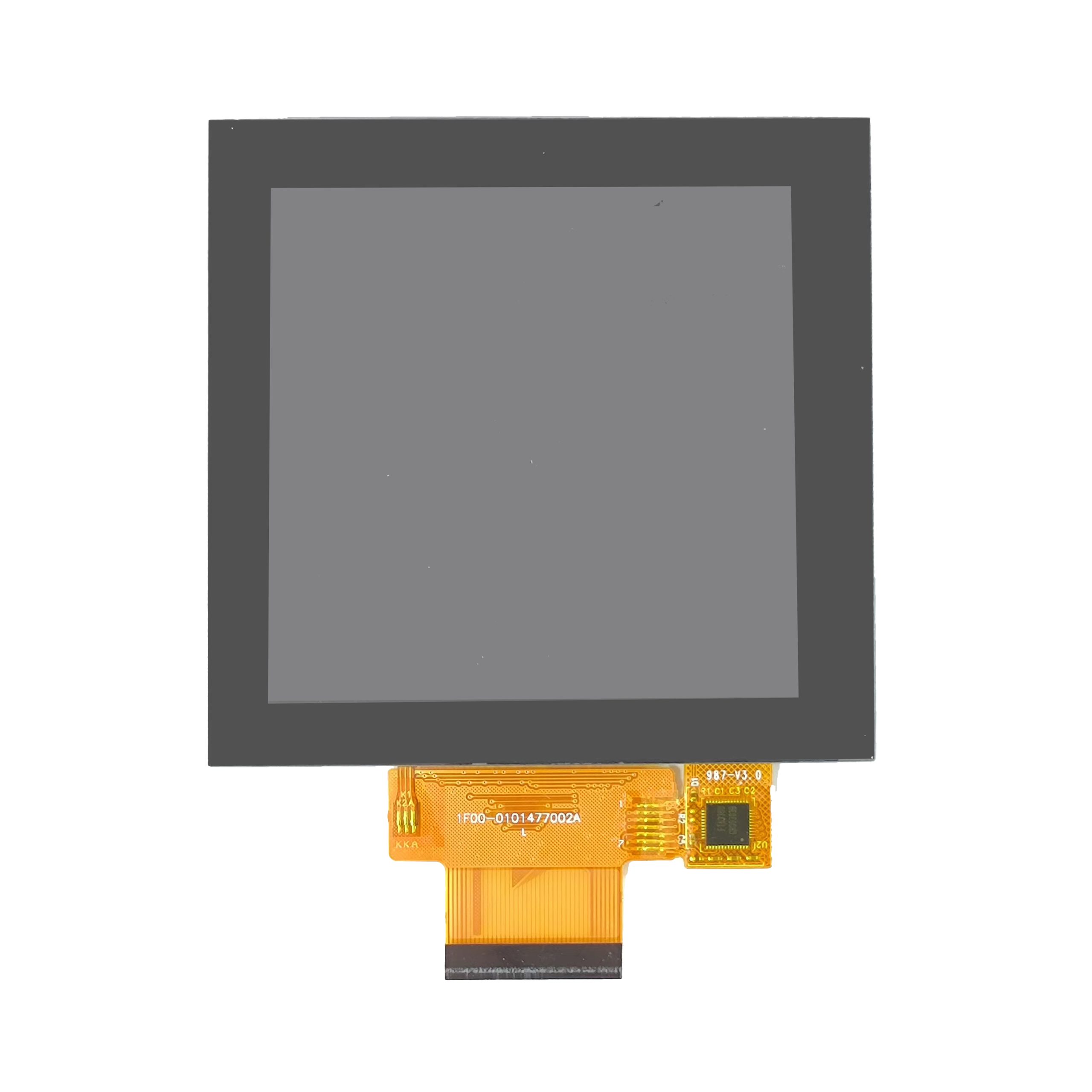

- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, Smart home
