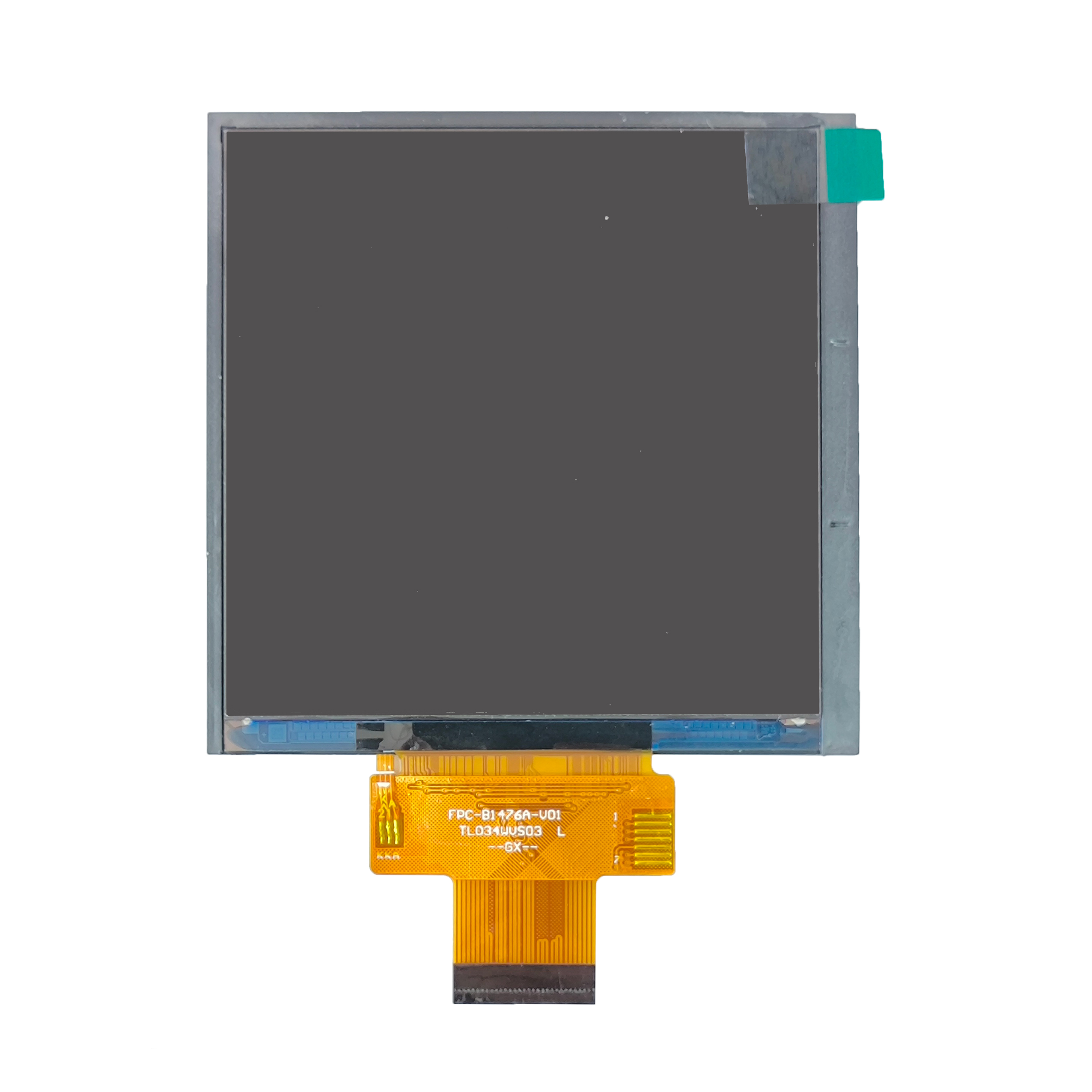

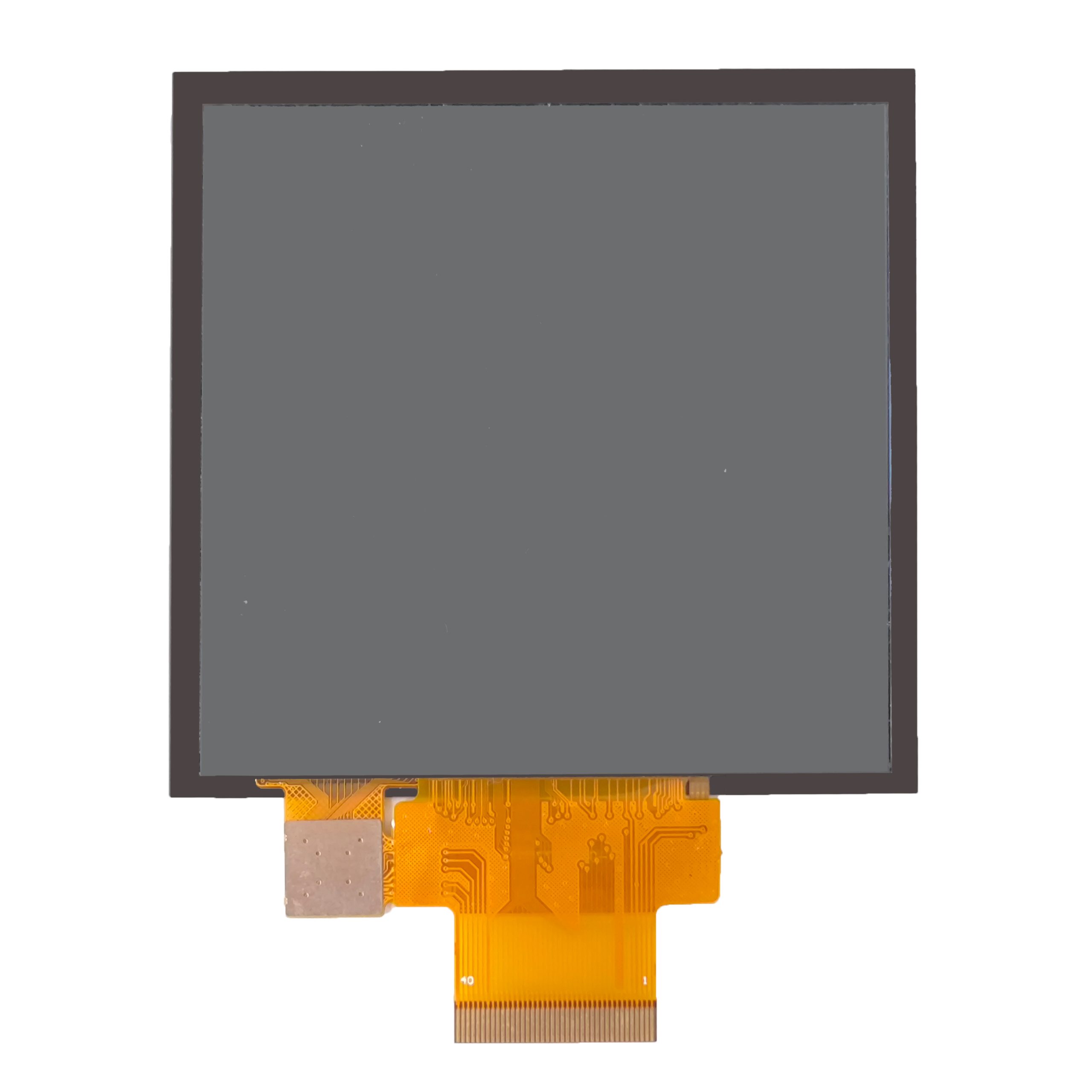

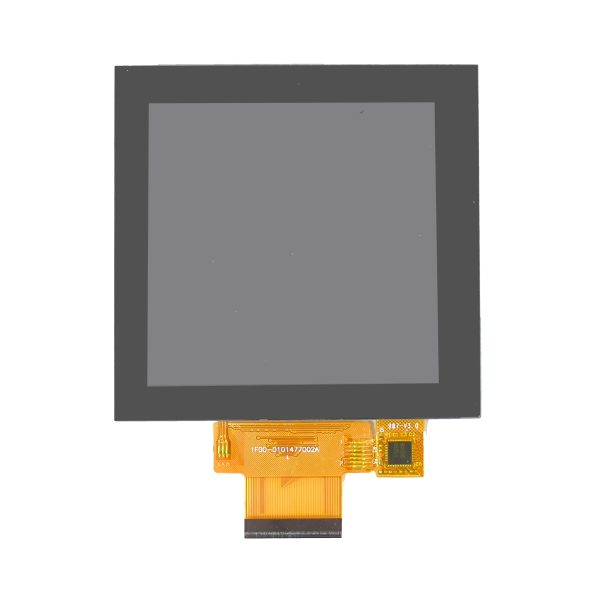

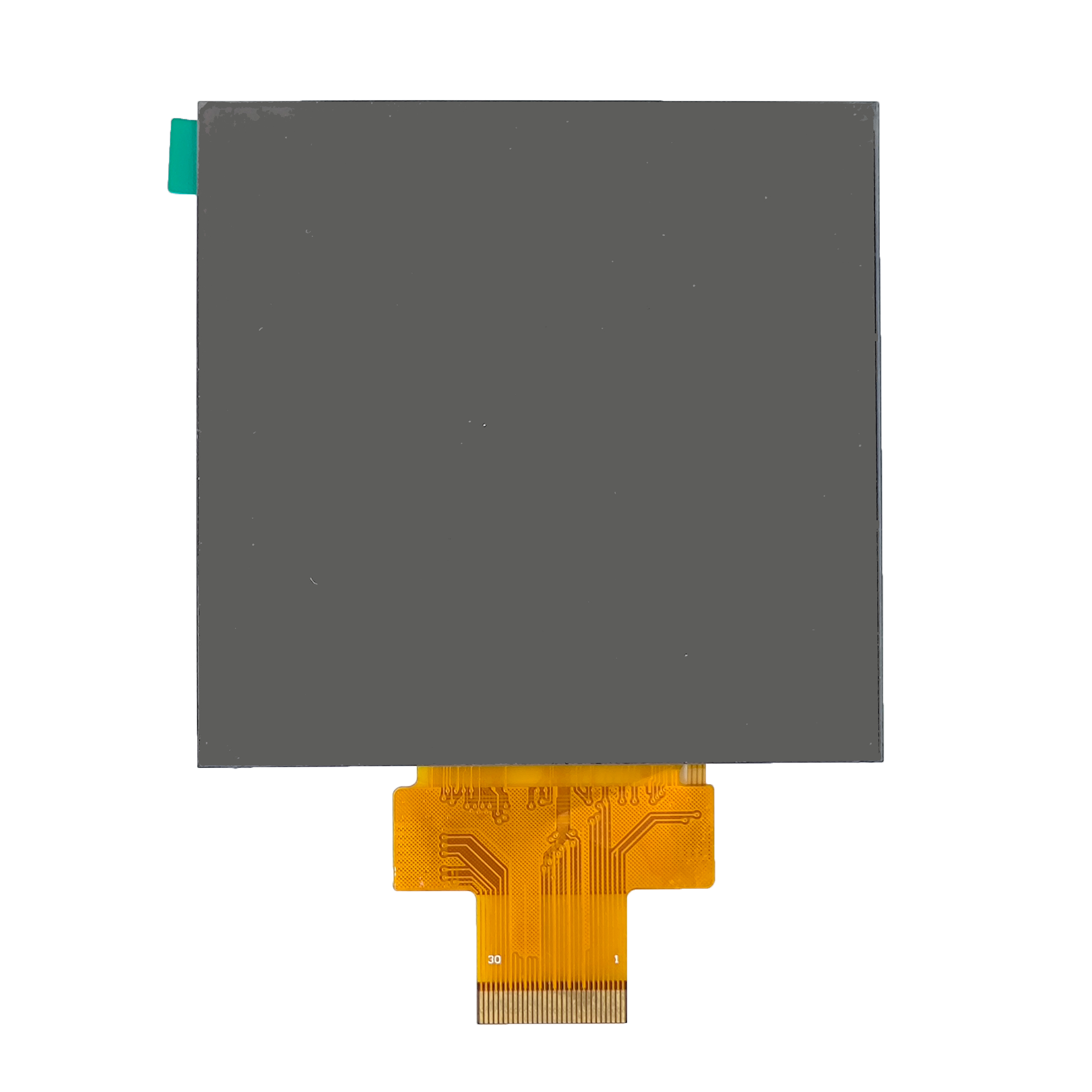

3.4 inch 480*480 TFT display with touch panel

  • Model: PV03404G0130E

  • Display Type: 3.4-inch IPS TFT LCD

  • Resolution: 480×480

  • Active Area: 60.48mm x 60.48mm

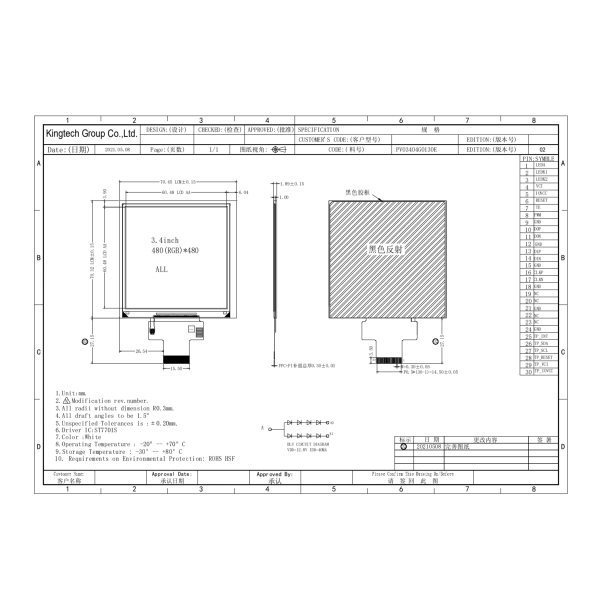

  • Outline Dimensions: 70.45mm x 70.32mm x 1.89mm

  • Interface: MIPI

  • Backlight: 4×2 LEDs

  • Brightness: 300nits (Clear visibility in moderate lighting conditions)

  • Driving IC: ST7701S

  • PIN Number: 30

  • Viewing Angle: All (Wide viewing angle for flexible positioning)

  • Operating Temperature: -20°C ~ 70°C

  • Storage Temperature: -30°C ~ 80°C

  • Touch Screen Options: Customizable resistive and capacitive touch screens

Key Features:

  • Square Display: Unique square form factor (480×480 resolution) ideal for applications requiring compact yet high-quality visual output.

  • Moderate Brightness: 300nits brightness ensures readability in indoor and controlled lighting environments.

  • MIPI Interface: Fast data transfer and reliable communication for seamless integration with modern systems.

  • Wide Viewing Angle: IPS technology guarantees consistent color reproduction and visibility from multiple angles.

  • Customizable Touch Panel: Choose between resistive (rugged, durable) or capacitive (smooth, sensitive) touch screen options based on your specific needs.

  • Compact & Durable: With a slim profile and robust design, this display is ideal for handheld, industrial, and medical devices.

For product pricing,customization,or other inquiries:

Share to:

Applications:

  • Medical Devices: Perfect for handheld medical devices, offering reliable touch interaction and crisp, clear display in compact sizes.

  • Handheld Devices: Ideal for portable consumer electronics and devices that demand high resolution and touch functionality.

  • Industrial Equipment: Suited for use in industrial control panels, where clarity, durability, and a customizable touch interface are essential.

  • Smart Home: Used in smart home devices, offering easy-to-read and interactive displays for control panels and monitoring systems.

Customization:

  • Touch Screen Customization: The module supports both resistive and capacitive touch panels, which can be tailored to meet your application needs.

  • Glass and Lamination: Custom glass and touch lamination services available based on your design specifications.
