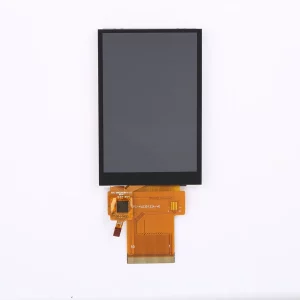

3.5 inch 240*320 resolution LCD display

Item	3.5inch 240×320 18bit RGB portrait LCD display
Model No.	PV03523T0150W
Resolution	240*320

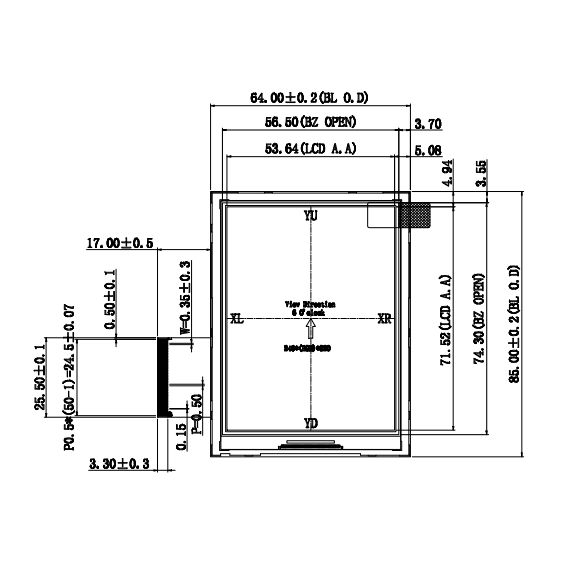

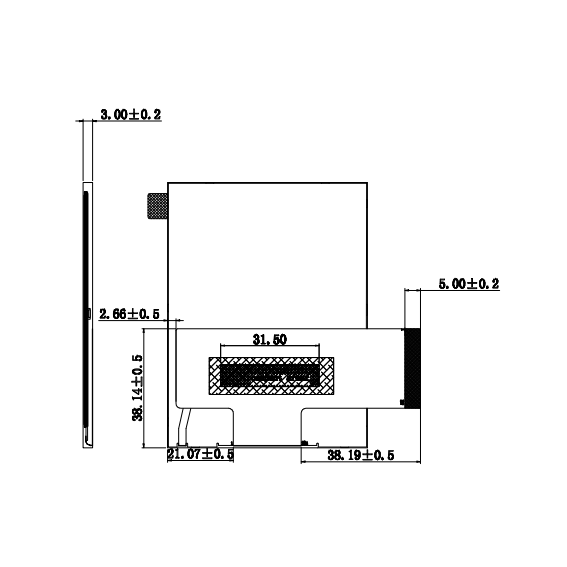

Outline Dimension (mm)	64.0085.003
Active Area (mm)	53.64*71.52
Viewing Angle	6 O’clock
Brightness	400nits
Interface	18bit RGB+SPI
Backlight	6*2LED
Driving IC	ILI9341V
PIN No.	50
Operating Temperature	-20~70C
Storage Temperature	-30~80C
Touch screen	Can custom resistive and capacitive touch screen
Application	Medical, hand-held device, industrial, outdoor
