3.5 inch 240*320 Transflective LCD display
3.5 inch 240*320 Transflective LCD display
3.5 inch 240*320 Transflective LCD display
3.5 inch 240*320 Transflective LCD display

3.5 inch 240*320 Transflective LCD display

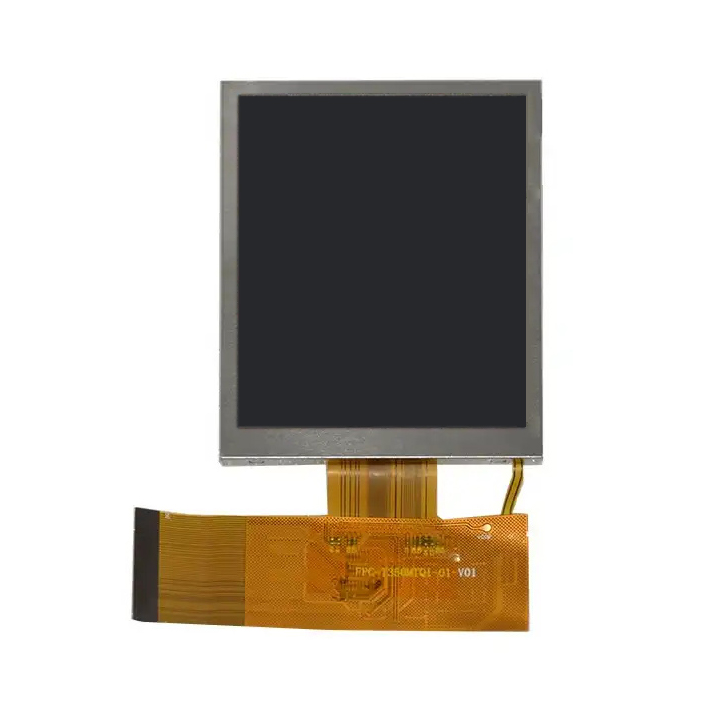

Item 3.5inch 240×320 18bit RGB portrait LCD display
Model No. PV03523T0150W
Resolution 240*320

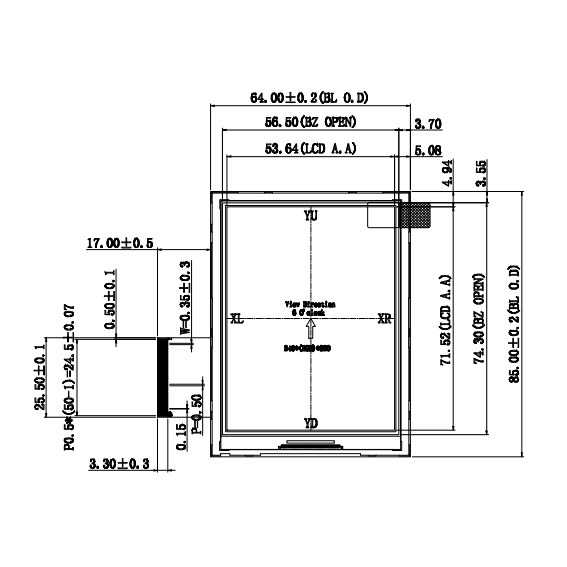

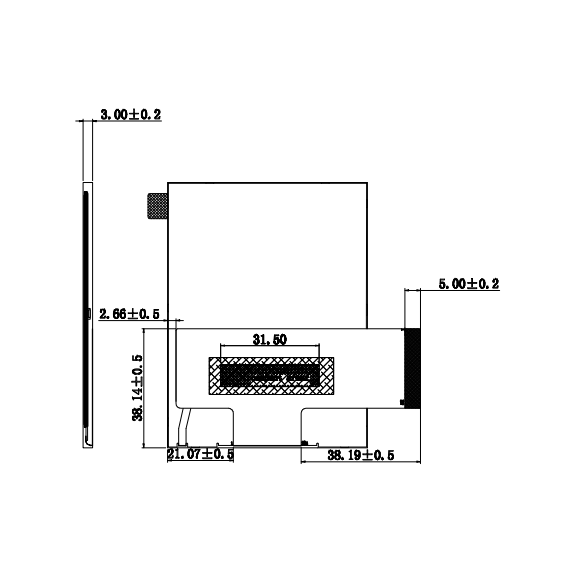

Outline Dimension (mm) 64.00*85.00*3
Active Area (mm) 53.64*71.52
Viewing Angle 6 O’clock
Brightness 400nits
Interface 18bit RGB+SPI
Backlight 6*2LED
Driving IC ILI9341V
PIN No. 50
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, outdoor

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Transflective LCD display
  2. Stable supply
  3. QVGA resolution
  4. TN
  5. Sunlight readable/Outdoor/High brightness
  6. Can custom resistive touch and capacitive touch
