Home > Products > 4.3 inch 480×272 resolution RGB interface display with capacitive touch

4.3 inch 480×272 resolution RGB interface display with capacitive touch

Item	4.3 inch 480×272 RGB lcd display
Model No	PV04300TYD40A-C
Resolution	480×272
Outline Dimension	105.567.24.68
Active Area(mm)	95.04*53.856
Brightness	280nits
Viewing Angle	12 O’Clock
Interface	24 BITS RGB
Driving IC	HX8257A
PIN	40
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch	Capacitive/ resistive touch

For product pricing,customization,or other inquiries:

4.3 inch 480×272 resolution RGB interface display with capacitive touch

1. PV04300TYD40A-C mainly application for Industrial ，medical equipment .
2. It with 480×272 resolution 280nits brightness , RGB interface , HX8257A driver IC , 280nits brightness, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application .

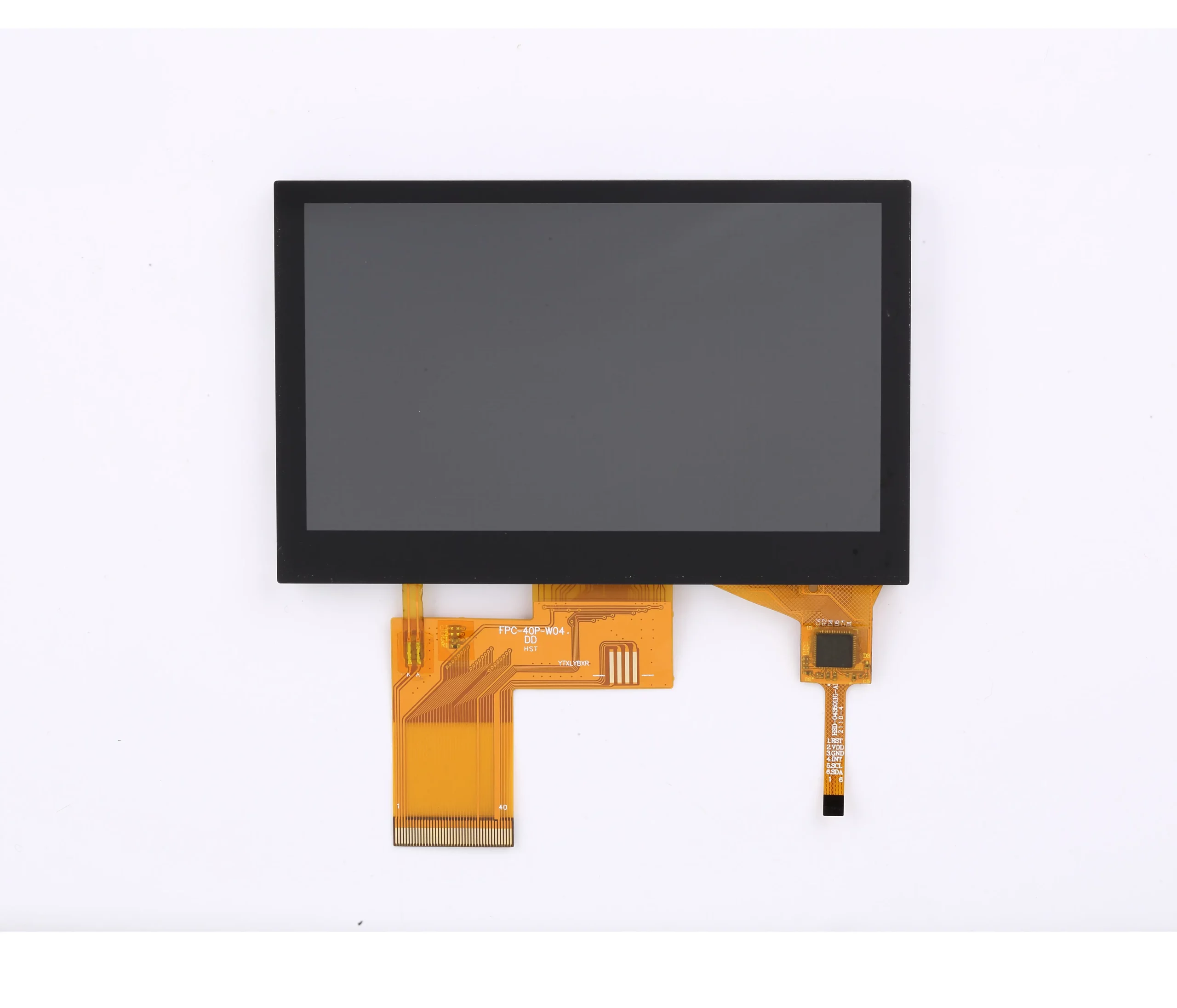

4.3 inch 480×272 lcd display front view
