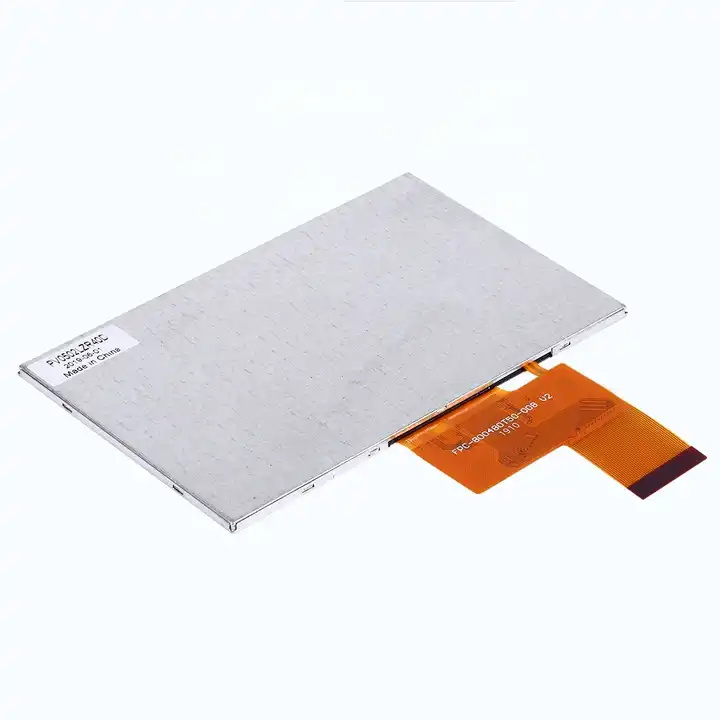

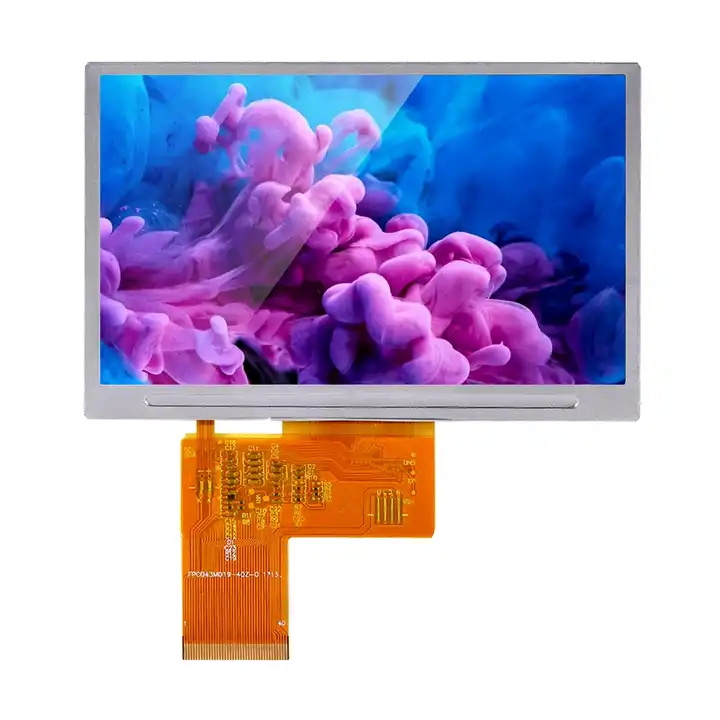

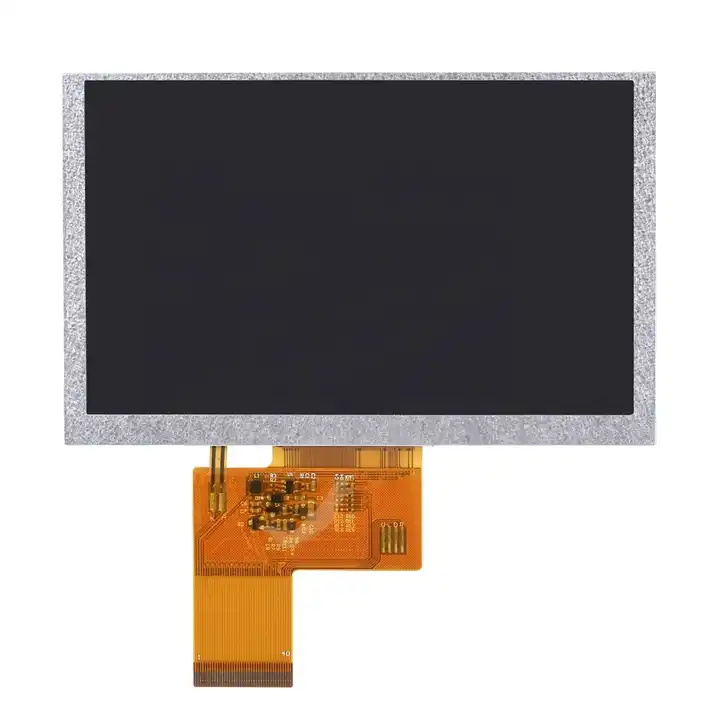

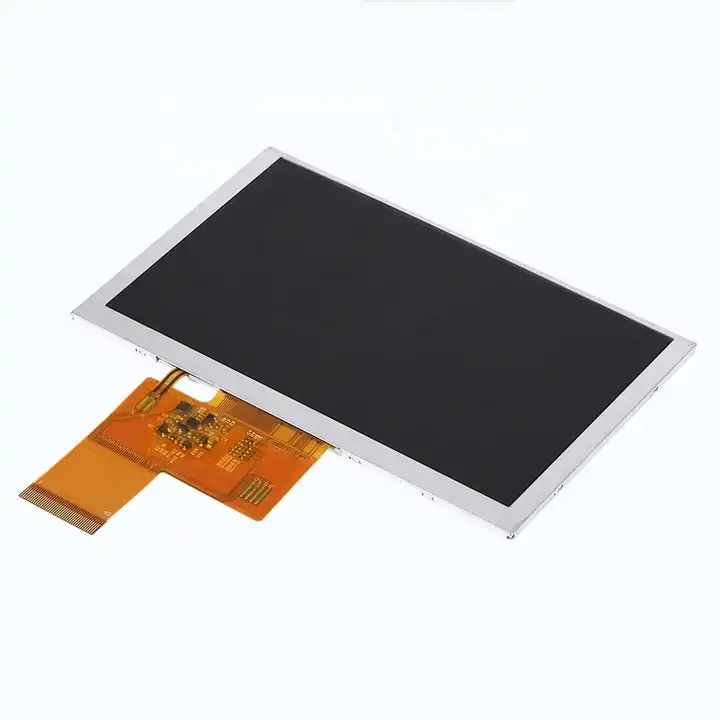

5.0 inch 800*480 TFT module display

Item 5.0 inch TFT 800×480 LCD module display
Model No. PV05015Y0140R
Resolution 800*480

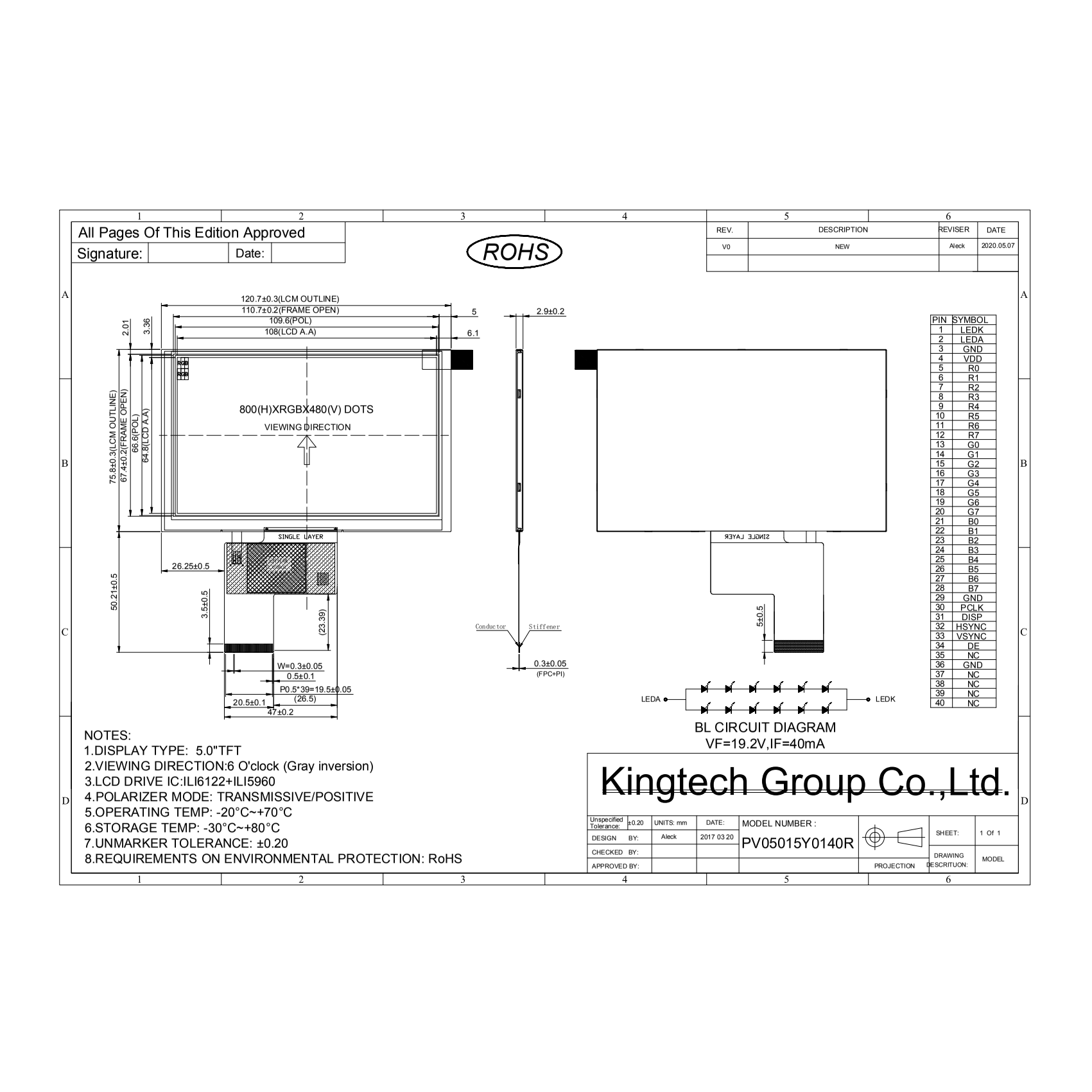

Outline Dimension (mm) 120.7*75.8*2.90
Active Area (mm) 108*64.80
Viewing Angle 12 o’clock
Brightness 400-1000nits
Interface 24-bit Parallel RGB Interface
Backlight 6*2LED
Driving IC ILI6122+ILI5960
PIN No. 40
Operating Temperature -20~70
Storage Temperature -30~80
Touch screen Resistive touch screen and capacitive touch screen
Application Medical, POS, industrial, Smart home Appliance

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 5 inch TFTdisplay
  2. 800*480 /WVGA
  3. Stable supply
  4. 12 O’clock
  5. 24-bit Parallel RGB Interface
  6. 400~1000nits brightness /Sunlight readable/ High brightness
  7. Resistive touch and Capacitive touch
  8. Medical, industrial,Smart Home Appliance,Security device
