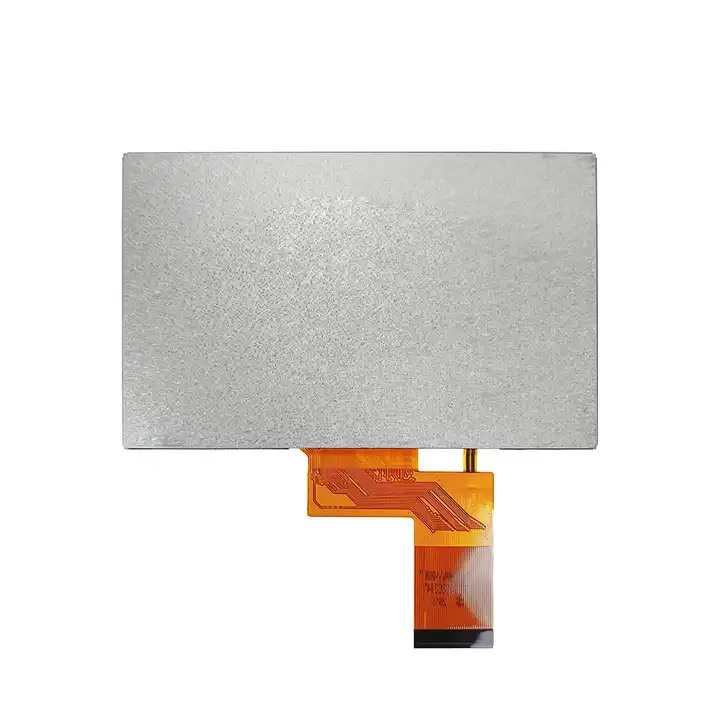

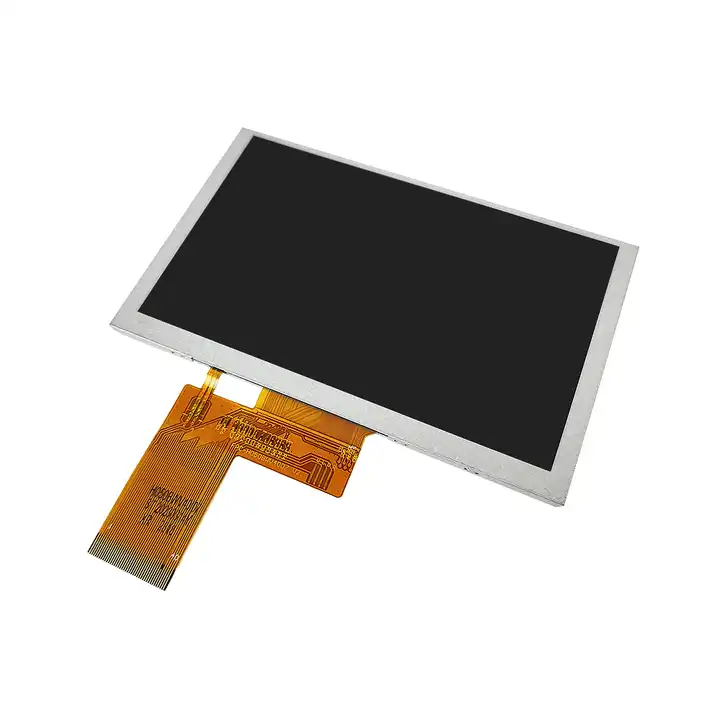

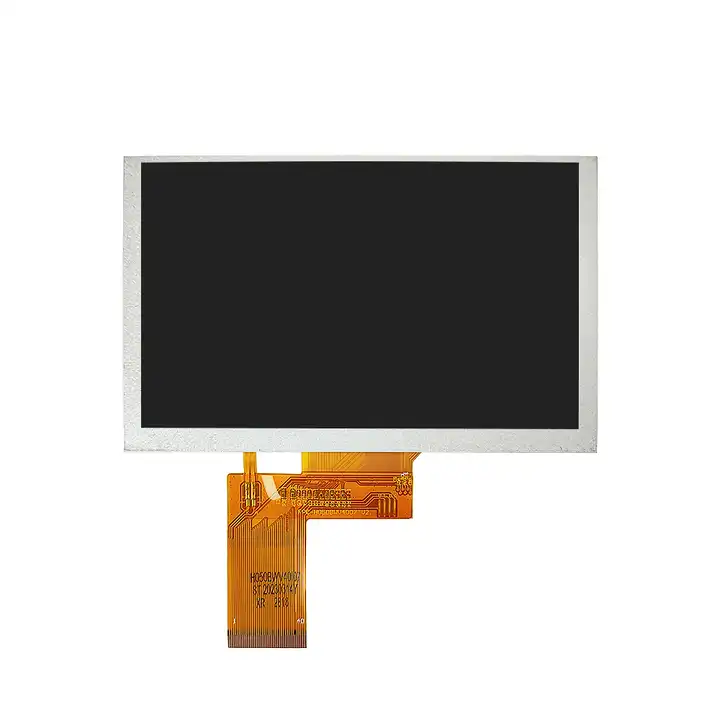

5.0 inch 800*480 TFT module display

Product Specifications:

  • Model No.: PV05035H0540G

  • Display Type: IPS TFT LCD

  • Resolution: 800×480 pixels

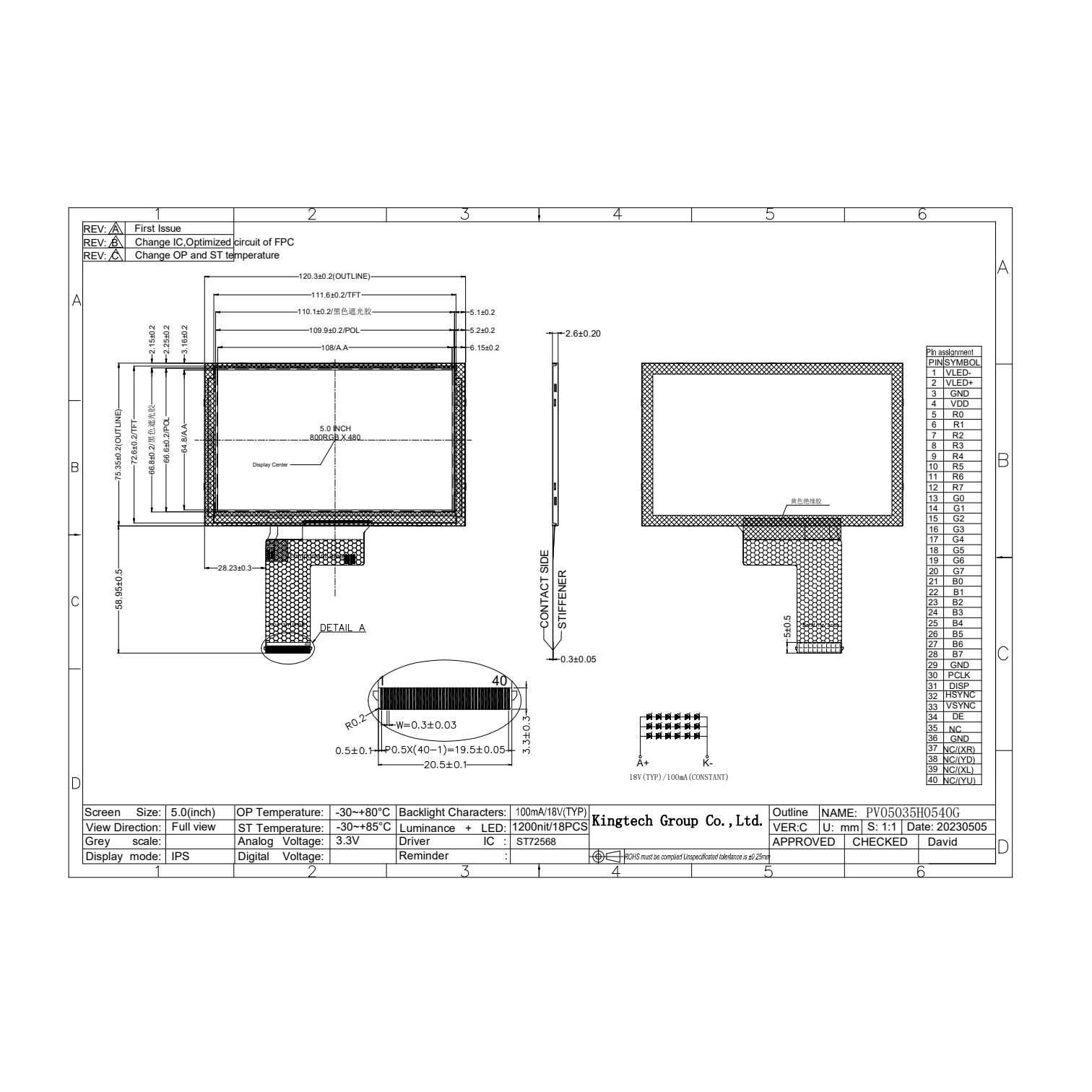

  • Outline Dimension: 120.3 × 75.35 × 2.6 mm

  • Active Area: 108 × 64.8 mm

  • Viewing Angle: All directions

  • Brightness: 1200 nits

  • Interface: RGB

  • Backlight: 6×3 LED

  • Driving IC: ST72568

  • PIN Number: 40 pins

  • Operating Temperature: -30°C to 80°C

  • Storage Temperature: -30°C to 85°C

  • Touch Screen: Optional resistive or capacitive touch customization

Key Features:

  • Exceptional Brightness: 1200 nits ensures excellent visibility even in outdoor or high-light environments.

  • Wide Viewing Angles: IPS technology provides clear, vivid images from all directions.

  • Flexible Interface: Standard RGB interface for easy system integration.

  • Customization Ready: Optional touch panel solutions tailored to your project needs.

  • High Durability: Built to perform reliably in tough industrial, medical, and outdoor settings.

For product pricing,customization,or other inquiries:

Share to:

Product Overview:
The 5.0 Inch IPS TFT LCD Display (Model PV05035H0540G) delivers a resolution of 800×480, high brightness, and wide viewing angles, making it ideal for medical devices, handheld equipment, industrial applications, and E-bike displays. Its excellent durability and vivid image performance ensure reliability in demanding environments.

Application Scenarios:

  • Medical Devices: Diagnostic equipment, portable monitoring tools.

  • Handheld Devices: Industrial handheld terminals, mobile meters.

  • Industrial Equipment: Control panels, ruggedized devices.

  • E-Bike Displays: Clear, bright interfaces for smart mobility solutions.

Advantages:

  • Reliable Performance: Maintains stability under extreme temperature conditions.

  • Easy System Integration: Standard RGB interface simplifies development processes.

  • Customization Support: Touch panel customization to accelerate your time-to-market.

  • High-Quality Visuals: Superior brightness and color clarity enhance user experience.

Procurement Information:

  • MOQ: Negotiable depending on project needs

  • Lead Time: Fast production and shipment

  • Support: Full technical support and customization services for B2B projects

Power Your Innovation with Kingtech’s 5.0 Inch High Brightness TFT LCD Display!
