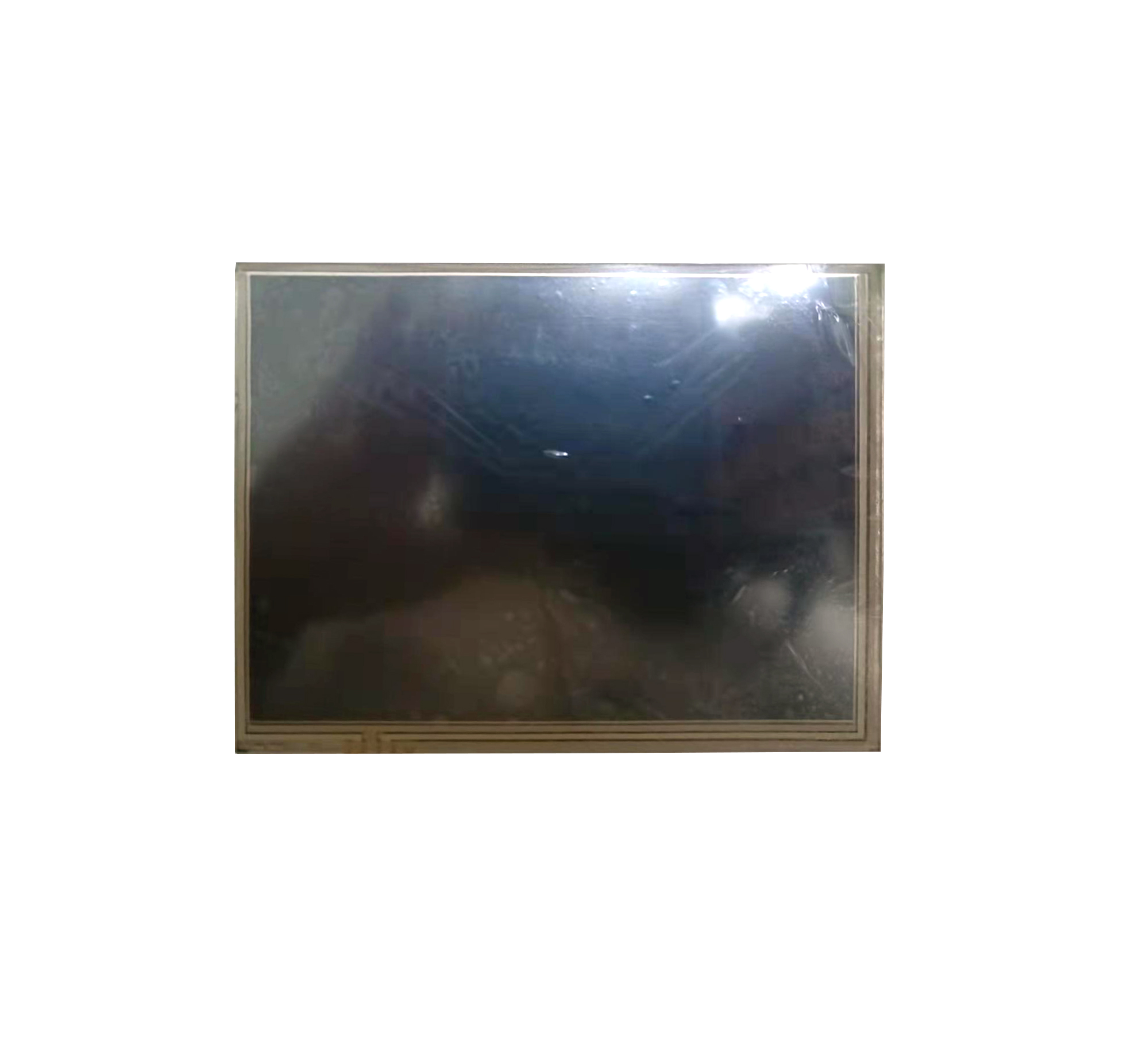

5.7-inch 640×480 dots LCD module

Item 5.7inch 640*480 LCD with resistive touch LCD module

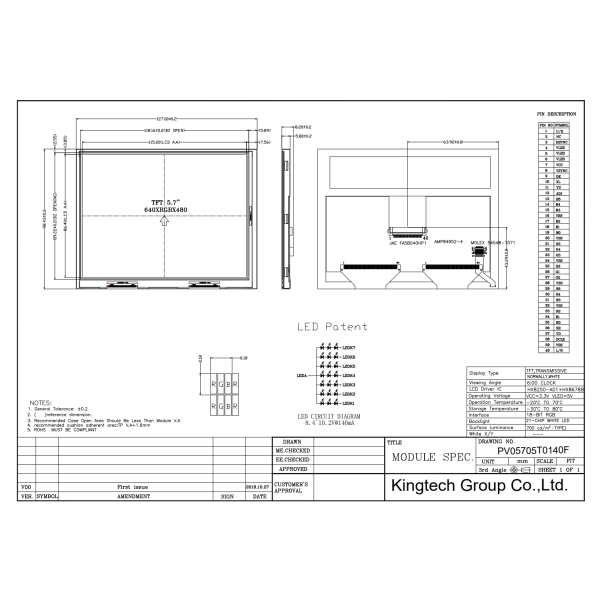

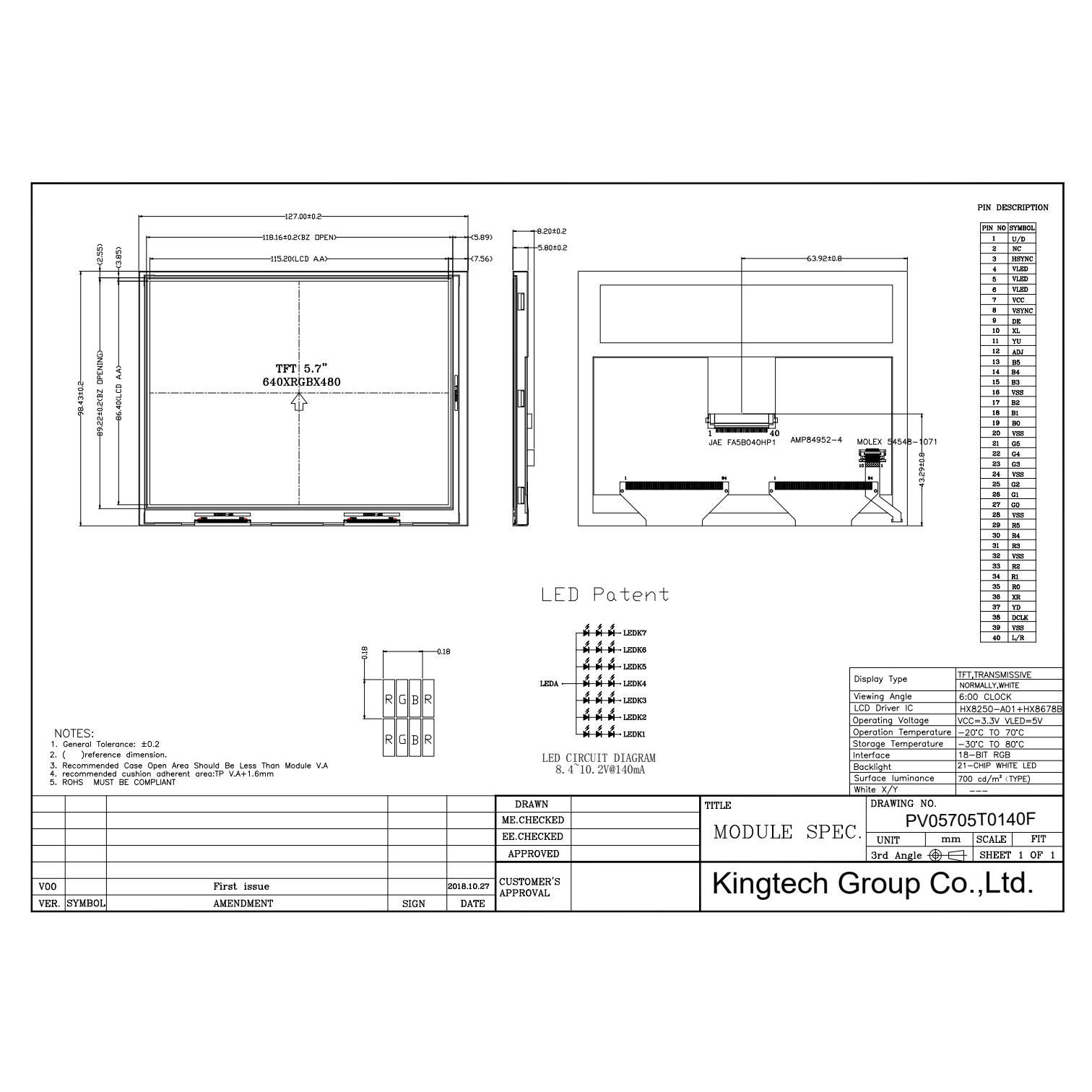

Model No. PV05705T0140F
Resolution 640*480
Outline Dimension (mm) 127.0*98.43*5.80
Active Area (mm) 115.20*86.40
Viewing Angle 6 O’clock
Brightness 700nits
Interface 18bit RGB
Backlight 3*7LED
Driving IC HX8250-A01*2+HX8678A
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Resisitive touch and capacitive touch optional
Application Industrial, Medical, Smart Home, Home appliance, Meter, Outdoor

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 5.7inch 640×480 LCD with resistive touch
  2. 6 o’clock
  3. High brightness/Sunlight readable/Outdoor
  4. Support RGB interface.
  5. Resistive and capacitive touch can be customized
