5.7 inch 640×480 RGB interface 550nit TFT LCD module with resistive touch panel
| Item | 5.7” 640×480 TFT LCD Display |
| Model No | PV05703YP40D-R |
| Resolution | 640×480 |
| Outline Dimension | 127.00*98.43*9.20 mm |
| Active Area(mm) | 115.20(W)x86.40(H) |
| Interface | 18-BIT RGB |
| Viewing Angle | 6 O’clock |
| Driving IC | HX8250-A+HX8678-B |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 550nits |
| Touch screen | Resistive touch |
| Display Mode | TN / Transmissive / Normally white |
For product pricing,customization,or other inquiries:
Share to:
5.7 inch 640×480 VGA resolution RGB 5500nits lcd display with resistive touch panel
1. PV05703YP40D-R mainly application for Industrial ，medical equipment .
2.It with 640×480 resolution/ VGA , 5500nits sunlight readable , 18bit RGB interface, TN/ 6 o’clock, HX8250-A01*2+HX8678A driver IC, with resistive touch screen.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

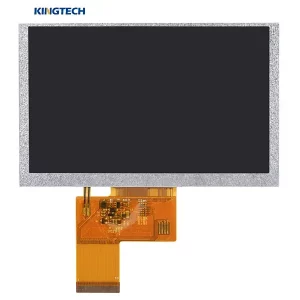

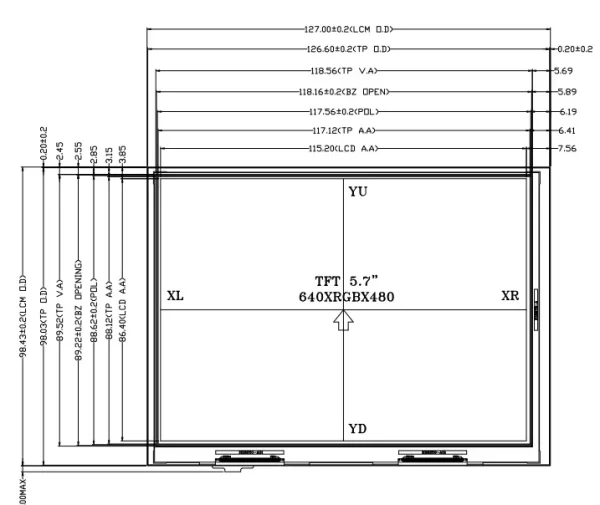

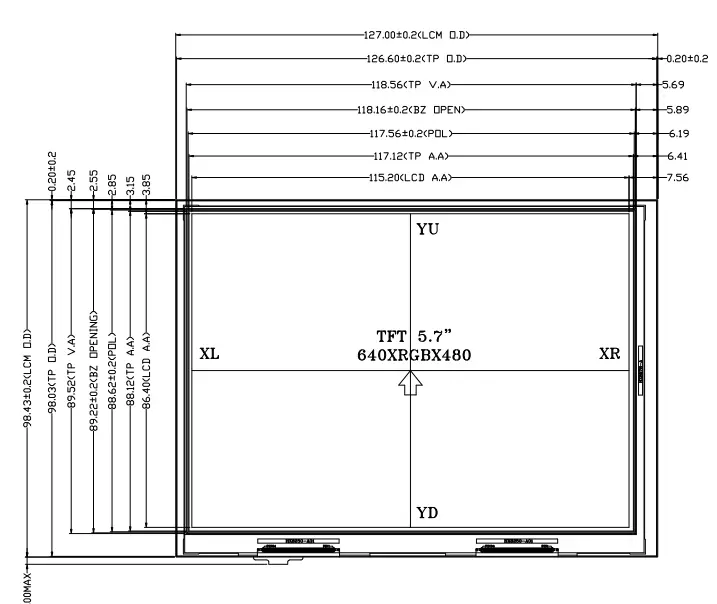

5.7” 640×480 resistive touch screen Front view

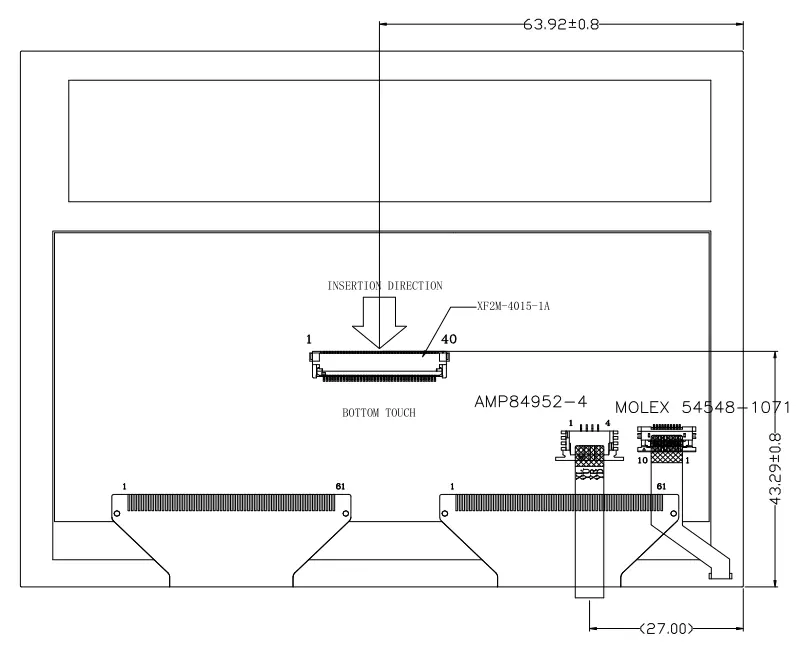

5.7” RGB with resistive touch Display back view
