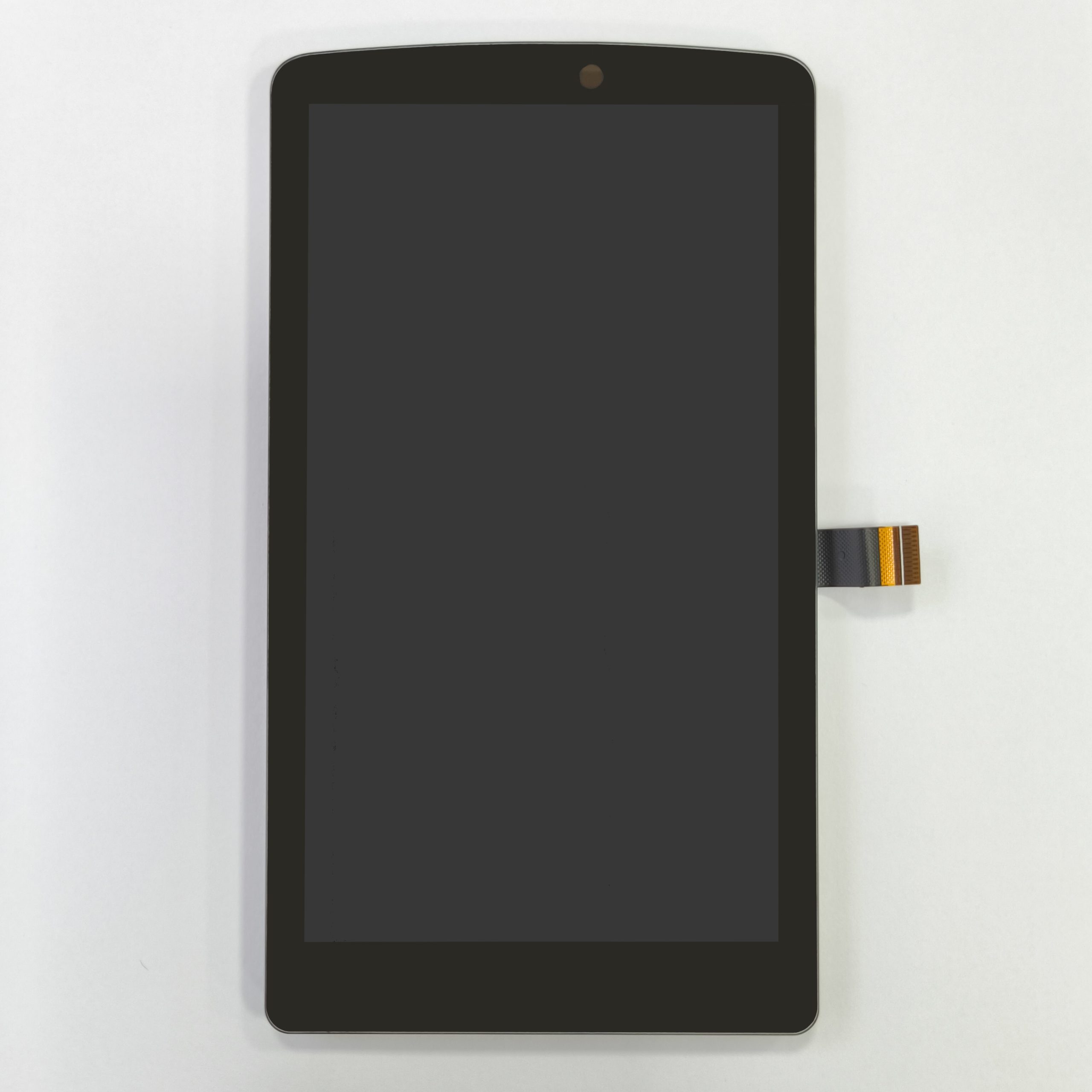

5-inch TFT LCD display 720×1280
| Item | 5 inch TFT 720×1280 module display |
| Model No. | PV05028T0225Z-CO |
| Resolution | 720*1280/HD |
| Outline Dimension (mm) | 72.10*130.10*3.15 |
| Active Area (mm) | 62.10*111.00 |
| Viewing Angle | IPS |
| Brightness | 450nits |
| Interface | MIPI |
| Backlight | 6*2LED |
| Driving IC | GC9702C+CHSC5448 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | OCA capacitive touch screen |
| Application | Phone,Medical, hand-held device, industrial,Smart home Appliance |
For product pricing,customization,or other inquiries:
Share to:
- TFTdisplay
- PV05028T0225Z-CO
- 720*1280/HD
- Stable supply
- All / Wide/Full viewing angle
- MIPII interface
- 500nits brightness
- OCA bonding Capacitive touch
- Medical, industrial, Smart Home Appliance, Security device
