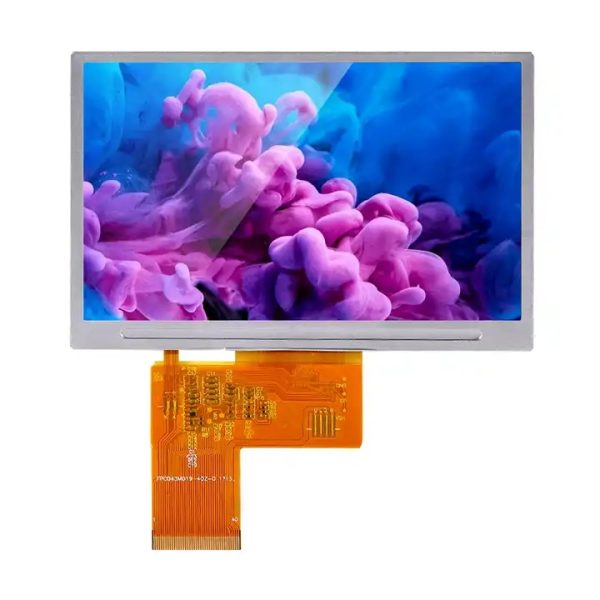

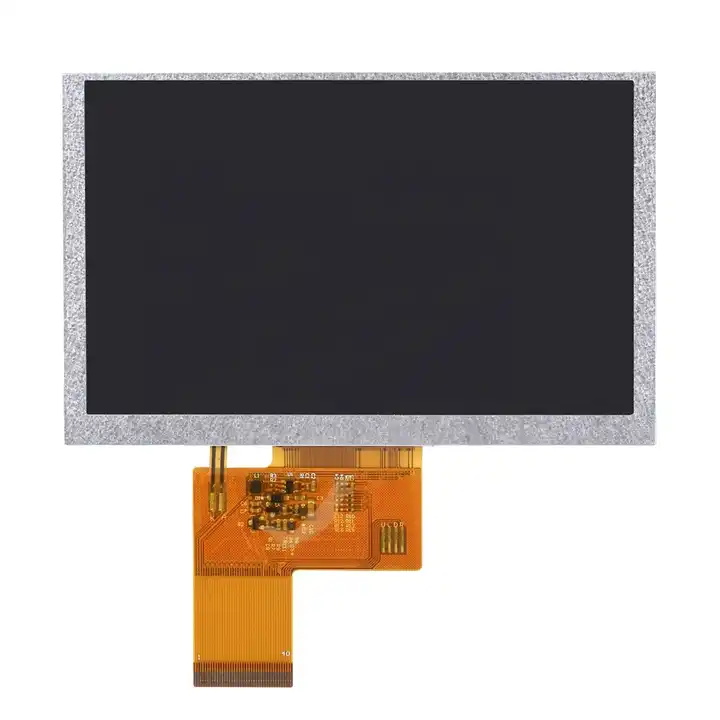

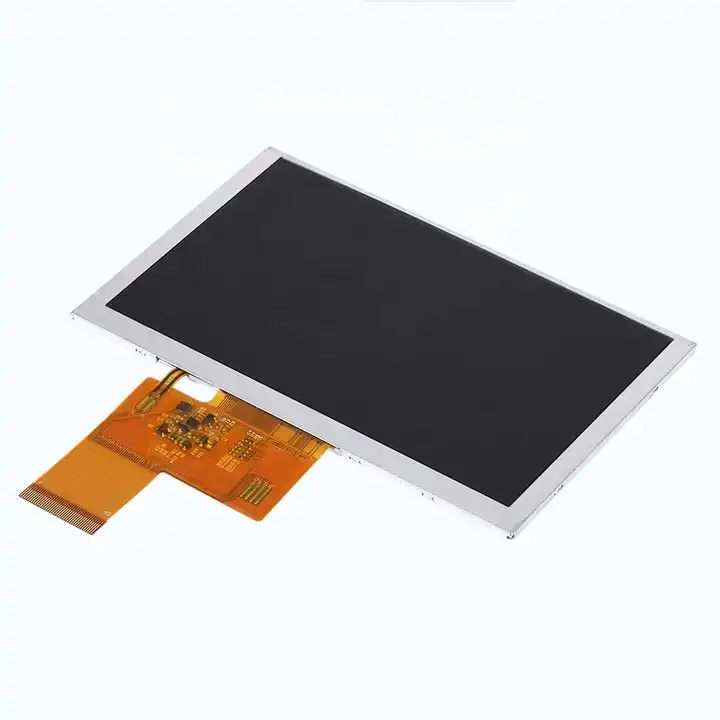

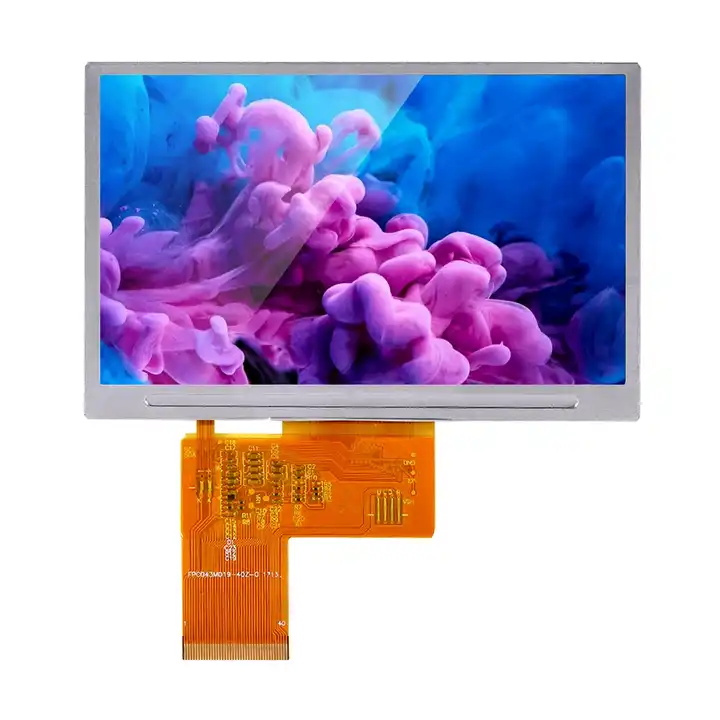

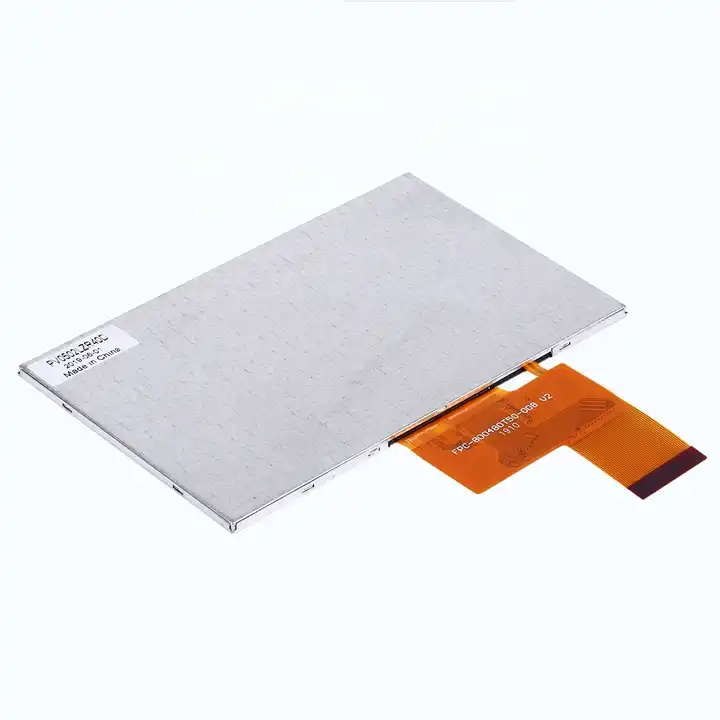

5 inch tft lcd display module 800×480 MIPI interface
| Item | 5.0 inch TFT 800×480 MIPI 2/4 lane module display |
| Model No. | PV05025Y0130W-CT |
| Resolution | 800*480 |

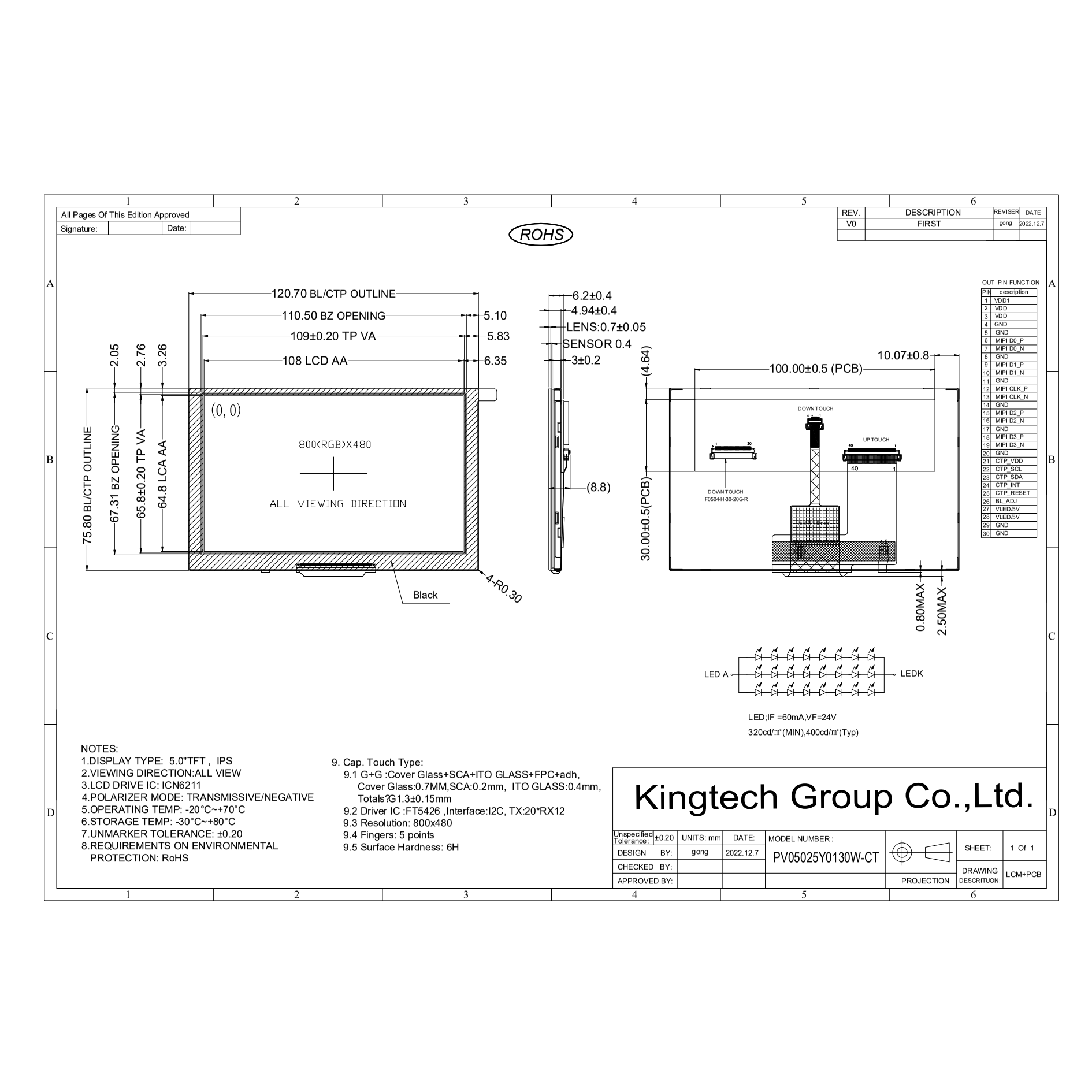

| Outline Dimension (mm) | 120.7*75.80*8.8 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI-2/4 lane Interface |
| Backlight | 8*3LED |
| Driving IC | ICN6211/FT5426 |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch screen |
| Board | Support HDMI board |
| Application | medical, automotive, industrial application, IOT, home application. |
For product pricing,customization,or other inquiries:
Share to:
- 5.0 inch TFTdisplay
- 800*480 /WVGA
- Stable supply
- Full/wide/all/IPS viewing angle
- MIPI Interface
- 400nits brightness
- With/Without Capacitive touch
- Outdoor use:industrial application, and IOT, medical, automotive, home application.
