30 pin shenzehn hd color 7 inch lcd display module
| Item | 7 inch 800*480 TFT module display |
| Model No | PV07000TYD30C |
| Resolution | 800×480 |

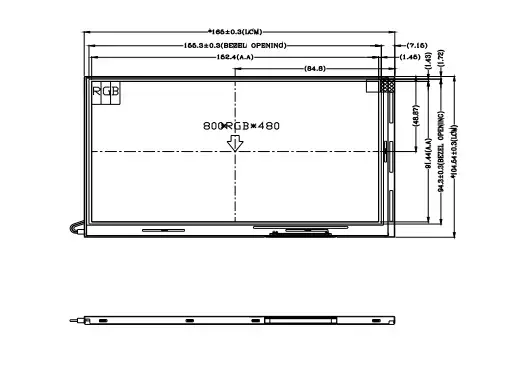

| Outline Dimension | 165*104.54*5.2 MM |
| Active Area(mm) | 152.4(W) × 91.44(H) mm |
| Interface | LVDS |
| Viewing Angle | 12 O’clock |
| Driving IC | HX8678 |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 300nits / up to 1000nits |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
7 inch 800×480 resolution LVDS 600nits brightbness LCD display
1.PV07000TYD30C mainly application for outdoor device ,Industrial ，medical equipment .
2.It with 800×480 resolution , 600nit brightness , LVDS interface ,HX8262+HX8678 driver IC .
3.It also can custom touch panel as customer ‘s requirement .It is A grade product , the good quality well use for 4.Industrial ，medical application .
