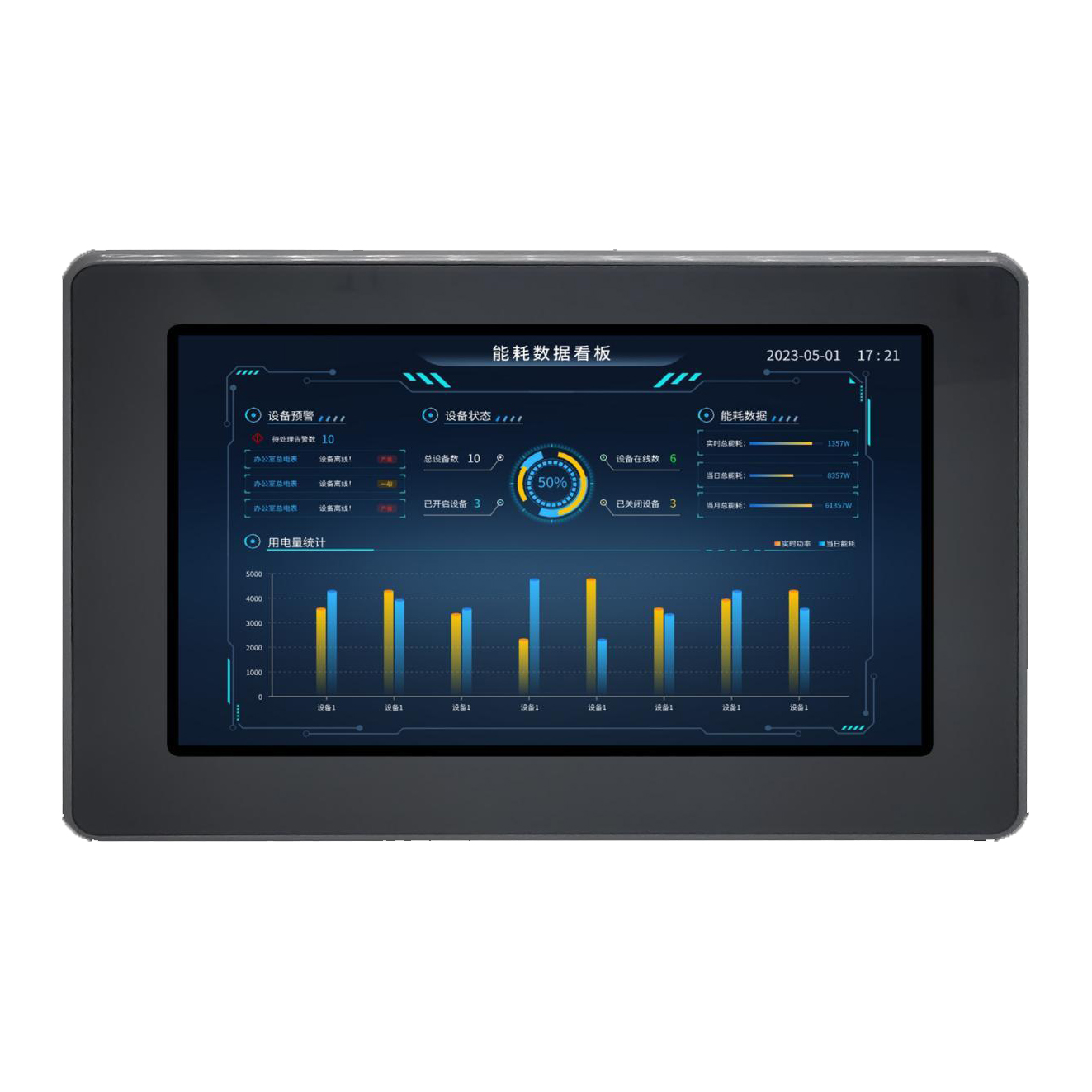

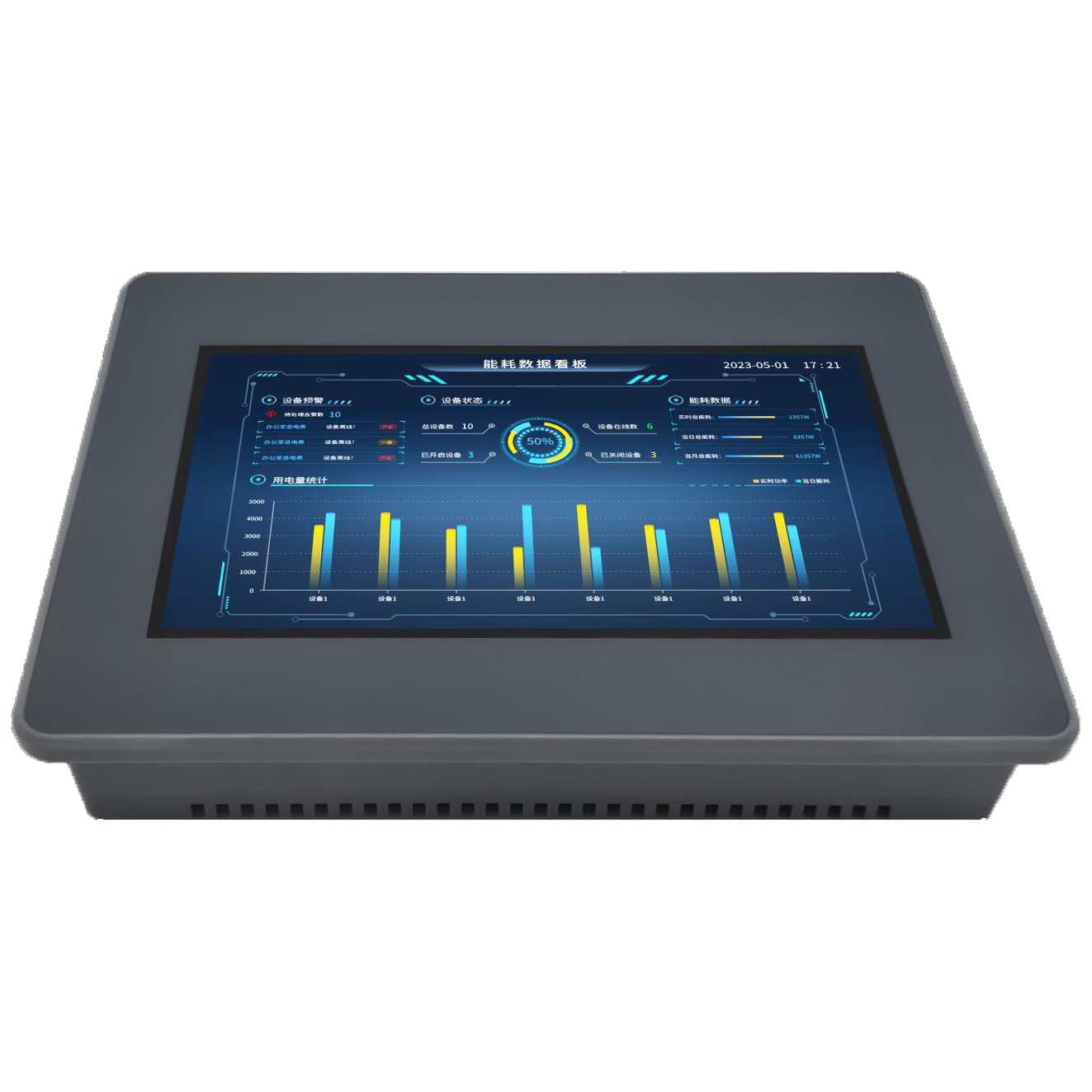

7 inch industrial screen
|
CPU |
The chip is based on ARM Cortex-A7 dual-core 1.2GHz;Integrated hardware H.264/H.265 video decoder; Built-in 128MByte DDR; Built-in 2D graphics engine;Built-in Ethernet mac and PHY; Built-in audio codec, etc.Support Secure boot, AES/DES/3DES password engine,secure boot and personalized authentication mechanisms to protect the system |
| RAM | 128MByte DDR3 |
| Resolution | 1024*600 |
| Touch | capacitive touch panel |
| TP Surface hardness | 6.5 (Mohs hardness) |
| TP transmittance | ＞85% |
| Size | 7 “LCD touch screen (customizable) |
| Color | 260,000 colors |
| Backlight brightness | 350nit brightness can be PWM adjuste |
| Backlight lifetime | 30000Hrs LED backlight |
| Viewing Angle | Wide Viewing Angle |
| panel type | IPS |
| Storage expansion | TF card slot |
| Ethernet | 10M/100M adaptive RJ45 network port |
| WIFI | 2.4G frequency 802.11b/g/n |
For product pricing,customization,or other inquiries:
Share to:
1.ARM dual-core processor with Cortex-A7 architecture
2.Linux operating system, stable and reliable, with a highly customizable development platform
3.can realize capacitive touch and display functions to achieve human-computer interaction
4.Supports voice and video playback
5.supports a variety of networking modes such as WIFI, 4G, and Ethernet, enabling remote data transmission and cloud interconnection

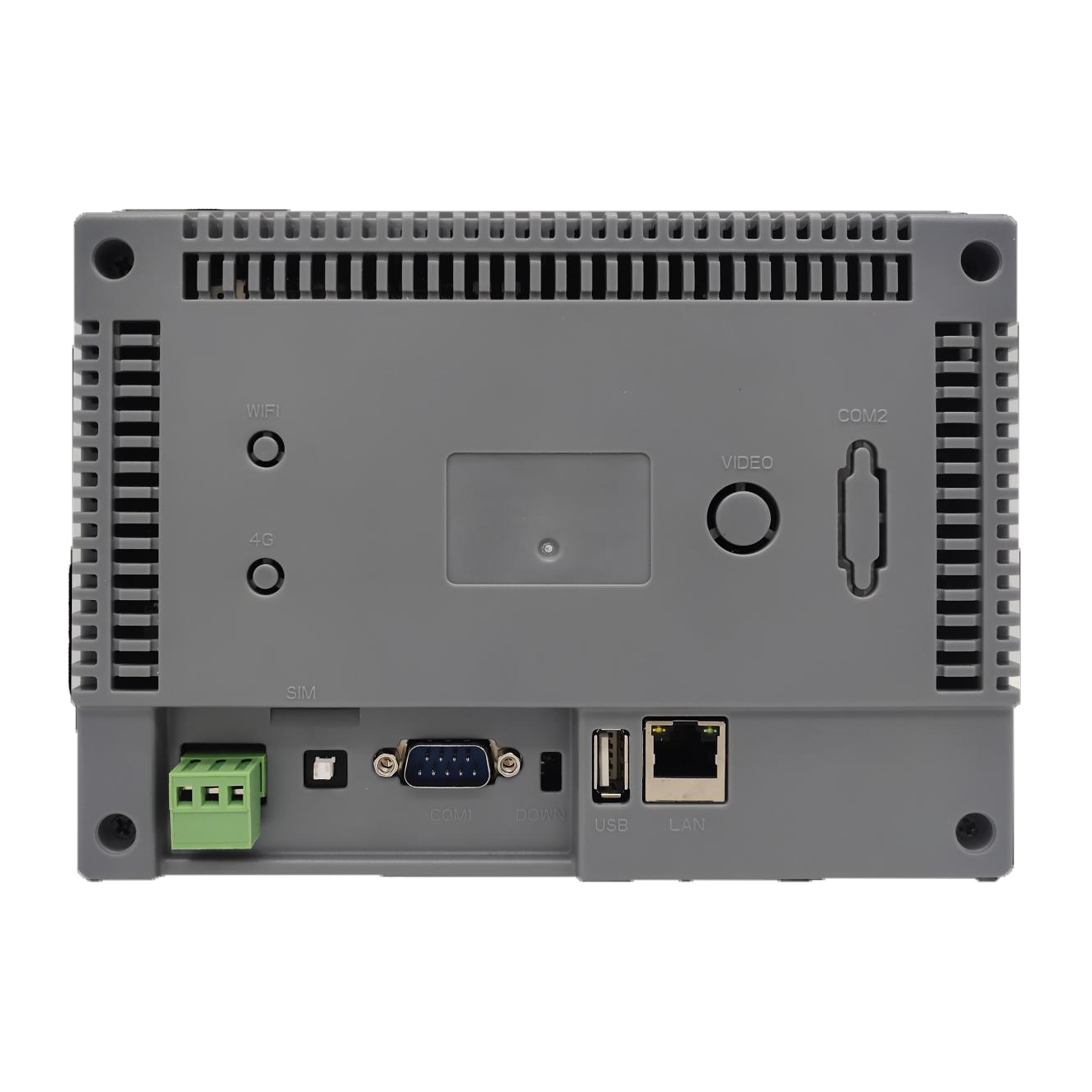

6.Multiple interfaces, supporting RS485, RS232, I2C and other different modes of communication, communication with external devices
7.Full NetCom (support 2G/3G/4G/5G, support various brands and LTE CAT level communication modules)
8.industrial embedded design, easy installation, support custom installation design, suitable for a variety of industries
