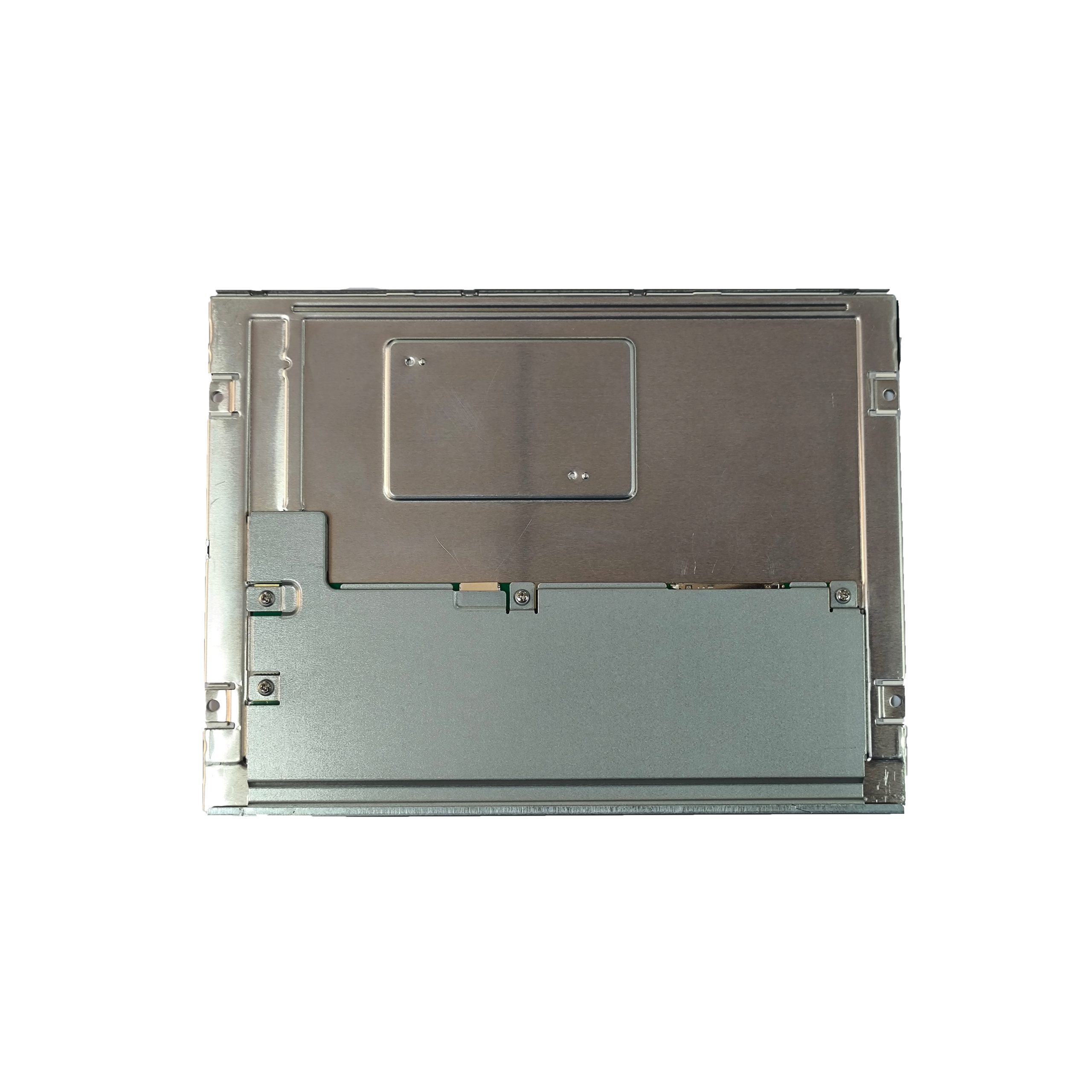

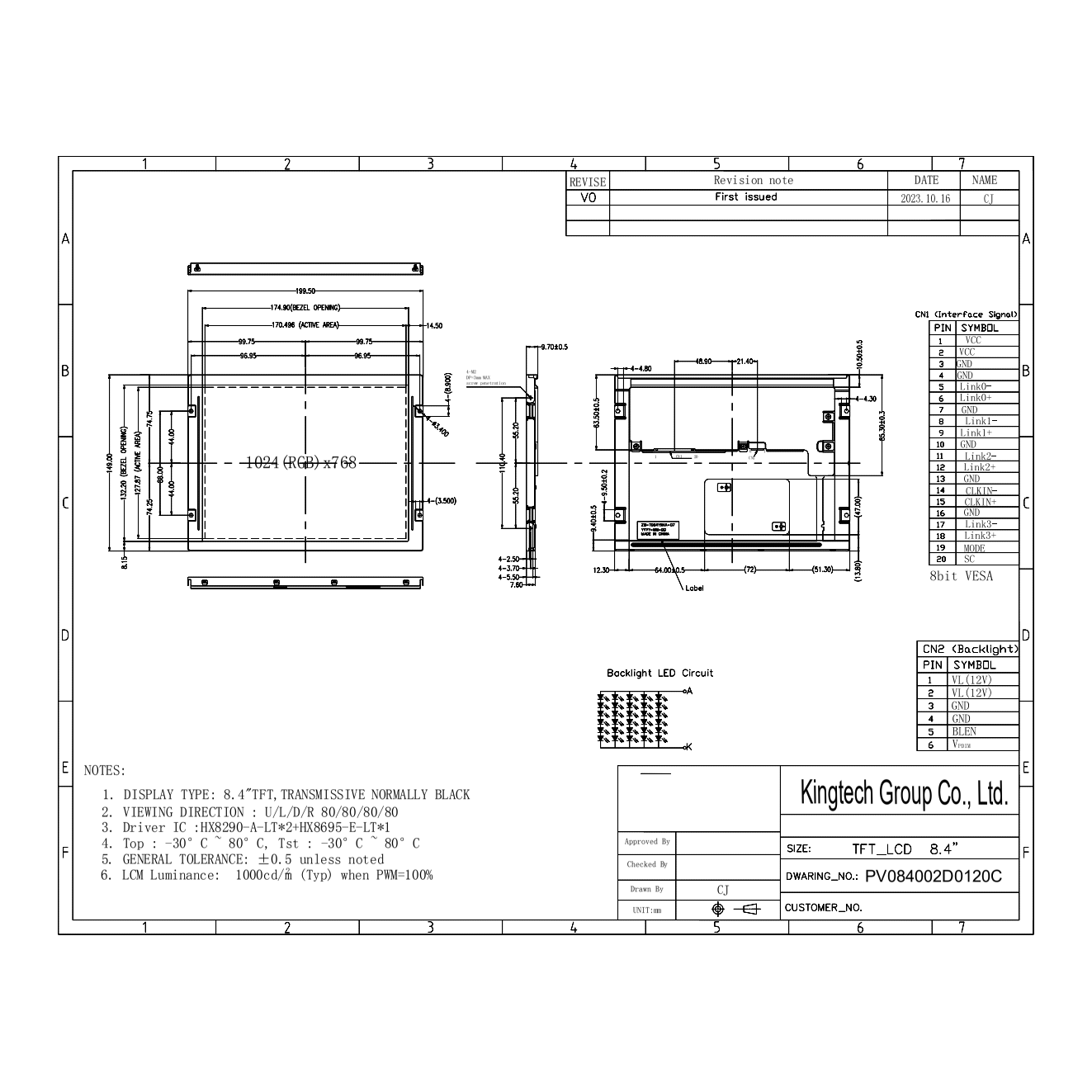

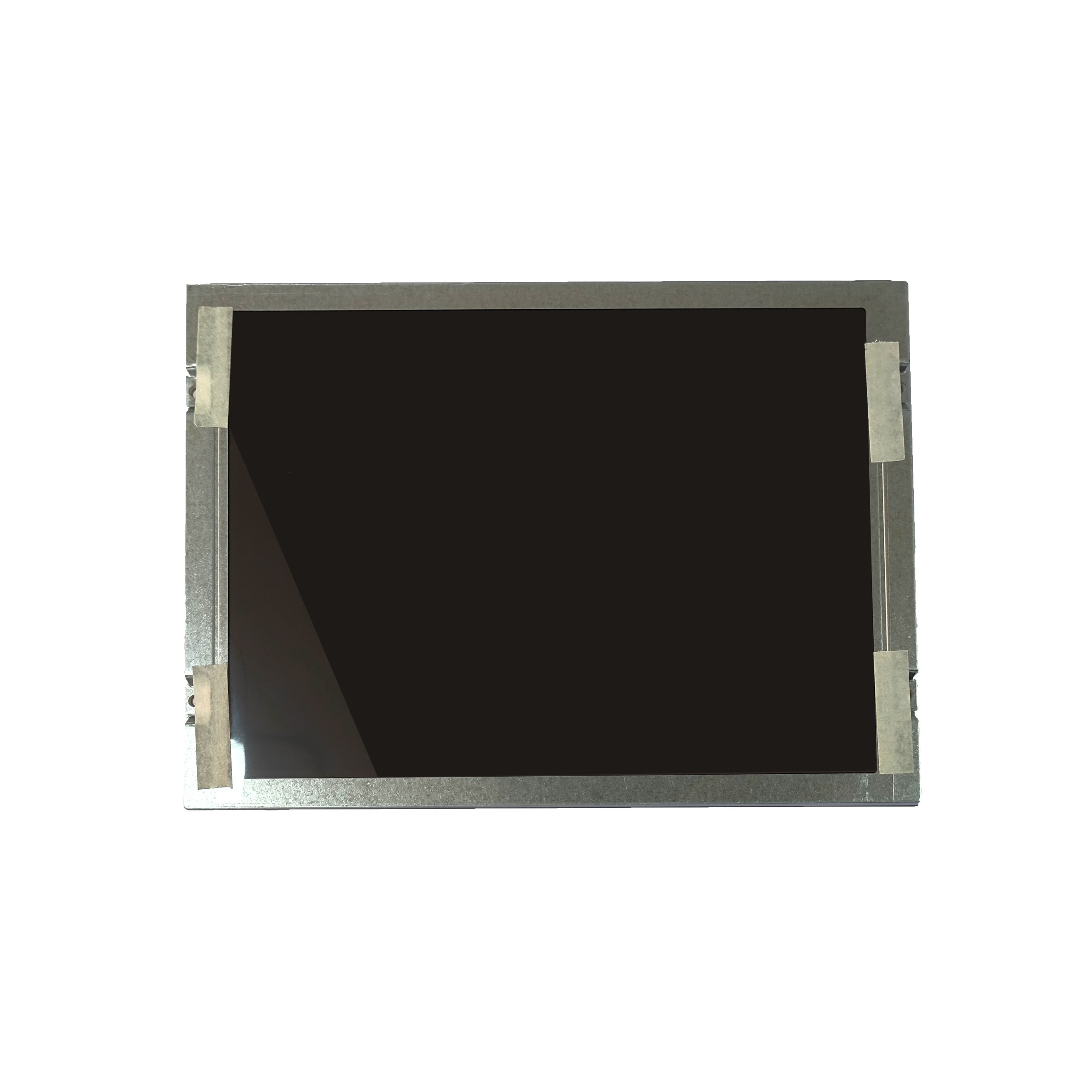

8.4 inch 1024*768 TFT module display
| Item | 8.4inch IPS 1024*768 TFT display |
| Model No. | PV084002D0120C |
| Resolution | 1024*768 |
| Outline Dimension (mm) | 199.50*149.00*9.7 |
| Active Area (mm) | 170.49*127.87 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | 8bits LVDS |
| Backlight | 6*5LED |
| Driving IC | HX8290-A-LT*2+HX8695-E-LT*1 |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial or outdoor, advertisement and thermostat, automotive |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- XGA resolution
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- -30~80℃ Wide working temperature
- Can custom resistive touch and capacitive touch
