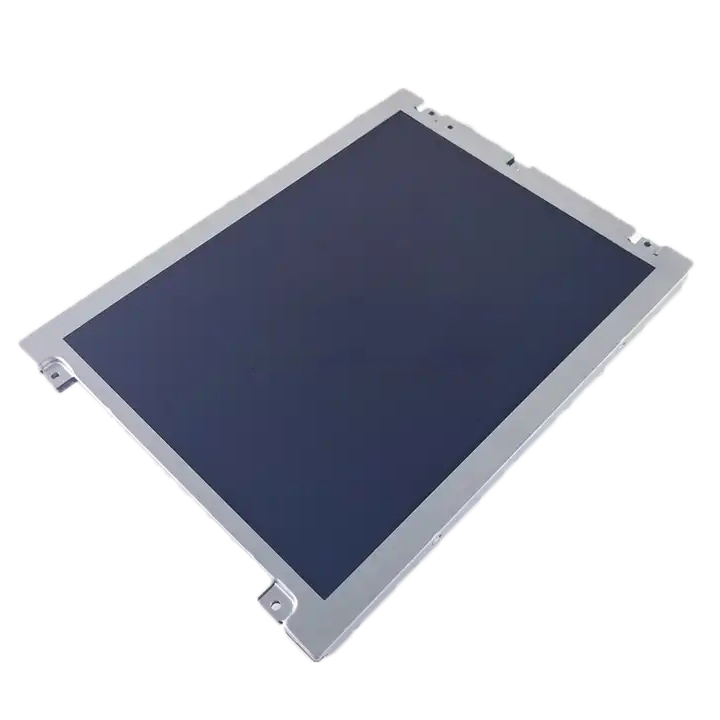

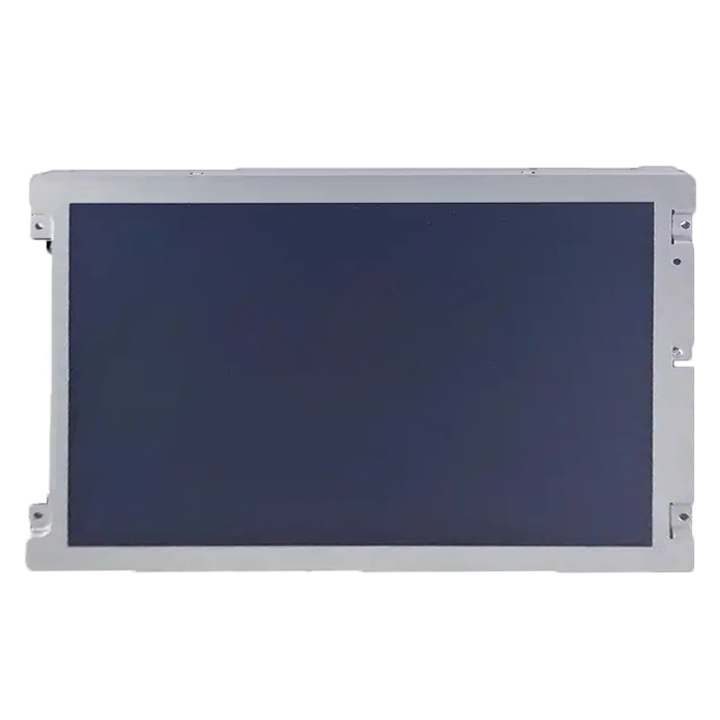

8.4 inch SVGA TFT LCD module
| Item | 8.4 inch 800*600 LCD module |
| Model No. | PV084000AR20A |
| Resolution | 800*600 |
| Outline Dimension (mm) | 203*142.5*5.7 |
| Active Area (mm) | 170.4*127.8 |
| Viewing Angle | 12 O’clock |
| Brightness | 350nits |
| Interface | LVDS 6/8 bit |
| Backlight | 8*3LED |
| Pin nums | 20 |
| Driving IC | NT51008B*2+NT52002*1 |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Medical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- Contrast Ratio 500
- Life-time 50000h
- Landscape, Horizontal
- Resistive touch and capacitive touch can be customized.
