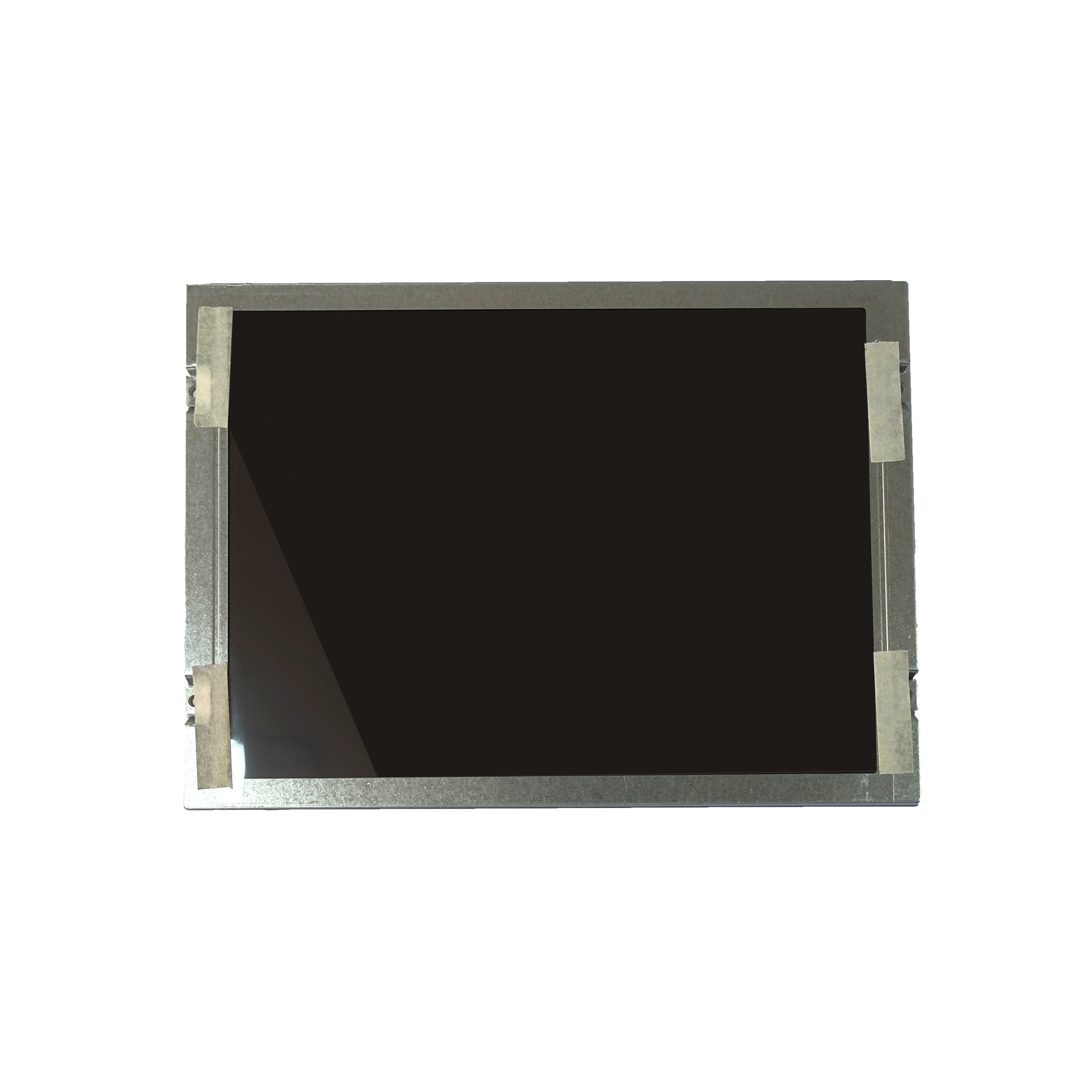

8.4inch LCD module 1024×768 wide temperature High brightness
| Item | 8.4 inch IPS 1024*768 LCD module |
| Model No. | PV084001D0120B |
| Resolution | 1024*768 |
| Outline Dimension (mm) | 199.50*149.00*9.7 |
| Active Area (mm) | 170.496*127.872 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 7*4LED |
| Driving IC | HX8290-A-LT*2+HX8695-E-LT |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Optional |
| Application | Outdoor devices, marine/automative instruments, transportation, industrial, medical |
For product pricing,customization,or other inquiries:
Share to:
- Wide temperature,-30-80
- High brightness, 1000nits, Sunlight readable, Outdoor
- Touch is optional
- Landscape, horizontal
- XGA resolution
- Life-time 50000h
