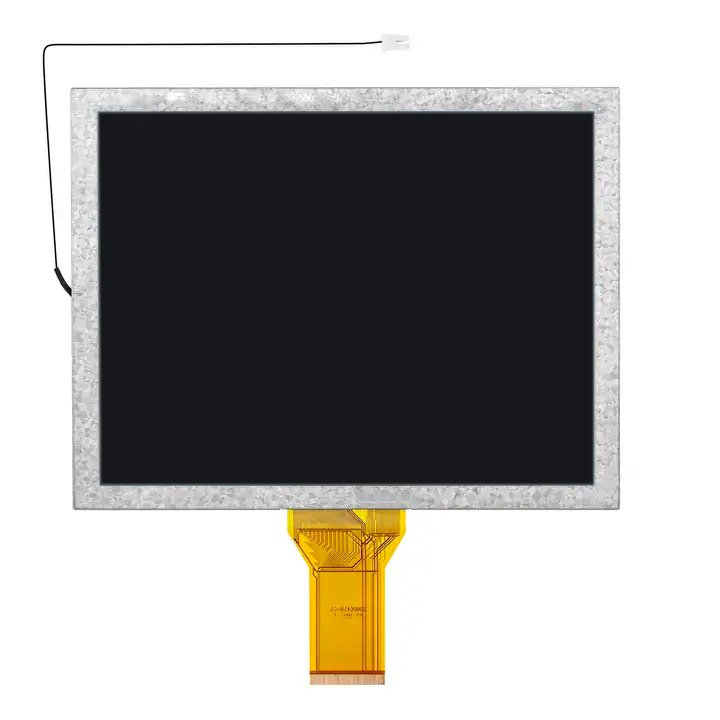

8 inch IPS TFT-LCD module 800x600dots
| Item | 8.0 inch IPS 800*600 LCD module |
| Model No. | PV08011Y0150L |
| Resolution | 800*600 |
| Outline Dimension (mm) | 183*141*6.3 |
| Active Area (mm) | 162*121.5 |
| Viewing Angle | 12 O’clock |
| Brightness | 1000nits |
| Interface | 24bit RGB |
| Backlight | 3*10LED |
| Pin nums | 50 |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- High brightness, Sunlight readable, Outdoor
- SVGA resolution
- Landscape, Horizontal shaped
- Resistive touch and capacitive touch optional
- Life-time 20000h
