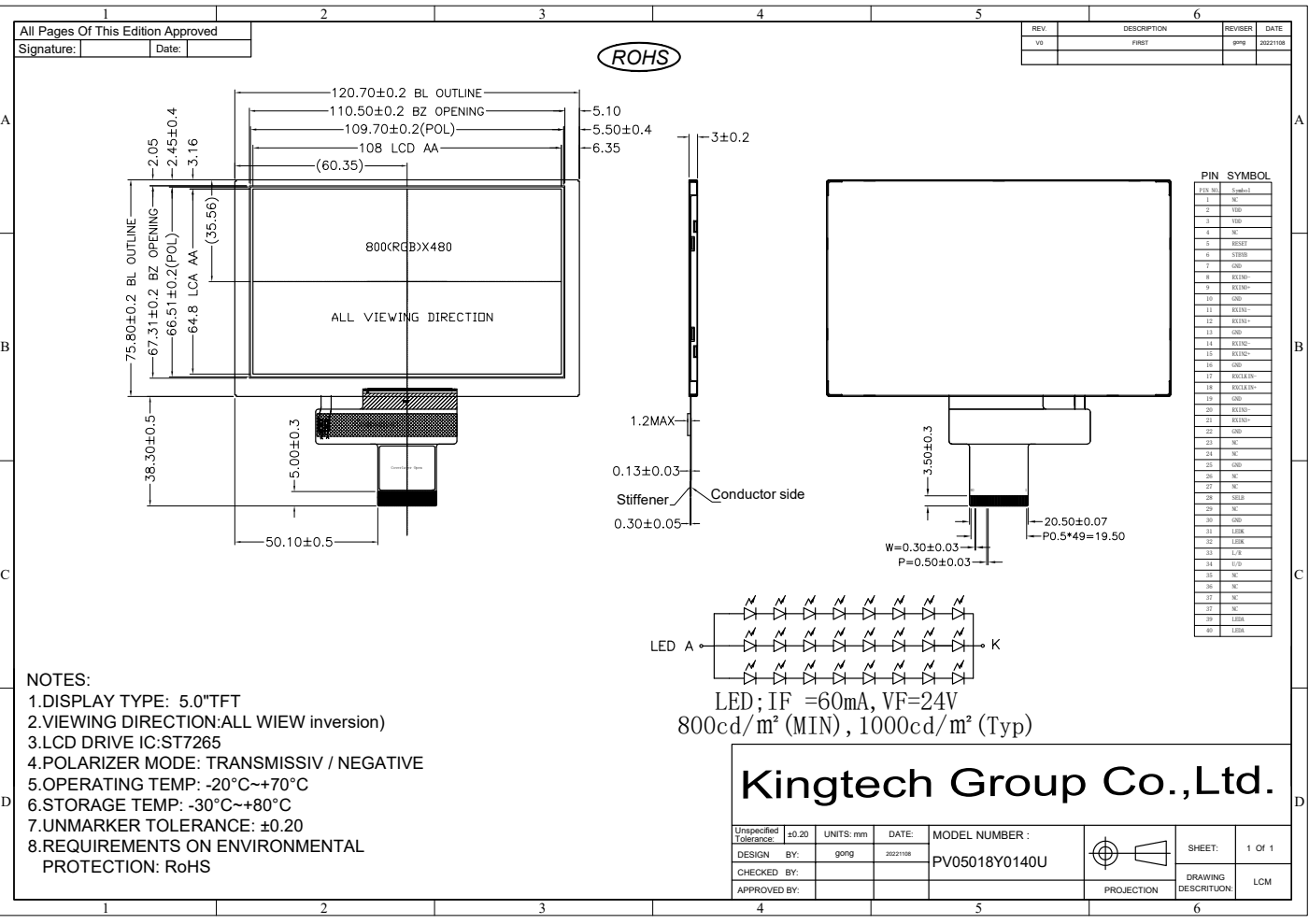

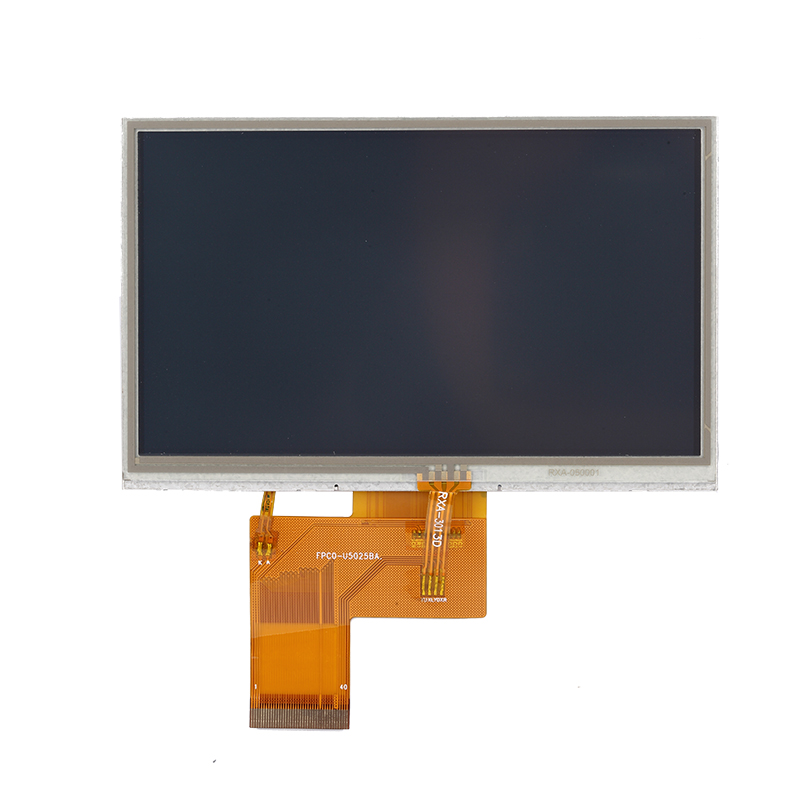

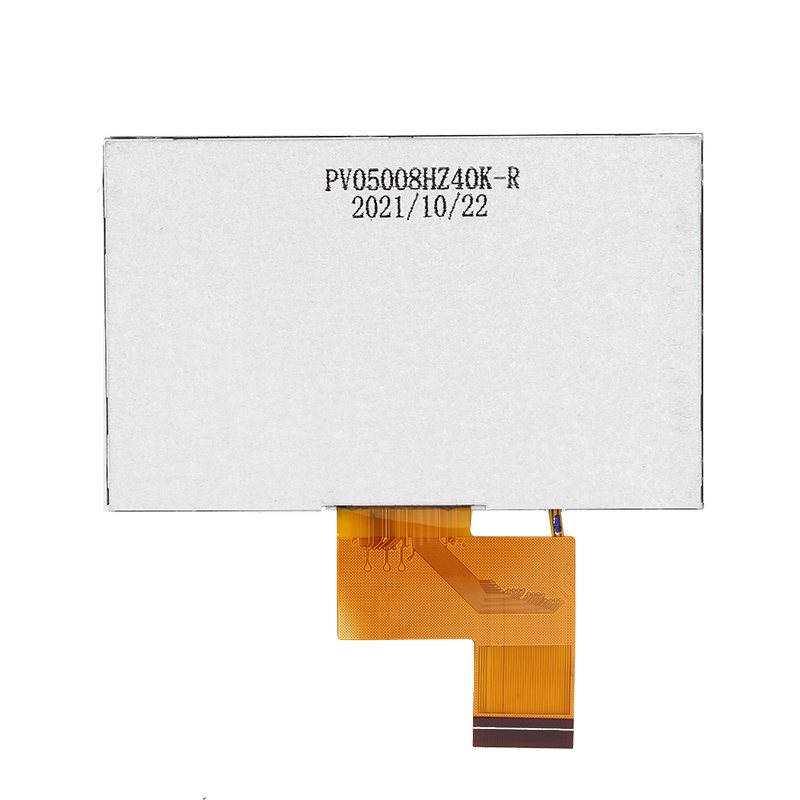

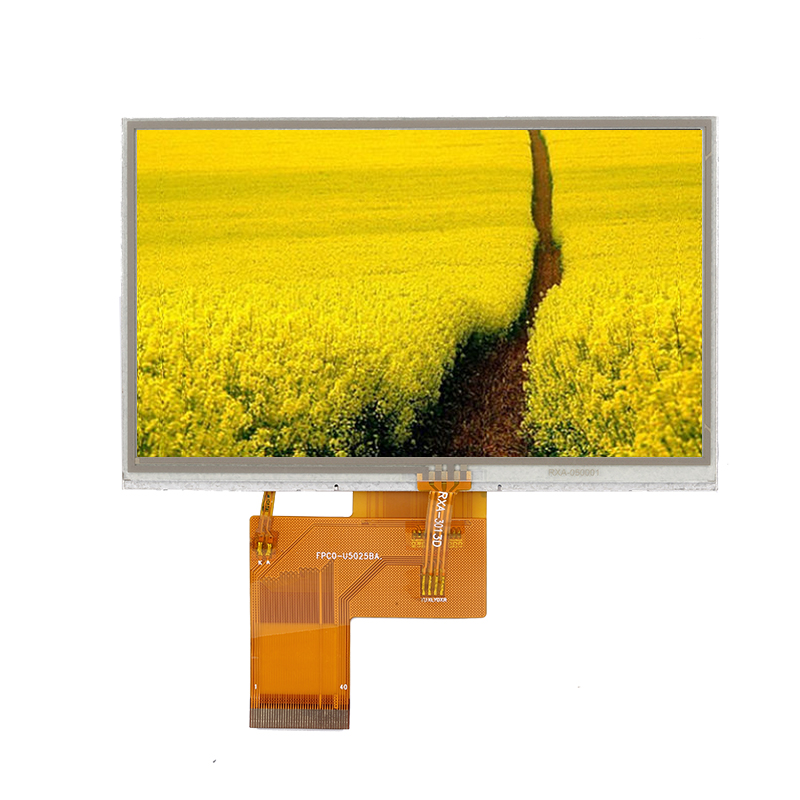

A diagonal size 5.0 inch TFT LCD module
| Item | High brightness 5.0 inch TFT 800×480 module display |
| Model No. | PV05018Y0140U |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.80*3.00 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS Interface |
| Backlight | 8*3LED |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | With/without capacitive touch screen |
| Application | Outdoor self service Kiosks, Motorcycle or Scooter Dashboard,Gas pump,EV charging station, GPS devices |
For product pricing,customization,or other inquiries:
Share to:
- 5.0 inch TFTdisplay
- 800*480 /WVGA
- Stable supply
- Full View angle
- LVDSInterface
- 1000nits brightness
- With/Without Capacitive touch
- Outdoor use:Outdoor self service Kiosks,Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS devices, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays
