Capacitive touch 7 inch 1024×600 resolution TTL/RGB interface IPS LCD module

Item 7 inch 1024×600 ips display
Model No PV07026LZR50B
Resolution 1024×600
Outline Dimension 164.90(W)*100.00(H)*4.98(T)
Active Area(mm) 154.21(W)*85.92(H)
Brightness 450nits / 1000nits
Viewing Angle All
Interface TTL / RGB
PIN 50
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Touch capacitive touch screen
Board HDMI board

For product pricing,customization,or other inquiries:

Share to:

7 inch 1024×600 ttl/RGB interface IPS 450NITS brightness LCD display with capacitive touch

1. PV07026LZR50B mainly application for  Industrial, medical equipment.
2. It with IPS/ All/ Wide viewing angle, 1024×600 resolution , 450nits/1000 nit brightness ,TTL/RGB interface , existing capacitive and  HDMI board to to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement .
I4. t is A grade product , the good quality well use for Industrial ,medical application. And it have EMI protection.

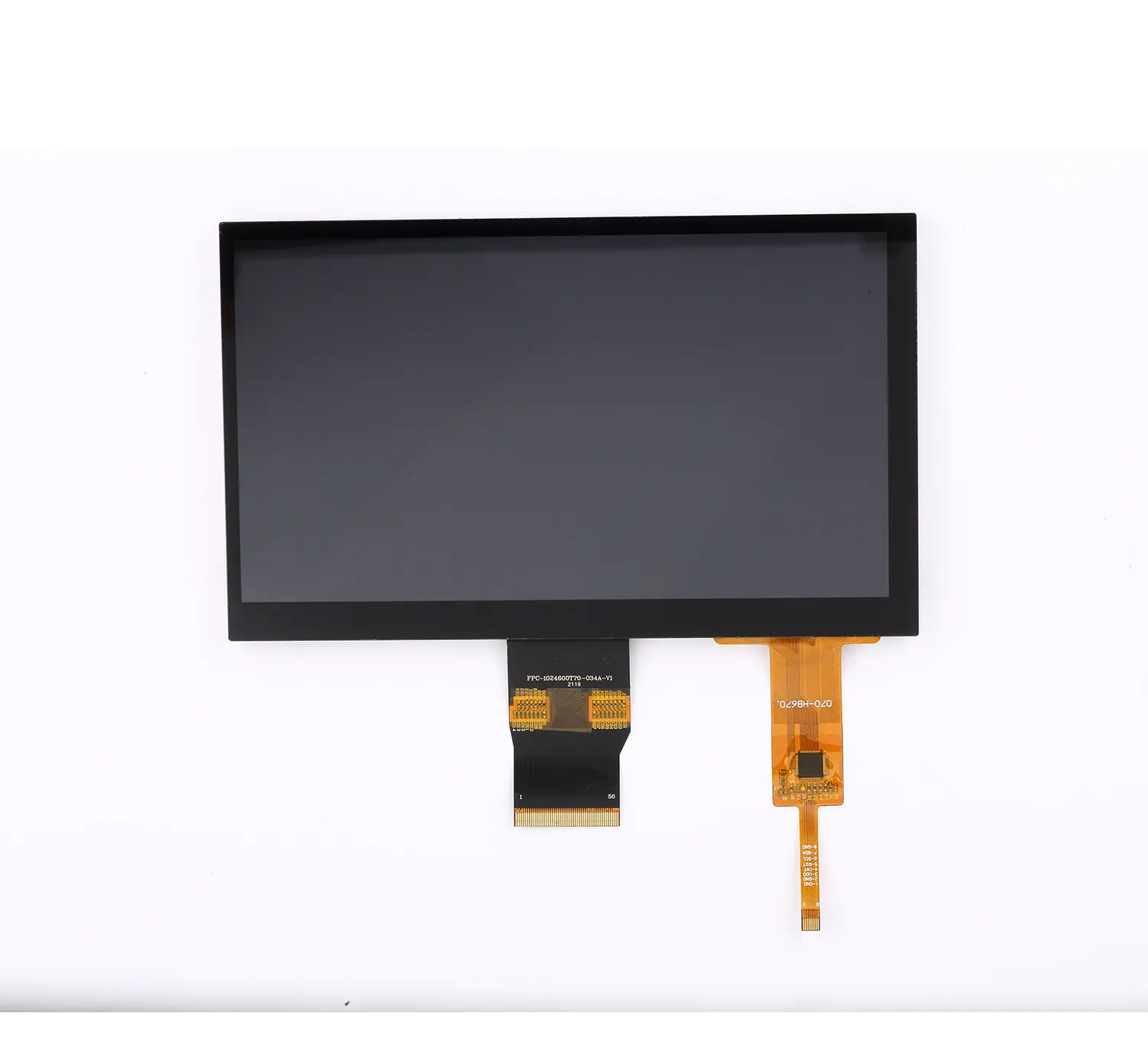

7 inch 1024×600 all view LCD display front view

PV07026LZR50B-C front

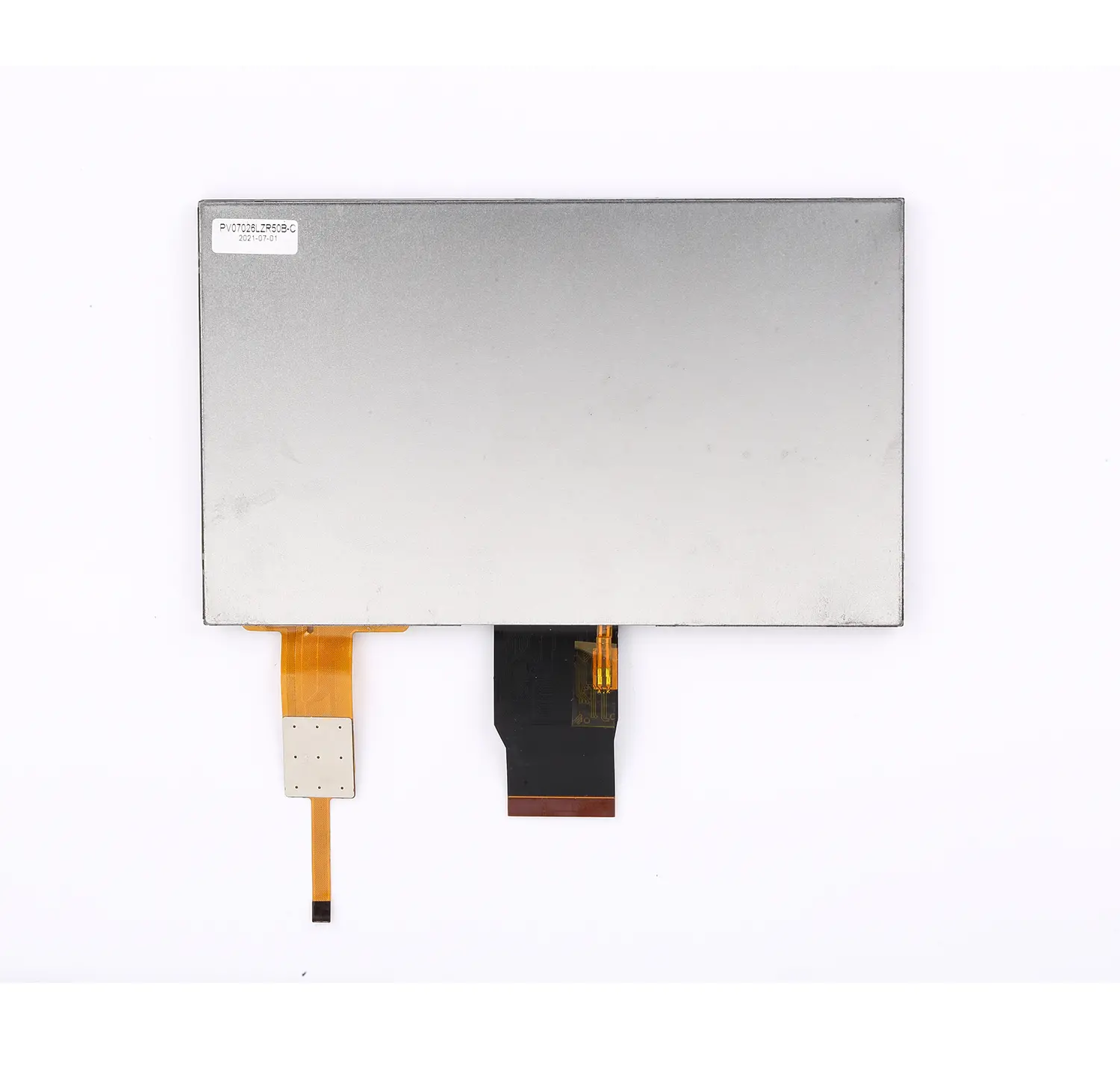

7 inch IPS with capacitive touch LCD back view

PV07026LZR50B-C back

7 inch 1024×600 screen with HDMI boardRGB interface 7 inch 1024x600 resolution lcd module

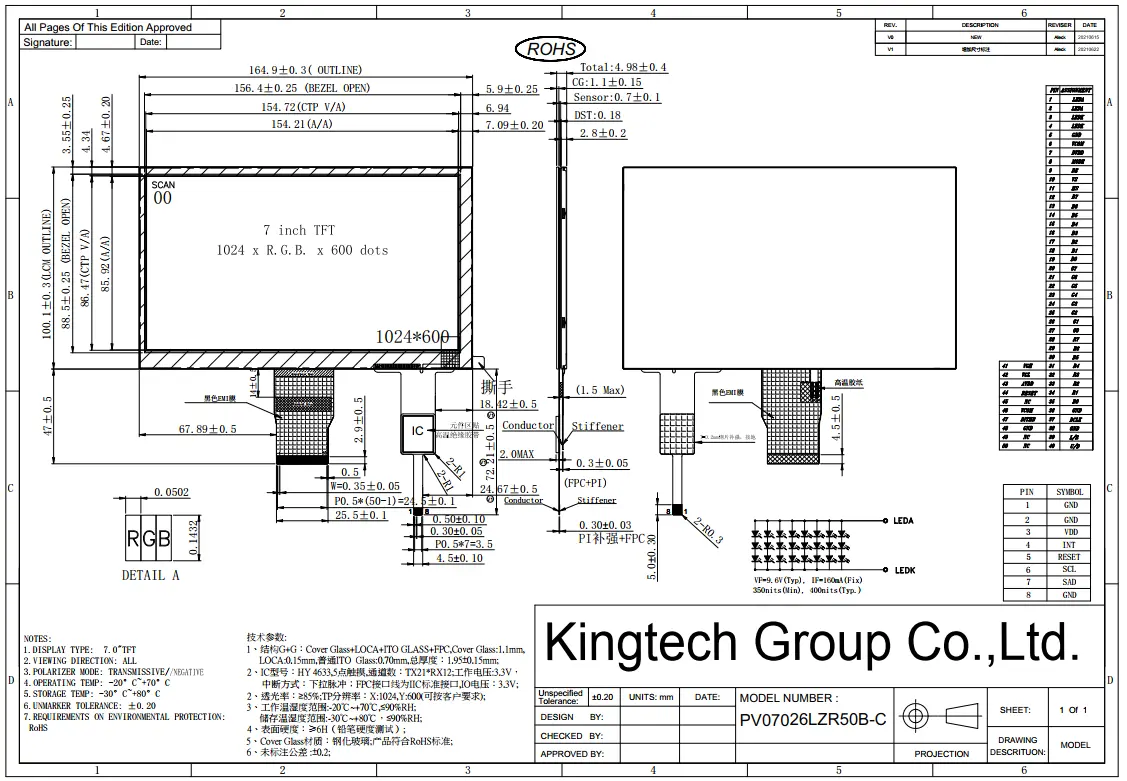

7” capacitive touch screen Machine Drawing

机械图

New Tab content 3

RGB interface 7 inch 1024x600 resolution lcd moduleRGB interface 7 inch 1024x600 resolution lcd module
