Custom cog multi touch 4.3 lcd screen
| Item | 4.3 inch 480×272 rgb LCD display |
| Model No | PV043WQ-CTNC4001 |
| Resolution | 480×272 |
| Outline Dimension | 105.5*67.1*2.95 |
| Active Area(mm) | 95.05*53.86 |
| Brightness | 800nits |
| Viewing Angle | 12 O’ clock |
| Interface | 24-Bit Parallel RGB |
| Driving IC | HX8257A |
| PIN | 40 |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch | capacitive/ resistive touch |
For product pricing,customization,or other inquiries:
Share to:
4.3 inch 480×272 resolution RGB interface 1000nits brightness LCD isplay
1. PV043WQ-CTNC4001 mainly application for Industrial ，medical equipment .
2. It with 480×272 resolution , 800nit high brightness , 24-Bit Parallel RGB interface, HX8257A driver IC , existing capacitive touch and resistive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application. And it is sunlight readable product, can be well used for both indoor and outdoor.

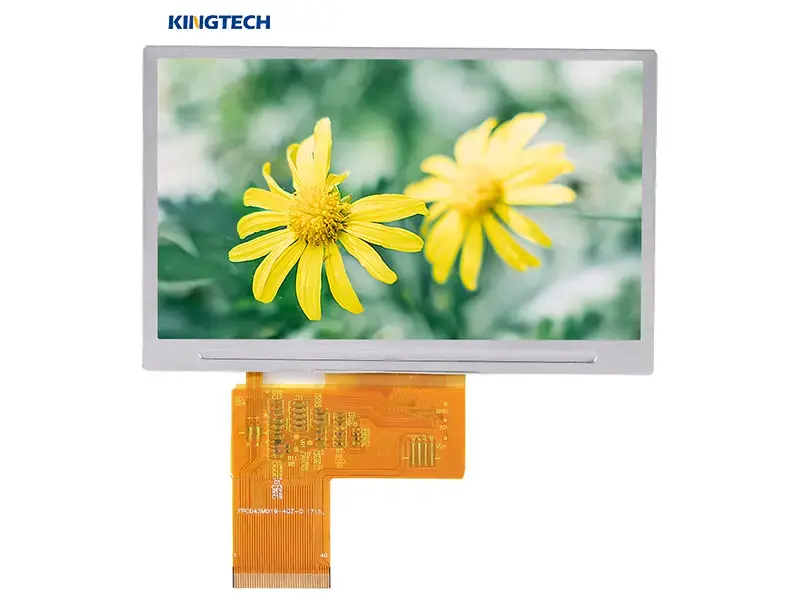

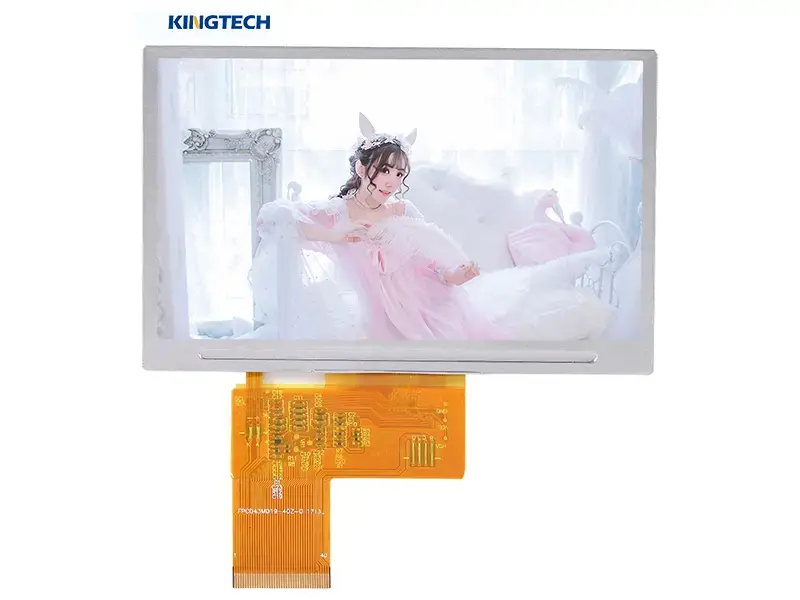

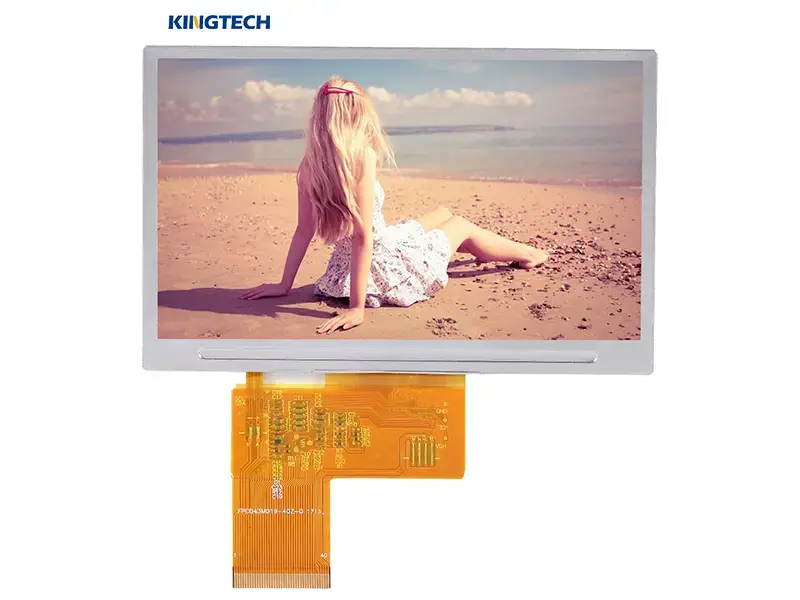

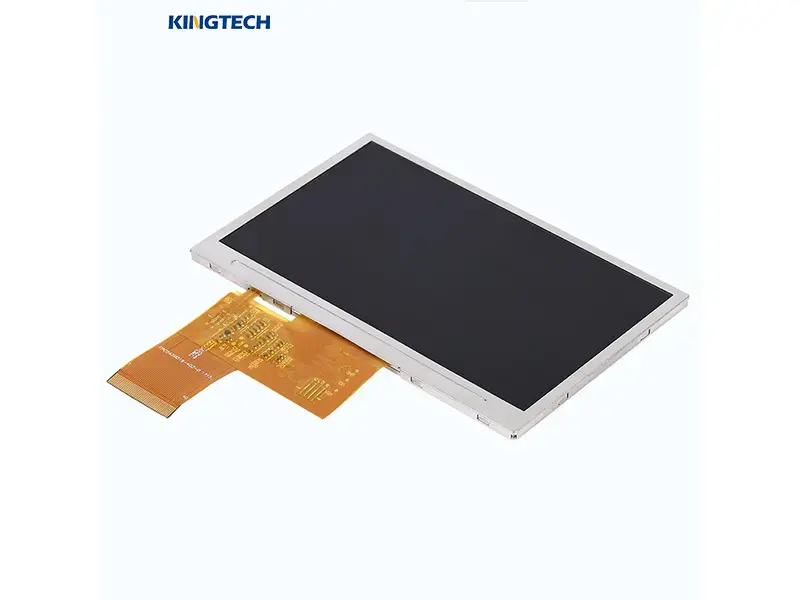

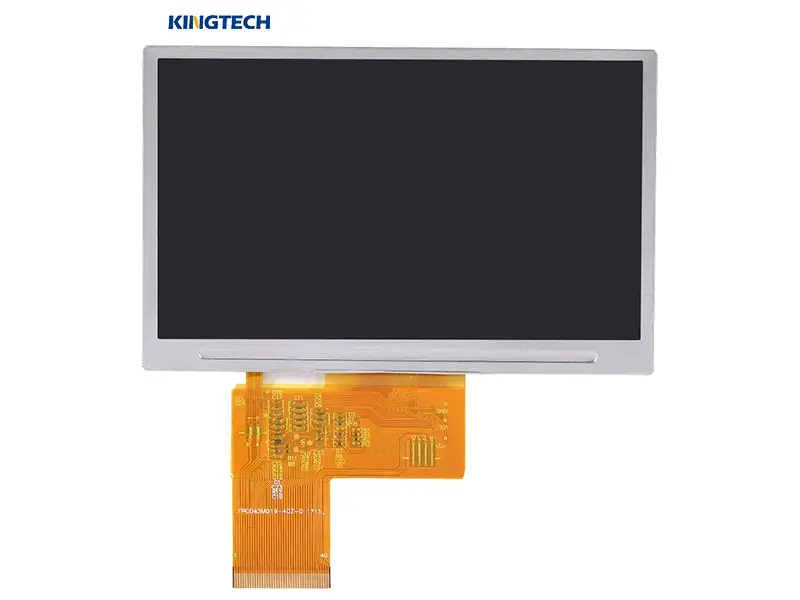

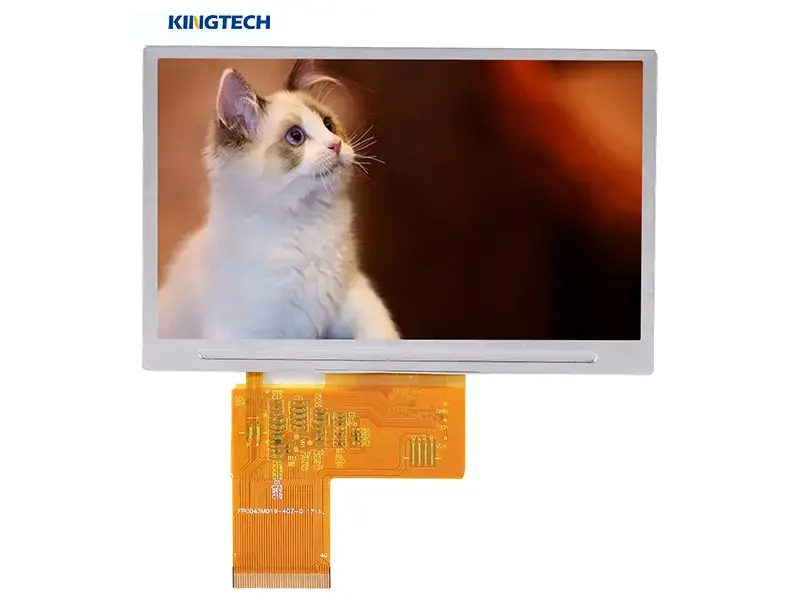

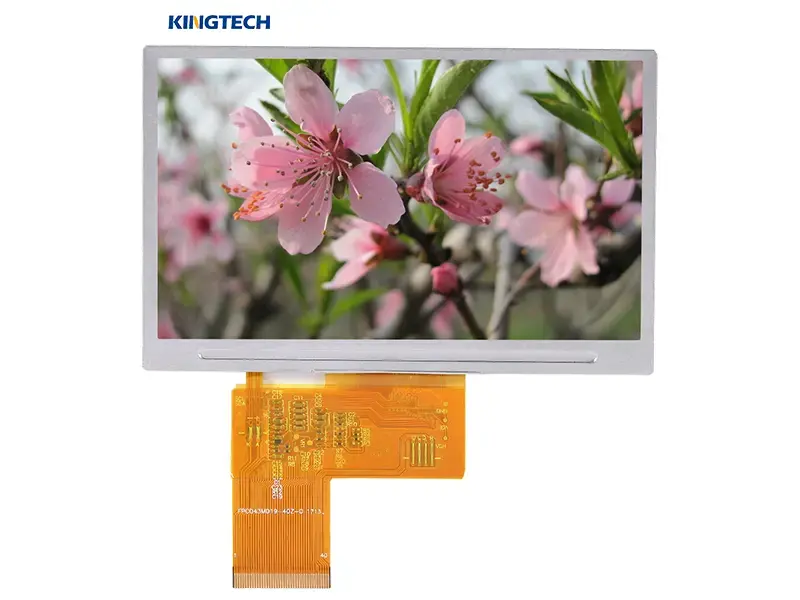

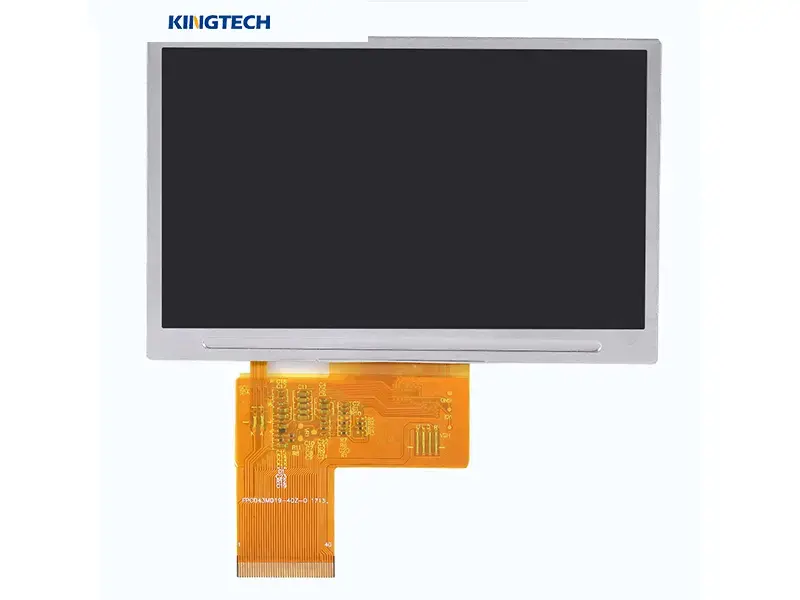

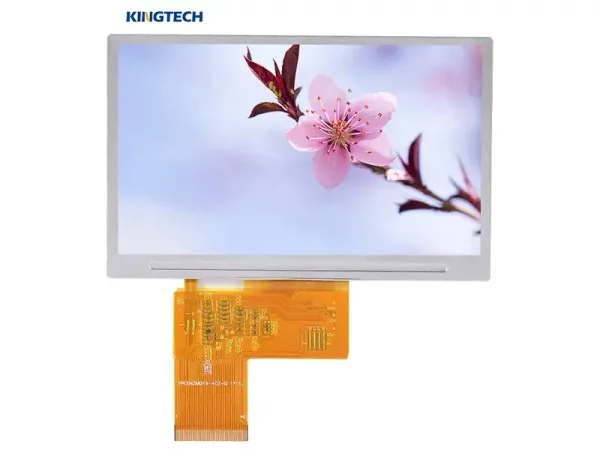

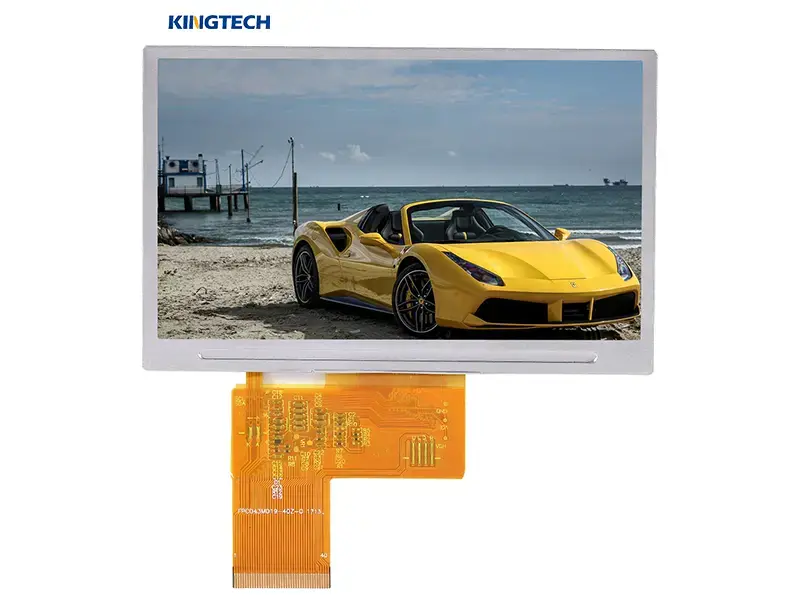

4.3 inch 480×272 sunlight readable LCD display front view

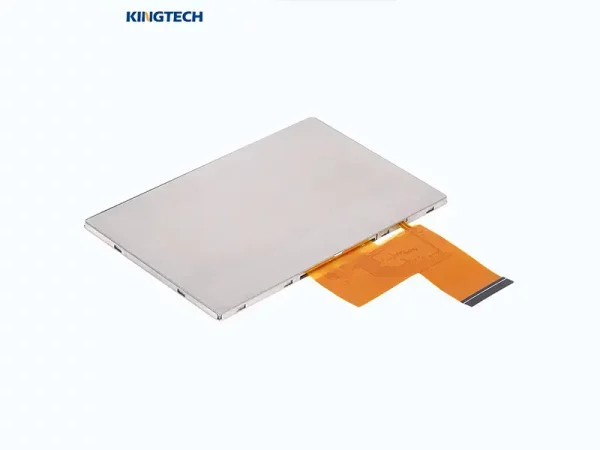

4.3 inch 480×272 sunlight readable LCD display back view

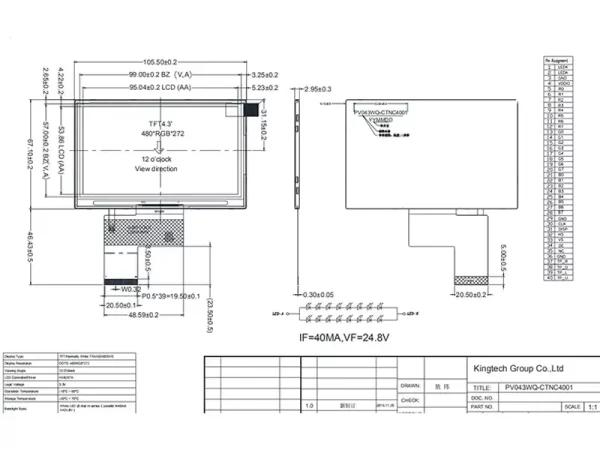

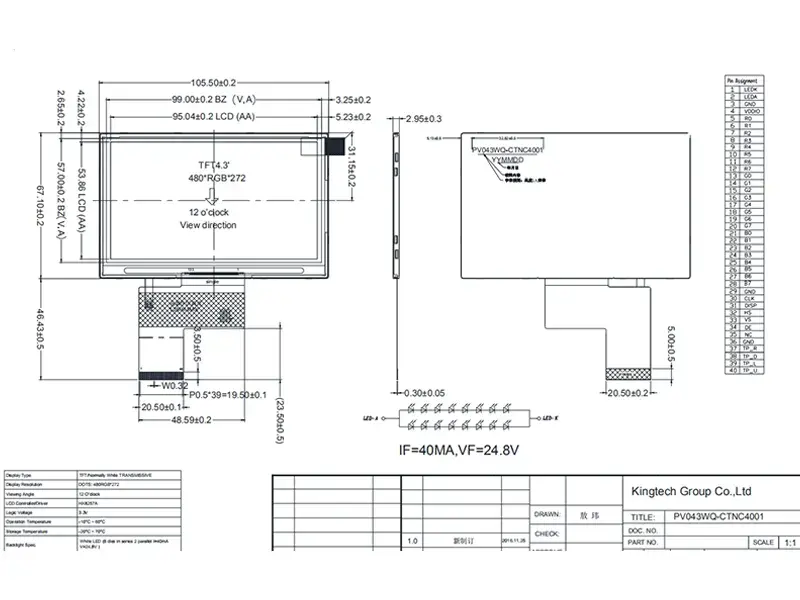

4.3 inch 480×272 sunlight readable LCD display Machine Drawing
