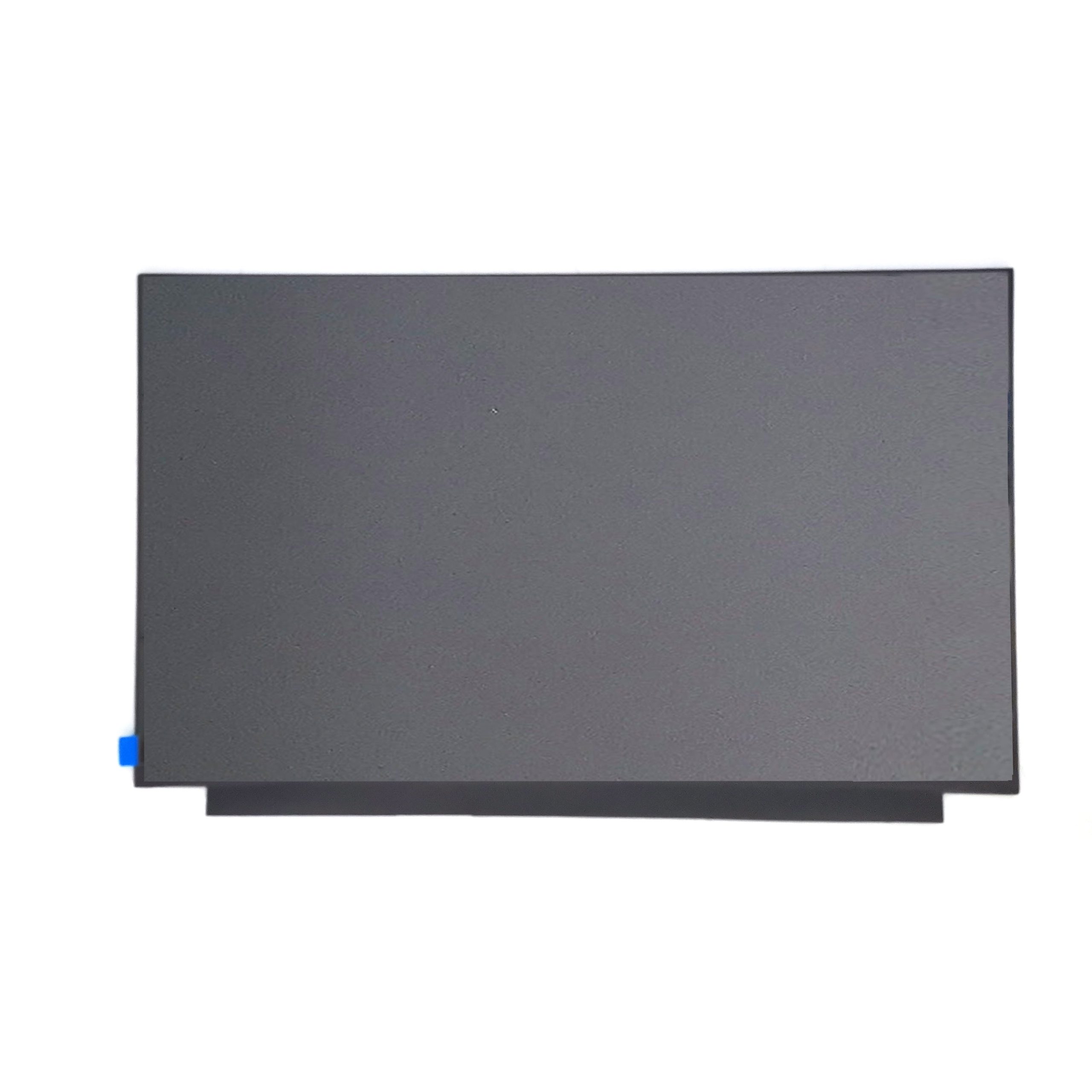

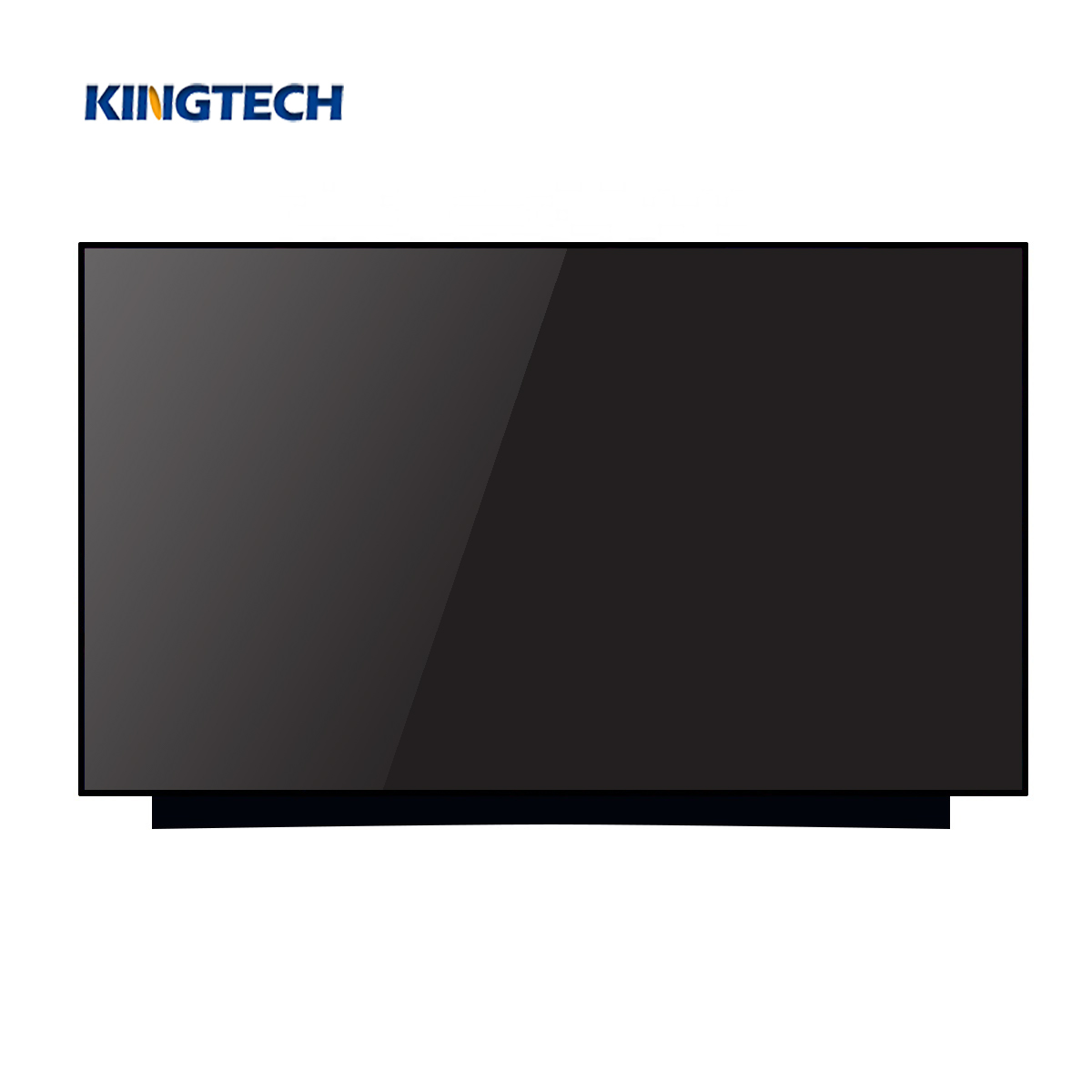

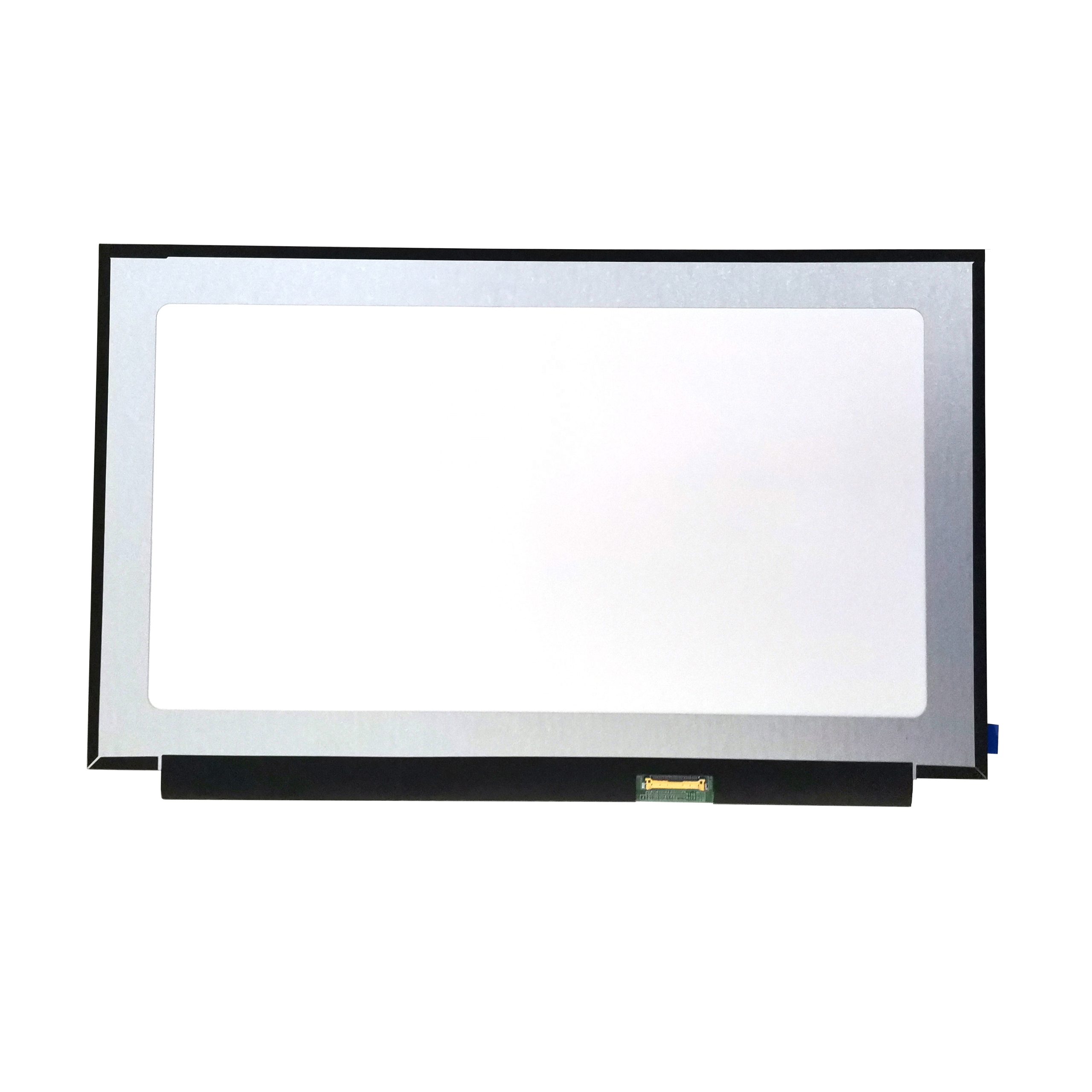

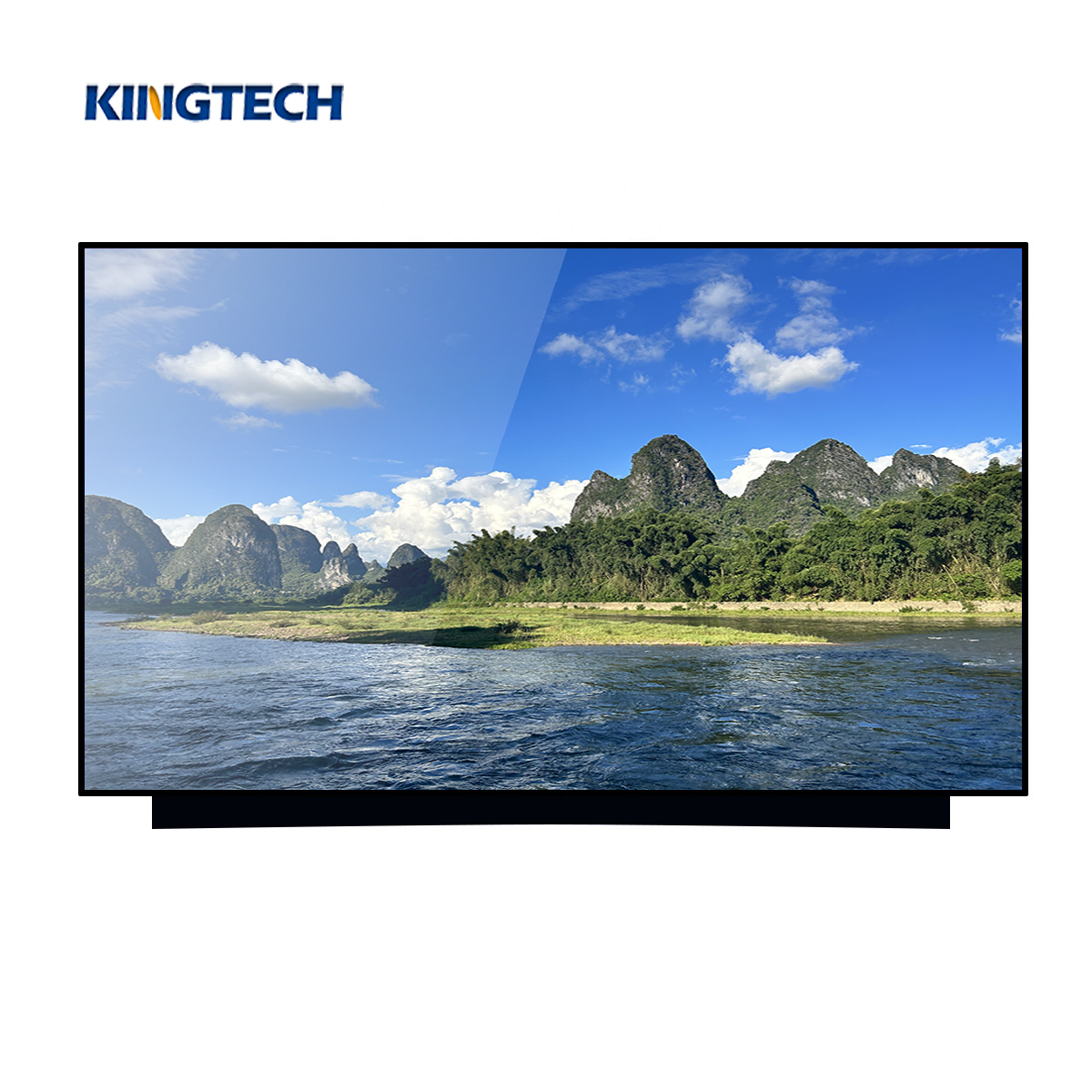

Factory direct sales 13.3 inch TFT LCD module
| Item | 13.3 inch IPS 1920*1080 TFT display |
| Model No. | PV0133012W0230N |
| Resolution | 1920*1080 |

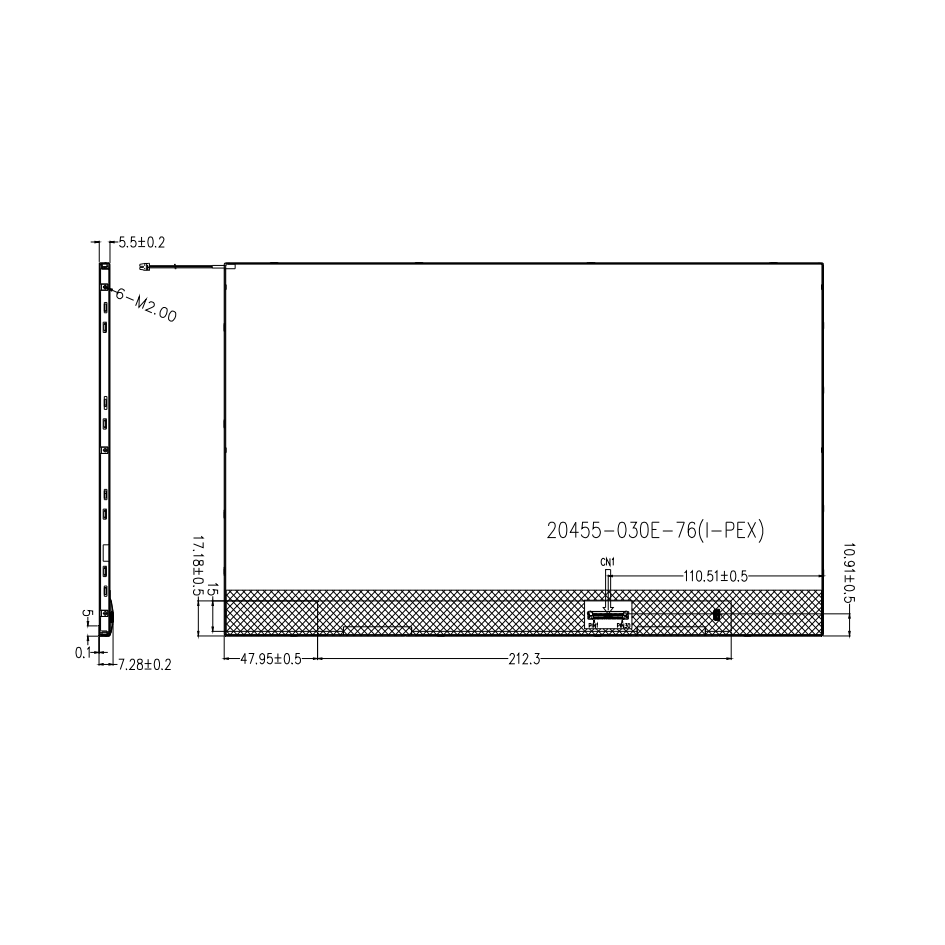

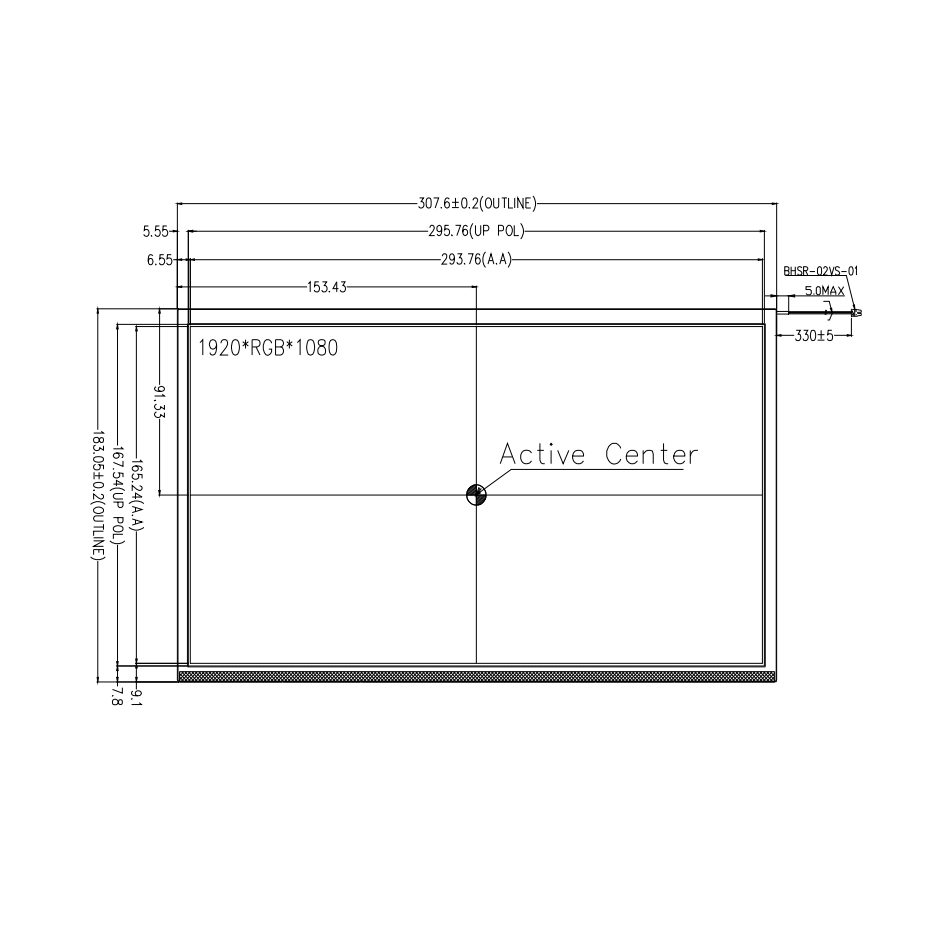

| Outline Dimension (mm) | 307.60*183.05*5.5 |
| Active Area (mm) | 293.76*165.24 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | eDP |
| Backlight | 9*6 LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 13.3 inch TFT display
- 1920*1080
- Stable supply
- IPS/Full/Wide/All viewing angle
- eDP interface
- 1000nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
