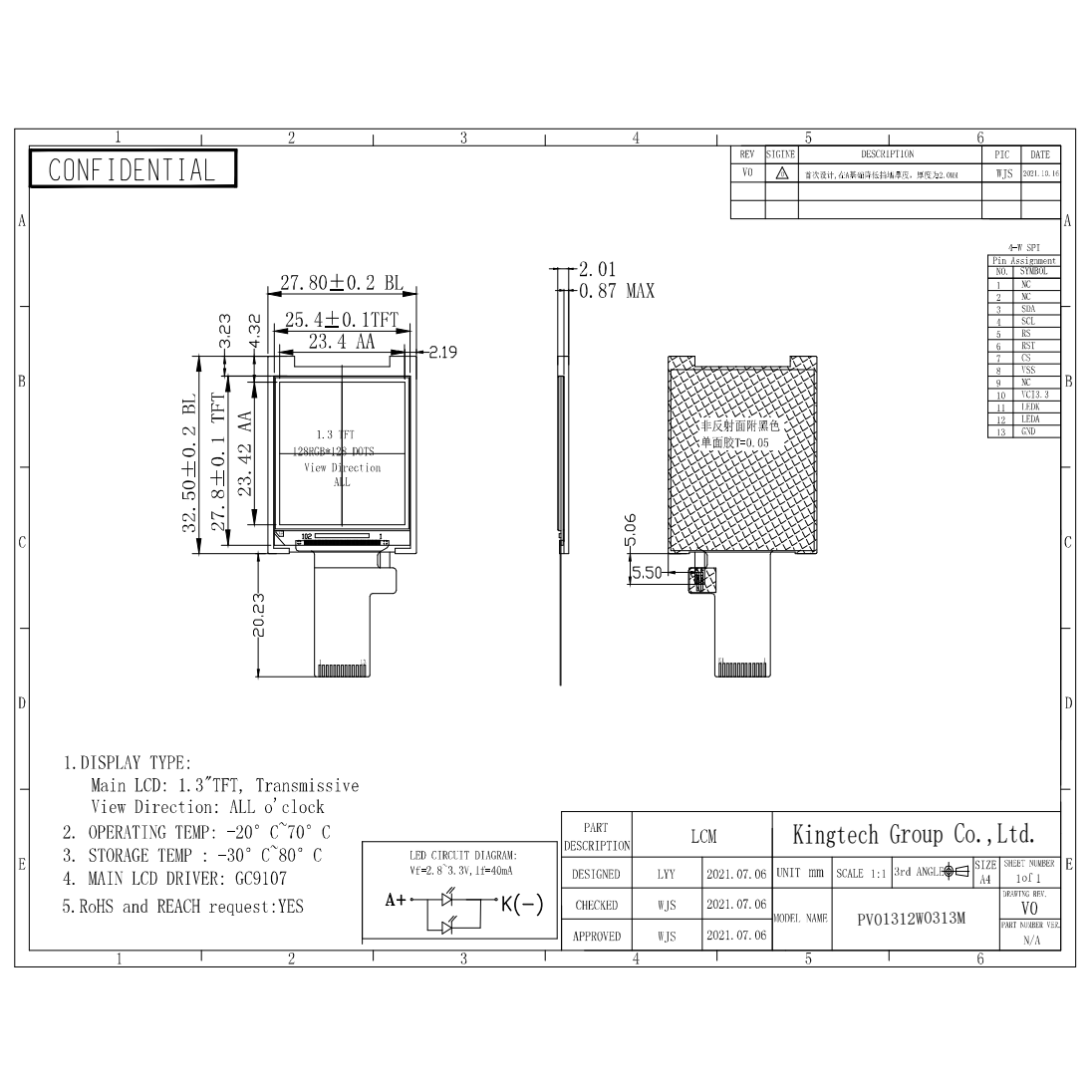

Kingtech 1.3inch 128×128 resolution TFT LCD display
| Item | 1.3 inch 128×128 SPI interface LCD display |
| Model No. | PV01312W0313M |
| Resolution | 128*128 |
| Outline Dimension (mm) | 27.8*32.50*2.0 |
| Active Area (mm) | 23.42*23.42 |
| Viewing Angle | IPS |
| Brightness | 240nits |
| Interface | 4 wire SPI |
| Backlight | 1*2LEDs |
| Driving IC | GC9107 |
| PIN No. | 13 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- Small LCD display
- IPS /Wide/All/Free viewing angle
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
- Square shape
