Kingtech 10.1 inch 1200*1920 TFT display MIPI interface

Technical Specifications

  • Display Size:10.1 inches
  • Resolution:1200×1920 (WUXGA)
  • Display Type:IPS TFT LCD
  • Brightness:850 nits
  • Viewing Angle:All-direction viewing
  • Interface:MIPI
  • Backlight:5×8 LED
  • PIN Count:40

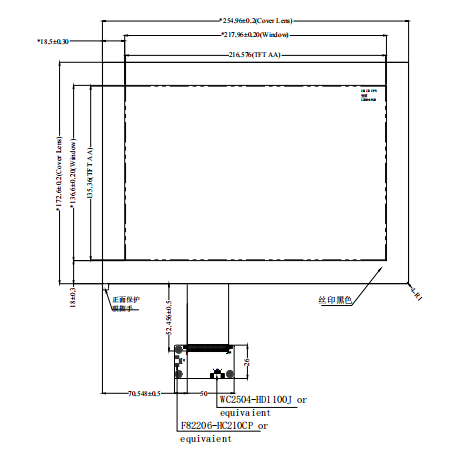

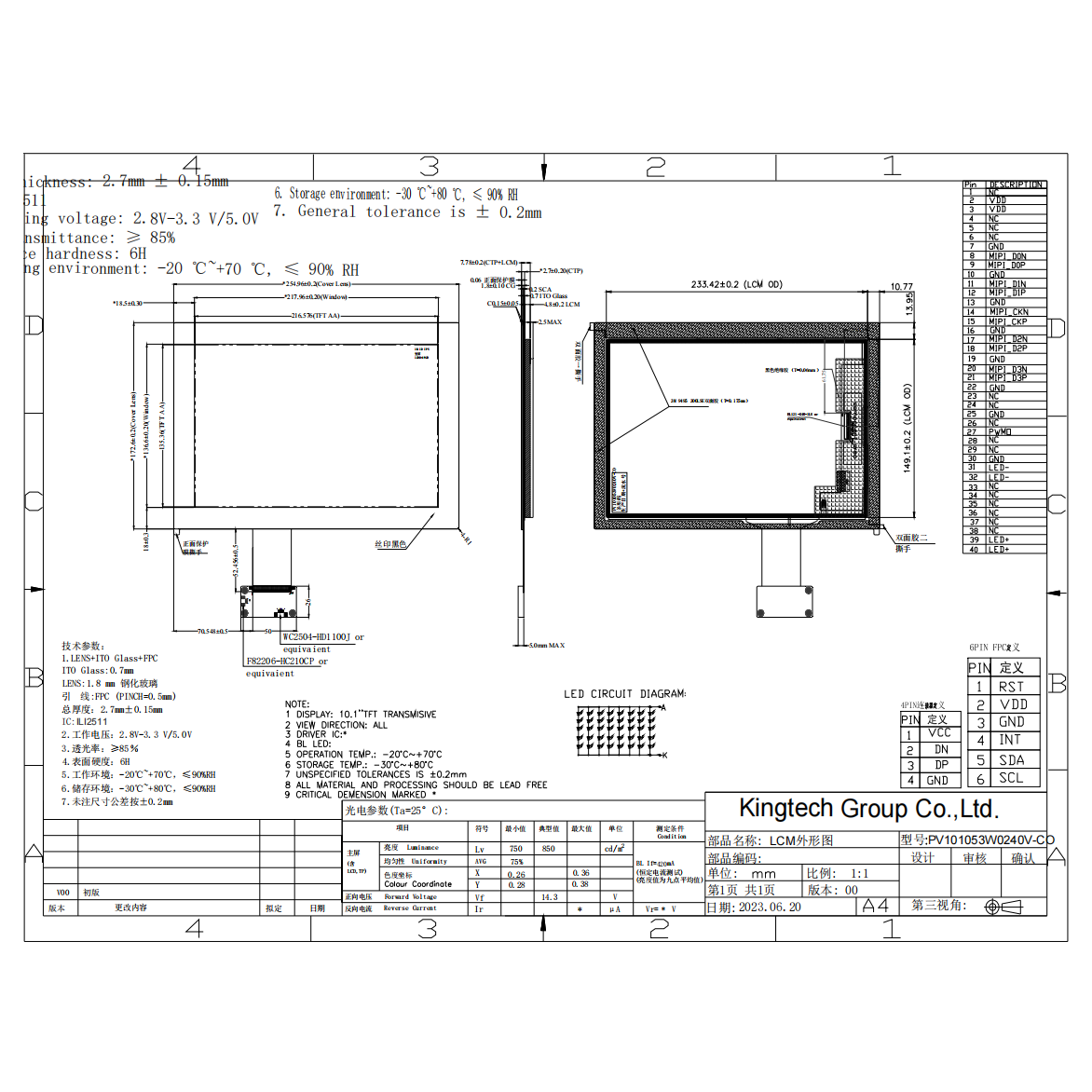

  • Outline Dimension:96×172.6×7.78 mm
  • Active Area:36×216.58 mm
  • Operating Temperature:-20°C to 70°C
  • Storage Temperature:-30°C to 80°C
  • Touch Screen:Customizable resistive or capacitive touch options

Key Features

High-Resolution IPS Display: 1200×1920 pixels for ultra-clear and detailed visuals
Superior Brightness: 850 nits for excellent readability in bright environments
Wide Viewing Angles: IPS technology ensures consistent color and clarity from all directions
MIPI Interface: High-speed data transfer for smooth performance
Customizable Touch Options: Supports both resistive and capacitive touch screens
Rugged & Reliable: Wide operating temperature range (-20°C to 70°C) for industrial durability

For product pricing,customization,or other inquiries:

Share to:

Product Overview

The Kingtech 10.1-inch IPS TFT display is a high-resolution display module designed for industrial, medical, and consumer electronics applications. With a 1200×1920 (WUXGA) resolution, it delivers sharp images, vibrant colors, and wide viewing angles, making it ideal for e-bikes, handheld devices, medical equipment, and industrial control systems.

Equipped with MIPI interface for high-speed data transmission, this module ensures smooth and efficient display performance. The 850 nits brightness allows excellent readability even in outdoor and high-light environments. The display also supports customizable resistive and capacitive touch options, making it adaptable for different interactive applications.

Applications

The Kingtech 10.1-inch IPS TFT LCD module is widely used in:

E-Bike Displays – High-visibility dashboards and control panels
Medical Equipment – Diagnostic screens, patient monitoring systems
Industrial Control Systems – HMI panels, automation displays
Handheld Devices & POS Systems – User-friendly interactive displays
Consumer Electronics – Smart home control panels, multimedia screens


Customization & Bulk Orders

Kingtech offers OEM/ODM customization for FPC, cover glass, touch panels, and other components. We provide flexible MOQ options and long-term supply stability for industrial customers.

Contact us today for pricing, samples, and custom solutions!
